Thread: SLS Components

That in your pic is incomplete... You can see that part at nr 13 here Allbrit.de - Ersatzteile fur LAND ROVER & MG ROVER , description from RAVE:

Air intake/Exhaust silencer
The air intake/exhaust silencer is located on the outside of the left hand chassis longitudinal, behind the air supply
unit. The silencer is an integral part of the SLS air harness and cannot be serviced individually.
The intake and exhaust air to and from the compressor passes through the silencer. The plastic moulded silencer has
two chambers. One chamber reduces system exhaust noise and the other dampens intake air pulses produced by
the compressor.

Mine has the filter in the cavity of the upper rear left pillar tail light.

Originally Posted by Roverlord off road spares

Mine has the filter in the cavity of the upper rear left pillar tail light.

Can you supply the complete hose set as pictured?

Be aware that the filter is not part of that air harness, it's separate part as you can see nr.9 in the parts link

Originally Posted by sierrafery

Be aware that the filter is not part of that air harness, it's separate part as you can see nr.9 in the parts link

I've got the filter and coupling but the previous owner just cut/hacked all the lines when removing the sls system, so should only need the harness, new bags and I'll probably get a service kit for the compressor while its out of the car.

Originally Posted by Lemo

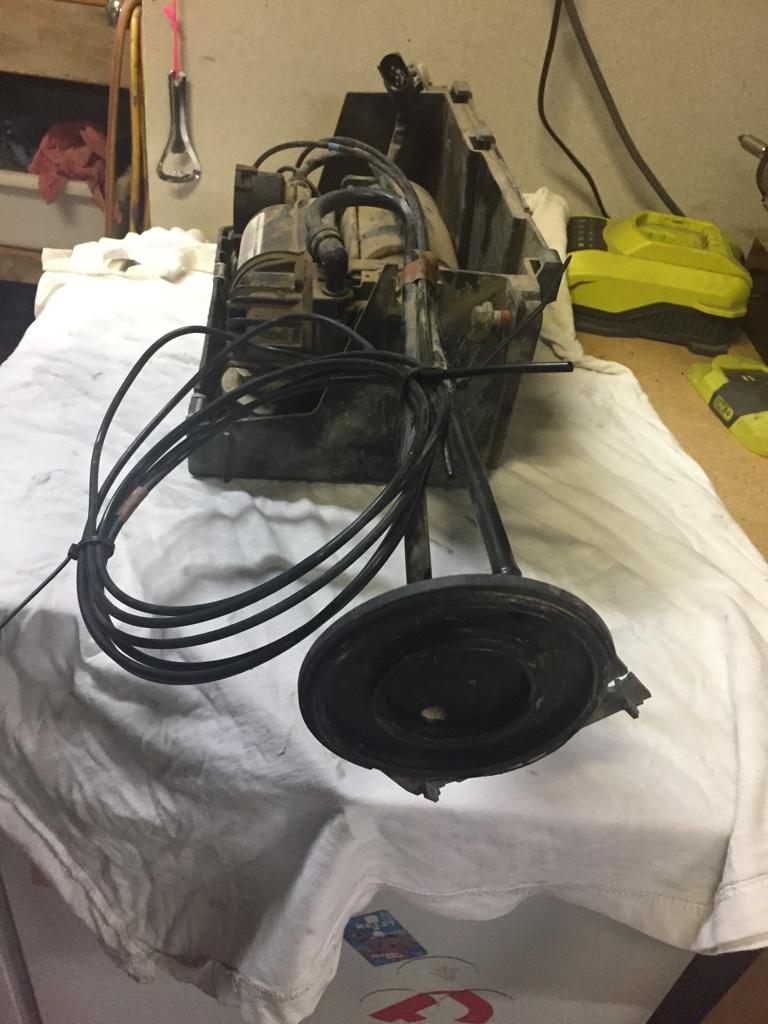

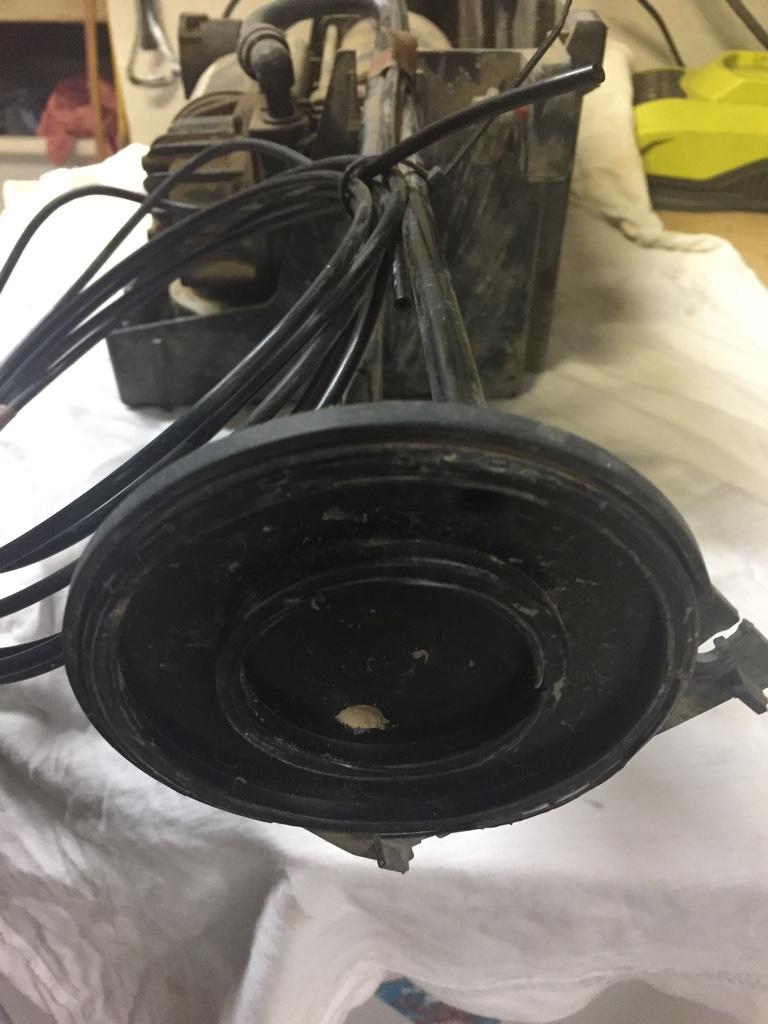

Reinstalling the SLS system in my D2 2002 that was removed but previous owner. Currently running springs and wanting to go back to SLS


What's this part go to??
Looked on rave and microcat can't find the details??

Anyone around Newcastle willing to let me have a gander at the truck with SLS to see how it's installed.

Sent you a pm

He may have also disabled the sls with a nanocom or similar.It is just a tick box type thing.

you could (are using?) push-in connectors to rejoin new to old airline?
