Thread: Fog Light / driving light conversion

  1. 13th November 2008, 09:42 AM #1
    timbo72
    timbo72 is offline Fossicker
    Join Date
    Oct 2006
    Location
    Melb, AU
    Posts
    31
    Total Downloaded
    0

    Question Fog Light / driving light conversion

    Hi all,
    just wondering if anyone knows, can the fog lights be made to come on with the high beams. Currently I have driving lights running through a relay triggered by the fog light wiring. Problem is that they can only be turned on with park lights and low beam. I know it is not currently ADR compliant.
    My car has never had fog lights, but the wiring was there and computer turned on, with factory driving light switch plugged into fog light loom.
    any info would be good.
    thanks
    Timbo
    Reply With Quote Reply With Quote
  2. 13th November 2008, 10:06 AM #2
    Bigbjorn
    Bigbjorn is offline Swaggie Gold Subscriber
    Join Date
    Jul 2006
    Location
    Brisbane, Inner East.
    Posts
    11,178
    Total Downloaded
    0
    The regulations concerning use of fog lights are quite specific. Not to be used in conjunction with headlights, either beam; must be used in conjunction with side lights; and may only be used in conditions of poor visibility.
    URSUSMAJOR
    Reply With Quote Reply With Quote
  3. 13th November 2008, 10:22 AM #3
    Scouse's Avatar
    Scouse
    Scouse is offline OldBushie Gold Subscriber
    Join Date
    Jan 1970
    Location
    Douglas Park, NSW
    Posts
    9,347
    Total Downloaded
    0
    Brian, the guy doesn't have fog lights fitted. He's hooked up his driving lights to the fog light circuit.

    Timbo, you just need to find out where the fog light wire picks up the low beam circuit & then change the wire to the high beam circuit (which will be nearby).

    What sort of car are we talking about here?
    P38 maybe from not having fog lights but having the computer turned on.
    Scott
    Reply With Quote Reply With Quote
  4. 13th November 2008, 10:46 AM #4
    timbo72
    timbo72 is offline Fossicker
    Join Date
    Oct 2006
    Location
    Melb, AU
    Posts
    31
    Total Downloaded
    0

    Fog Light / driving light conversion

    Sorry guys,
    forgot to mention it is a 2000 model D2.
    I know the computer can be programmed for different light settings
    for different overseas markets, just wondering if the fog lights can be programmed to come on with high beams.
    The RAVE manual is a bit ambiguos about this.
    thanks timbo
    Reply With Quote Reply With Quote
  5. 13th November 2008, 10:53 AM #5
    Disco_owner's Avatar
    Disco_owner
    Disco_owner is offline YarnMaster Subscriber
    Join Date
    Dec 2006
    Location
    NSW , Pennant Hills
    Posts
    3,477
    Total Downloaded
    0
    That's how my driving lights( spot lights ) are hooked up at the moment, to Fog light cct ,with with headlights on high beam I can trigger the driving light to switch on/off using the fog light switch on dash.
    Reply With Quote Reply With Quote
  6. 13th November 2008, 06:40 PM #6
    Urban Panzer's Avatar
    Urban Panzer
    Urban Panzer is offline Master
    Join Date
    Jul 2008
    Location
    UK
    Posts
    677
    Total Downloaded
    0
    Quote Originally Posted by timbo72 View Post
    Sorry guys,
    forgot to mention it is a 2000 model D2.
    I know the computer can be programmed for different light settings
    for different overseas markets, just wondering if the fog lights can be programmed to come on with high beams.The RAVE manual is a bit ambiguos about this.
    thanks timbo

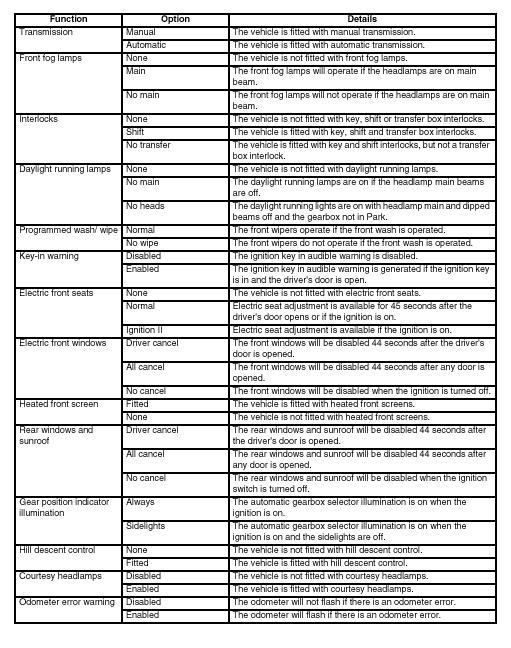

    yes they can, its just a simple configurable option in the BCU My fog lights work with high beam (uk) but I know for a fact that they configured not to in the US

    Reply With Quote Reply With Quote
