    nanocom one cable wiring

    hi

    i have managed to aqquire a nanacom one with a damaged cable that the previous owner decided it would be fun to fiddle around with when it stopped working so well.

    i am hoping if someone can tell me the wiring standard for the RJ45 connector of the yellow cable. the nanocom website tells you how to wire it onto the OBD connector but without the other end the information its not so useful.

    can anyone help out? thanks
    Reply With Quote Reply With Quote
  2. 1st February 2014, 07:58 AM #2
    OffTrack's Avatar
    OffTrack
    OffTrack is offline YarnMaster
    Join Date
    Feb 2011
    Location
    Brunswick, Victoria
    Posts
    3,778
    Total Downloaded
    0

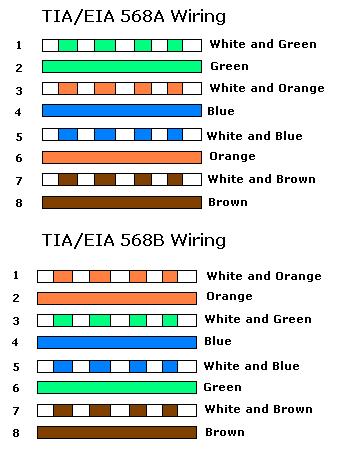

    There are a couple of different standards for the cat5 cables.
    I didn't realise this when I made up a cable for the One I used to own, and it didn't work first time



    It's a few years since I sold the One, but I have a dim recollection that the colour code refers to scheme "A" while the cables Jaycar sold at the time were wired to scheme "B".

    Paul
    Reply With Quote Reply With Quote
  3. 9th February 2014, 08:00 PM #3
    bluerazor's Avatar
    bluerazor
    bluerazor is offline Fossicker
    Join Date
    May 2009
    Posts
    53
    Total Downloaded
    0
    Just Checked on mine and it's 568B wired
