  1. 1st November 2012, 11:29 AM #131
    wagoo
    wagoo is offline Wizard
    Join Date
    Oct 2010
    Location
    Dixons Creek Victoria
    Posts
    1,533
    Total Downloaded
    0
    Quote Originally Posted by isuzurover View Post
    You have been reading Dave's tirade of lies about the G-wagons???
    Yes Ben I have. and I suspected the accuracy of those claims when Dave made them a year or so ago.

    I don't really understand the fitment of drum brakes though, unless it is to insure at least some degree of braking performance when reversing back down steep gradients in the event of engine failure causing loss of vacuum assist?
    Does the 4x4 rear suspension feature multiple links, or travel limiting, antisquat inducing radius arms like the older G wagons?
    You don't happen to have a photo depicting the 6x6 thru drive for the rearmost axle?
    Bill.
    Reply With Quote Reply With Quote
  2. 1st November 2012, 04:16 PM #132
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,495
    Total Downloaded
    0
    Tirade of lies? You mean the ones that are turning out to be surprisingly accurate?.

    The drum brakes are on the back to enable a full size park brake that can hold the vehicle on a maximum rated slope at rated gvm.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
  3. 1st November 2012, 04:17 PM #133
    waz's Avatar
    waz
    waz is offline Master
    Join Date
    Mar 2008
    Location
    Toowoomba
    Posts
    449
    Total Downloaded
    0
    Just FYI the leaf spings was not a rumour started here.

    As with all international W461 G-Wagons, the front suspension is made up of MacPherson struts and coil springs, the rear end has leaf springs, while the steering is a recirculating ball design.
    from Mercedes-Benz G-Class G300 Military - Mercedes G Force marches in | GoAuto

    edit - this aticle is dated 07/09/2012

    Waz
    Reply With Quote Reply With Quote
  4. 1st November 2012, 05:37 PM #134
    MBZ460
    MBZ460 is offline Master
    Join Date
    Oct 2011
    Location
    Brisbane
    Posts
    158
    Total Downloaded
    0
    The article is wrong.
    Reply With Quote Reply With Quote
  5. 1st November 2012, 05:53 PM #135
    goingbush's Avatar
    goingbush
    goingbush is offline ForumSage
    Join Date
    Jul 2011
    Location
    Yarrawonga, Vic
    Posts
    6,568
    Total Downloaded
    0

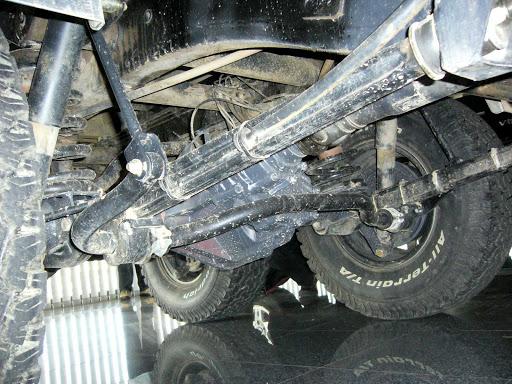

    a few more pics







    Reply With Quote Reply With Quote
  6. 1st November 2012, 06:11 PM #136
    wagoo
    wagoo is offline Wizard
    Join Date
    Oct 2010
    Location
    Dixons Creek Victoria
    Posts
    1,533
    Total Downloaded
    0
    Thanks for the pics Don. Thru drive appears to be via Morse chain to pinion on leading diff.
    Blanking plate on left side axle tube looks like where the axle difflock actuator would fit. Have they deleted the difflock for the leading axle?
    No rear suspension load sharing arrangement that I can detect. Radius arms and heavy swaybars would severely restrict unladen interaxle articulation too I would suspect. Better than a Perentie 6x6, but don't think cross country performance was high up on list of priorities.
    Bill.
    Reply With Quote Reply With Quote
  7. 1st November 2012, 08:51 PM #137
    slug_burner
    slug_burner is offline TopicToaster Gold Subscriber
    Join Date
    Jul 2007
    Location
    Melbourne
    Posts
    4,024
    Total Downloaded
    0
    Drum brakes for the park brake on slope at gvm.
    Coils not leaf, Perentie 6x6 had rear leafs.
    No load sharing on the rear axle group.

    Dave might know given he has been trained. Are the diff locks subject to computer wizardry to overcome Bill's concern of poor selection practice?
    Reply With Quote Reply With Quote
  8. 1st November 2012, 09:39 PM #138
    wagoo
    wagoo is offline Wizard
    Join Date
    Oct 2010
    Location
    Dixons Creek Victoria
    Posts
    1,533
    Total Downloaded
    0
    Sorry to be a technical pain tonight, but does anyone have pics showing the links for the rearmost axle of the 6x6? With radius arms on the leading axle, i'm imagining universal joint angles for the rearmost propshaft would get fairly ugly with little articulation unless something quite tricky was done with the rear links.
    Bill.
    Reply With Quote Reply With Quote
  9. 1st November 2012, 09:52 PM #139
    Disco Muppet's Avatar
    Disco Muppet
    Disco Muppet is offline Moderator Gold Subscriber
    Join Date
    Apr 2012
    Location
    Orange, NSW
    Posts
    7,965
    Total Downloaded
    0
    Hey Wagoo, I found this, not sure if it shows you what you need.

    Cheers
    Muppet
    Reply With Quote Reply With Quote
  10. 1st November 2012, 09:59 PM #140
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,495
    Total Downloaded
    0
    Quote Originally Posted by slug_burner View Post

    Dave might know given he has been trained. Are the diff locks subject to computer wizardry to overcome Bill's concern of poor selection practice?
    nope. but the selection/deselection is sequence locked, IE you cant turn on the front lock untill the center and rear is selected and deselecting center turns off all.

    6x6 CDl selection locks the center diff and the power divider (all crown wheels rotate at the same speed) locking the rear engages both rear diff locks (rear 4 turn at the same speed
    Dave
