Thats awsome, what mods are done to get that travel? :eek:
Printable View
https://www.aulro.com/afvb/
Thats awsome, what mods are done to get that travel? :eek:
The front has a 3 link plus panhard and the coil springs are allowed to drop out. What is so striking, is how balanced the front and rear articulation is (notice how level the body stays?)Quote:
Originally Posted by Ace
Bill is a legend. Few other people put as much thought and work into 4wd vehicles. The portal axles are home made, as is the crawler box. He also built Nigel's hybrid landy with forced articulation, which featured in an edition of Australian 4WD Monthly a couple of years ago.
While I don't doubt the skill of building something like that I do think it looks bloody ugly.
Oh and Def-90 rememebr when you said you'd GIVE me your truck ?! Yeah sure, you remember. Sure you do....
Wombat run at City View.
There's probably a tad more droop available at the rear but the front is maxed out.

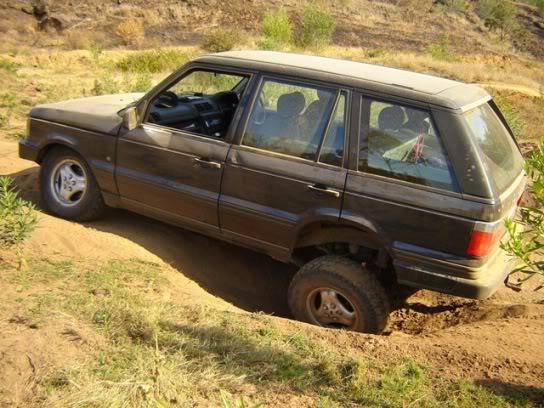

https://www.aulro.com/afvb/images/im...006/09/263.jpg

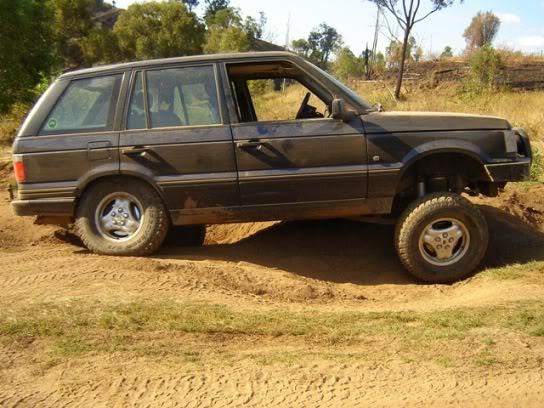

https://www.aulro.com/afvb/images/im...006/09/264.jpg
You want to know the best part?
I'm still running EAS.....:tease:
With some 'minor' modifications, naturally.... :twisted:
Hardy
thats not bad for a p38 hardy :D
thats not bad for anything hardy:D
Hardy - I'd love to know about these mods....
Nothing outrageous really.Quote:
Originally Posted by VladTepes
Arnott Gen III Airsprings, 50mm spacers, custom bumps, custom sensor extensions and dodgey shocks with exacting travel specs.
I've been trying to complete the production version - over halfway there but just can't get around to finalising it.
The front swaybar is disconnected (manually) but currently the Tough Dog Adjustables (front) eliminate it's need on road anyway. Setting 7 or 8 - handles like a slot car. For offroad I use setting 3 or 4 which is plenty floppy. Rears are old fronts which are a little bit floppy too - but overall do not affect the on road handling.
I have custom Bilstein shocks all ready specified, haven't tried them out though.
They should give another 1" or so at the rear, on top of the 1" that's not shown in the pictures.
I used to have Airbag Man rears on the front - gave another 1" droop but they would 'flab' out too much under compression, risk being damaged.
And there's plenty of room for 33"s:D
Hardy
I can see I'm going to have to get a P38 one day...
the thread that Bill's Landy is detailed is here http://forums.lr4x4.com/index.php'showtopic=6428Quote:
Originally Posted by Ace
