Thread: D4 SE 19" rims fitting another Discovery

Originally Posted by Disco4SE

Hi all,
Just wondering if anyone is able to tell me if my D4 19" rims would fit a 1999 model Discovery??

Your feedback would be much appreciated.

Cheers, Craig

Hi Craig,
Unfortunately no!
D2 has 5 x 165mm PCD stud pattern - D3 5 x 120mm

Ian

Bugger. I have someone wanting to buy my SE rims and it appears they won't fit his Disco.

Thanks Owl.

Cheers, Craig

Originally Posted by Owl

Hi Craig,
Unfortunately no!
D2 has 5 x 165mm PCD stud pattern - D3 5 x 120mm

Ian

I don't think that's right.

The D2 has the same PCD as the P38, D3, Sport & current RR.
You will need centralising rings & the matching wheel nuts to fit the later wheels to the early cars though.


I think it's the RRC, Defender & D1 that has the 165mm PCD.

Originally Posted by Scouse

I don't think that's right.

The D2 has the same PCD as the P38, D3, Sport & current RR.
You will need centralising rings & the matching wheel nuts to fit the later wheels to the early cars though.


I think it's the RRC, Defender & D1 that has the 165mm PCD.

Can anyone else confirm this........please?
Cheers, Craig

Google it.

D2:
Bolt pattern | Stud Pattern : LAND ROVER Bolt patterns

D3/4:
Wheel Bolt Pattern Cross Reference Database and Conversion Guide: LAND ROVER*LR3 SE, HSE

Same stud pattern.

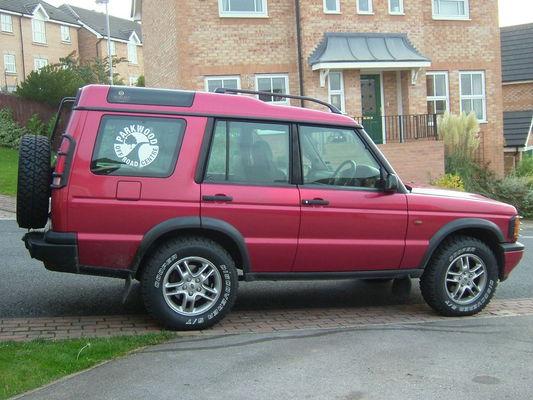

Even a piccy:



From here:
http://www.disco3.co.uk/forum/topic71700.html

They are the same PCD 5x120 the only thing you may look at is the off set

They need spigot rings to centralise them and the correct wheel nuts but other than that they fit. Fleabay is full of spigot rings for P38's, so people can fit the 20" RRS rimz to them.
