    Winch earth strap

    Was thinking about this at lunch time today. If the D3 has large earth studs on each side of the car, why not connect a winch earth strap to the more accessable one in dual battery compartment?.

    Surely earth is earth. Is there a difference?

    Sorry if this seems like an ignorant electrical question?
    Reply With Quote Reply With Quote
  2. 11th December 2014, 03:21 PM #2
    Geedublya
    Geedublya is offline Wizard Silver Subscriber
    Join Date
    Dec 2009
    Location
    Ranelagh, Tasmania
    Posts
    1,543
    Total Downloaded
    0
    Closest to the battery is best for high current draws.
    Fuji white RRS L494 AB Gone
    2023 Ford Ranga
    Reply With Quote Reply With Quote
  3. 11th December 2014, 03:27 PM #3
    winaje's Avatar
    winaje
    winaje is offline Wizard Subscriber
    Join Date
    Jan 1970
    Location
    Wantirna South, Vic
    Posts
    1,459
    Total Downloaded
    0
    I bought one of these plates



    http://www.aulro.com/afvb/d3-d4-rrs/...ml#post2264506

    from Drivesafe for $10 and added a second M8 earth bolt and nut to it, will be earthing the winch to it.
    Regards, Will

    Stornoway Grey '09 D3 TDV6 SE, 2015 TERRITORY Engine at 348k
    LLAMS, FYRLYTS, OL D4 Bar
    Safari Snorkel, D4 hitch, ARB CKMA12
    Reply With Quote Reply With Quote
  4. 11th December 2014, 04:53 PM #4
    Lotz-A-Landies's Avatar
    Lotz-A-Landies
    Lotz-A-Landies is offline Super Moderator Gold Subscriber
    Join Date
    Jul 2006
    Location
    East-South-East Girt-By-Sea
    Posts
    17,662
    Total Downloaded
    1.20 MB
    Personally I would be taking the winch negative cable directly to the battery terminal.

    There are resistance losses and potential failure points every time you add an electrical terminal and a winch has a high current draw.

    You won't find me on: faceplant; Scipe; Infragam; LumpedIn; ShapCnat or Twitting. I'm just not that interesting.
    Reply With Quote Reply With Quote
  5. 12th December 2014, 06:02 AM #5
    winaje's Avatar
    winaje
    winaje is offline Wizard Subscriber
    Join Date
    Jan 1970
    Location
    Wantirna South, Vic
    Posts
    1,459
    Total Downloaded
    0
    Quote Originally Posted by Lotz-A-Landies View Post
    Personally I would be taking the winch negative cable directly to the battery terminal.

    There are resistance losses and potential failure points every time you add an electrical terminal and a winch has a high current draw.
    From what I have read, and a lot of others have said, connecting an earth, especially a high current one from a winch, to the negative terminal directly, will cause the battery management system of the vehicles to sense voltage incorrectly. Unsure of the finer details, but the consensus is don't connect anything directly to negative on main battery.
    Regards, Will

    Stornoway Grey '09 D3 TDV6 SE, 2015 TERRITORY Engine at 348k
    LLAMS, FYRLYTS, OL D4 Bar
    Safari Snorkel, D4 hitch, ARB CKMA12
    Reply With Quote Reply With Quote
  6. 12th December 2014, 07:40 AM #6
    disco4now's Avatar
    disco4now
    disco4now is offline Master Subscriber
    Join Date
    Jan 2010
    Location
    Sydney
    Posts
    151
    Total Downloaded
    0

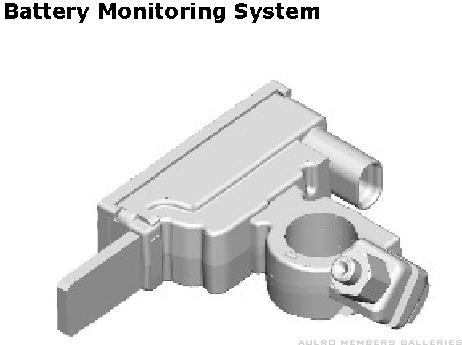

    If you have something like this on your negative battery terminal this is the battery monitoring system.






    This shows wiring for both Diesel V6 2.7L and 3.0L. You can see that the DV6 3.0L circuit has the BMS in series with the -ve battery terminal.
    If you connect earth for other stuff directly to battery negative you are bypassing the BMS which wont now to see all the current flowing.
    The wiring diagrams (for 2010 anyway) seem to indicate BMS on the D4 diesel 3.0L but not on the diesel 2.7L




    Regards
    Gerry
    Reply With Quote Reply With Quote
  7. 12th December 2014, 08:29 AM #7
    drivesafe's Avatar
    drivesafe
    drivesafe is offline OldBushie Vendor
    Join Date
    Jan 1970
    Location
    Queensland
    Posts
    7,904
    Total Downloaded
    0
    Hi Garry and spot on the money. The D4 2.7L has similar wiring to the D3 setup.

    I have only just recently heard of damage being caused when someone connected to the negative terminal of a D4, needing a jump start.

    In the first place, you should never connect to the negative terminal of the disabled vehicle, and not just Land Rovers, but any disabled vehicle.

    But it would appear that this can cause damage to the BMS in Land Rovers.
