Thread: Front Sensors / Front Camera

Originally Posted by Bigstu

So I ordered all of the parts required, sent my vin number to Duckworth LR to make sure it would all be ok. When I pulled out my drivers side headlamp to find the loom, there is only one plug there even close to the same size as the sensor loom and the fog lamp is connected to it. The fog lamp is using only two wires as you would expect but there is no way the sensor loom would plug into that connector anyway. Have I been sent the wrong loom or is this going to be the nightmare I think it is??

BigStu,
Check out this thread, starting at around post 425 and in particular post 449.
http://www.aulro.com/afvb/l319-disco...t-news-45.html

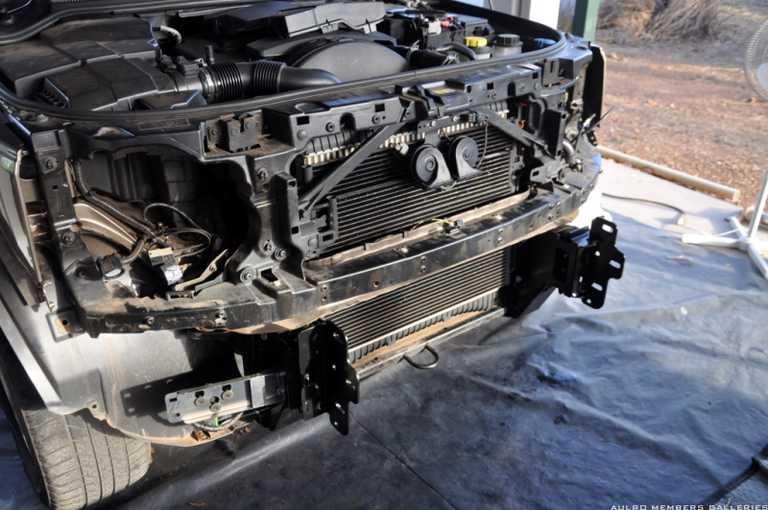

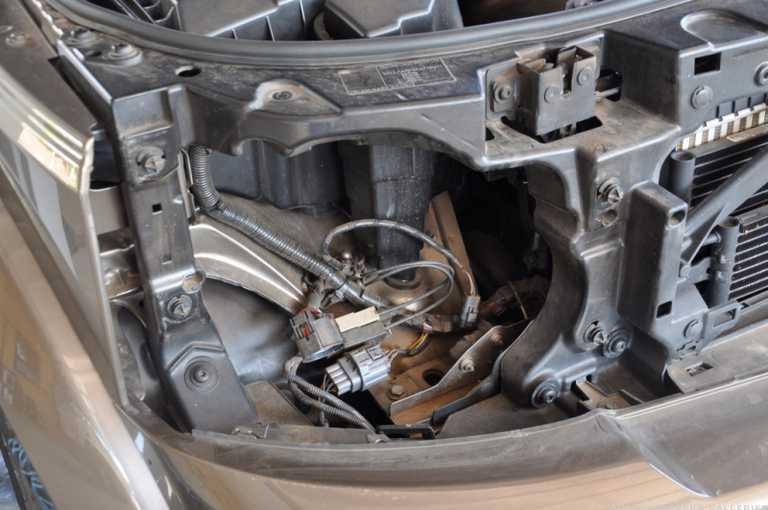

I'll post up a pic tonight. Sensor loom connector is grey, square and located under the drivers headlight. Any other questions send us a PM as I've just done this job myself. ARB Summit bar to MY14HSE with Cameras and sensors.

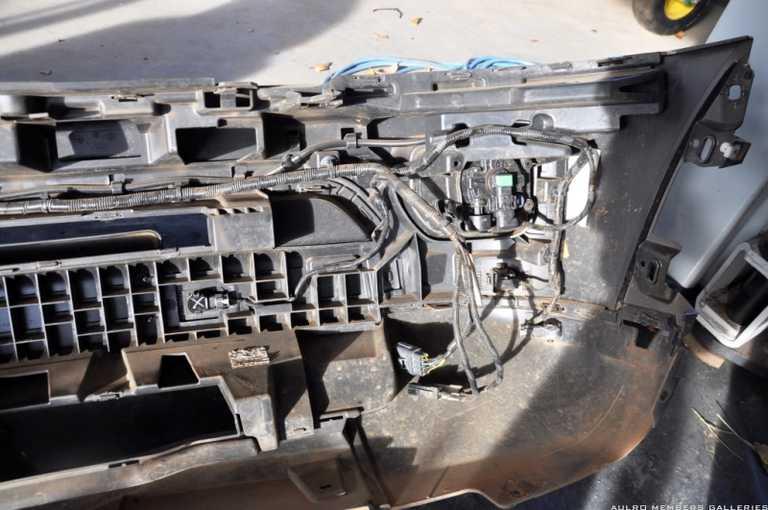

and behind bumper

Hi guys,

Still no joy with this, i can't see a plug anywhere that i can connect the sensor loom to. The closest is the plug that appears to go to the foglights but it uses larger pins. I'm wondering in JLR decided to remove the part of the loom if sensors were not ordered from the factory - seems stupid to me if they did.

Has anyone got any clues??

Mungus, i've looked at your post you suggested but can't see anything there.
