Thread: Air Filter Clean

  1. 14th March 2016, 04:57 AM #1
    Road Stone Guest

    Air Filter Clean

    Hi Folks,

    To clean the air filter, do you just undo the 6 cross head screws and lift the lid. Or do you disconnect those ridged looking tubes too?

    On a TDV8 3.6.

    Cheers, Jerry
    Reply With Quote Reply With Quote
  2. 18th March 2016, 06:59 AM #2
    rar110's Avatar
    rar110
    rar110 is offline ForumSage Subscriber
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    5,778
    Total Downloaded
    0
    Gday Jerry

    I had a crack at this last night as I found this following a service last week where the filter was replaced.

    The filter wasn't fitted properly and the foam seal was poking out of the filter box.
    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137
    Reply With Quote Reply With Quote
  3. 18th March 2016, 07:03 AM #3
    rar110's Avatar
    rar110
    rar110 is offline ForumSage Subscriber
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    5,778
    Total Downloaded
    0

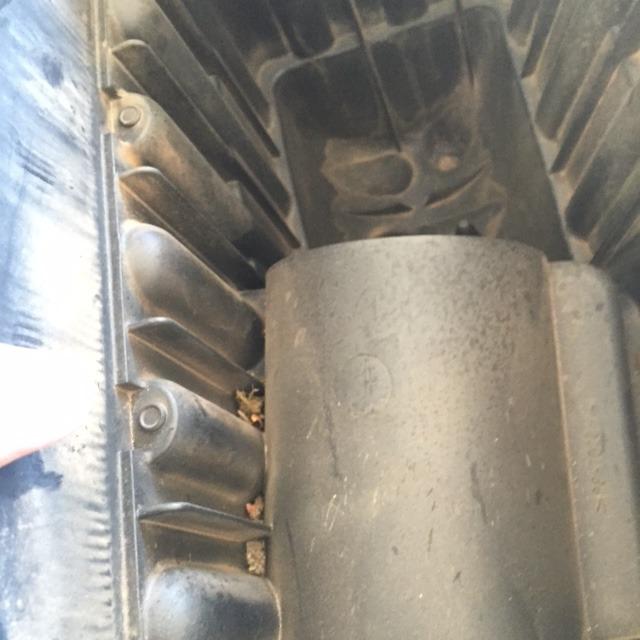

    Opened it up. The seal is clearly damaged and the filter is not as new looking as I'd expect being 1 week old.
    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137
    Reply With Quote Reply With Quote
  4. 18th March 2016, 10:24 AM #4
    Pedro_The_Swift's Avatar
    Pedro_The_Swift
    Pedro_The_Swift is offline The MOD Father
    Join Date
    May 2003
    Location
    On The Road
    Posts
    30,031
    Total Downloaded
    0
    did they bill you for a new filter?
    "How long since you've visited The Good Oil?"

    '93 V8 Rossi
    '97 to '07. sold.
    '01 V8 D2
    '06 to 10. written off.
    '03 4.6 V8 HSE D2a with Tornado ECM
    '10 to '21
    '16.5 RRS SDV8
    '21 to Infinity and Beyond!

    1988 Isuzu Bus. V10 15L NA Diesel
    Home is where you park it..

    [IMG][/IMG]
    Reply With Quote Reply With Quote
  5. 18th March 2016, 11:40 AM #5
    rar110's Avatar
    rar110
    rar110 is offline ForumSage Subscriber
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    5,778
    Total Downloaded
    0
    Quote Originally Posted by Pedro_The_Swift View Post
    did they bill you for a new filter?
    Yes. I pulled it out, and definitely new.
    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137
    Reply With Quote Reply With Quote
  6. 20th March 2016, 03:16 PM #6
    Road Stone Guest
    So I did the same as rar110 and change the filter. The incumbent one was, funnily enough, damaged in the same way, ie not installed properly.


    My car lives in a very dusty city, red dust too and fine.





    Filter box still had UK stuff in it! Oak leaves and a wasp I think. Cleaned it out.

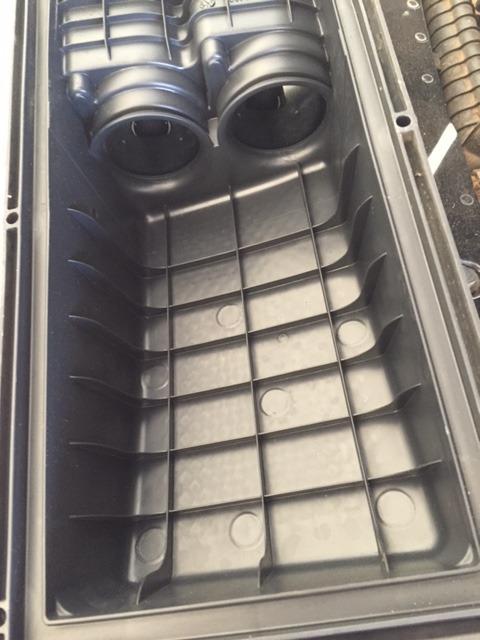

    Filter box lid spotless. Filter doing its job.





    Old V's New. Old filter is 4300klms old.


    Cheers, Jerry
    Reply With Quote Reply With Quote
  7. 21st March 2016, 08:55 PM #7
    schuy1 Guest
    Should breath better now for a while. Where do the air cleaner draw it's air from? In the guard? Not a good place when you are running gravel road systems. I know a couple of D2s lunched their turbos from blocked filters because the owners were not aware of the problem.
    Cheers Scott
    Reply With Quote Reply With Quote
  8. 21st March 2016, 09:29 PM #8
    Road Stone Guest
    Quote Originally Posted by schuy1 View Post
    Should breath better now for a while. Where do the air cleaner draw it's air from? In the guard? Not a good place when you are running gravel road systems. I know a couple of D2s lunched their turbos from blocked filters because the owners were not aware of the problem.
    Cheers Scott

    Yes, I was not really surprised, and was a reason I took a look after only a short mileage.
    The box draws air from the gap between the inner and outer wing, quite low down! Something to remember if going through water.
    There is a soft rubber tube that attaches to the filter box and goes through the inner wall.


    I have just ordered two more filters from Britpart.


    Cheers, Jerry
    Reply With Quote Reply With Quote
  9. 24th March 2016, 10:57 PM #9
    schuy1 Guest
    It is staggering that 4wd manufactures give no thought to small but mission critical details such as clean air intakes, but just carry over designs from road cars. Though not surprising really as most 4wds are never envisaged as going off paved roads.
    4WD service manager; How is it your air filter needs changing at each service?
    4WD owner; Well you see I have this 50meters of unpaved driveway.......
    4WD service manager; Really Sir! Why havent you told us? That classifies as severe service!!!
    Cheers Scott
    Reply With Quote Reply With Quote
