Thread: Tdv8 air suspension part numbers

Well I finally had the fronts replaced with Delphi struts at about 260,000km. They hadn't failed but was intending on a 5000km return trip to Victoria and I didn't want any mechanical dramas, and the front EAS seemed the most likely thing to fail given the car's age and km.

After looking at the condition of the old ones I'm happy I did. The left side shock had pretty much died and both air springs were starting to show surface cracks where the probably fold over the most. There was no surface cracking at the fold when the spring was at more extreme ends of the range.

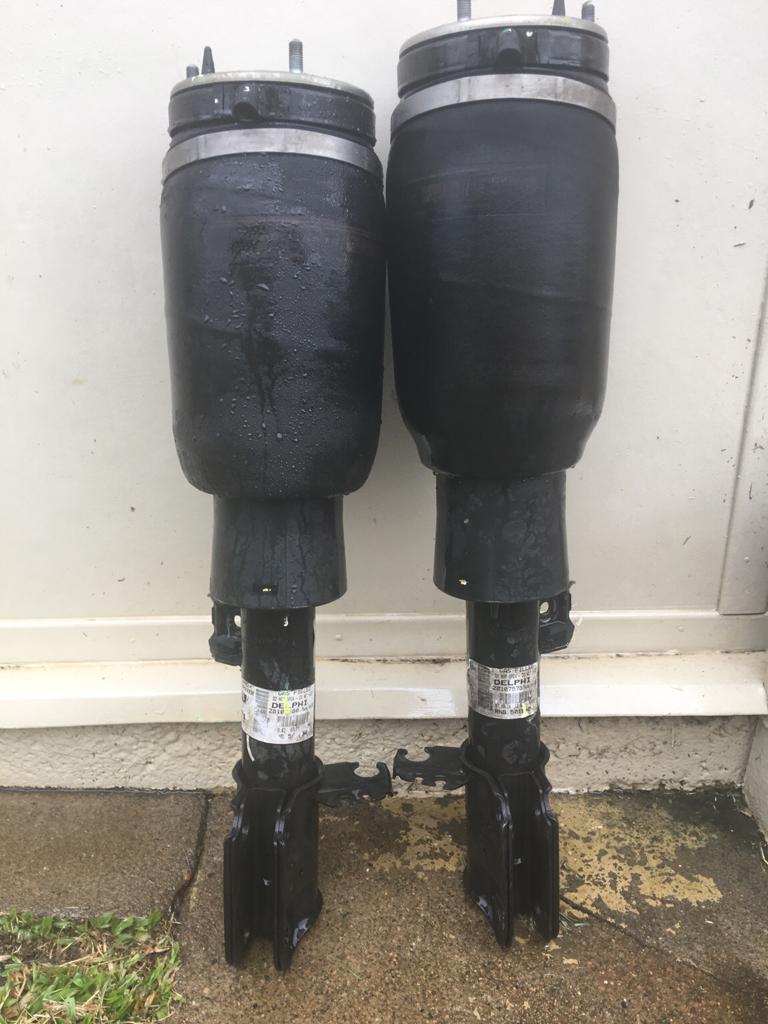

Here are some pics. The first pic shows how the left side shock had no valve pressure.

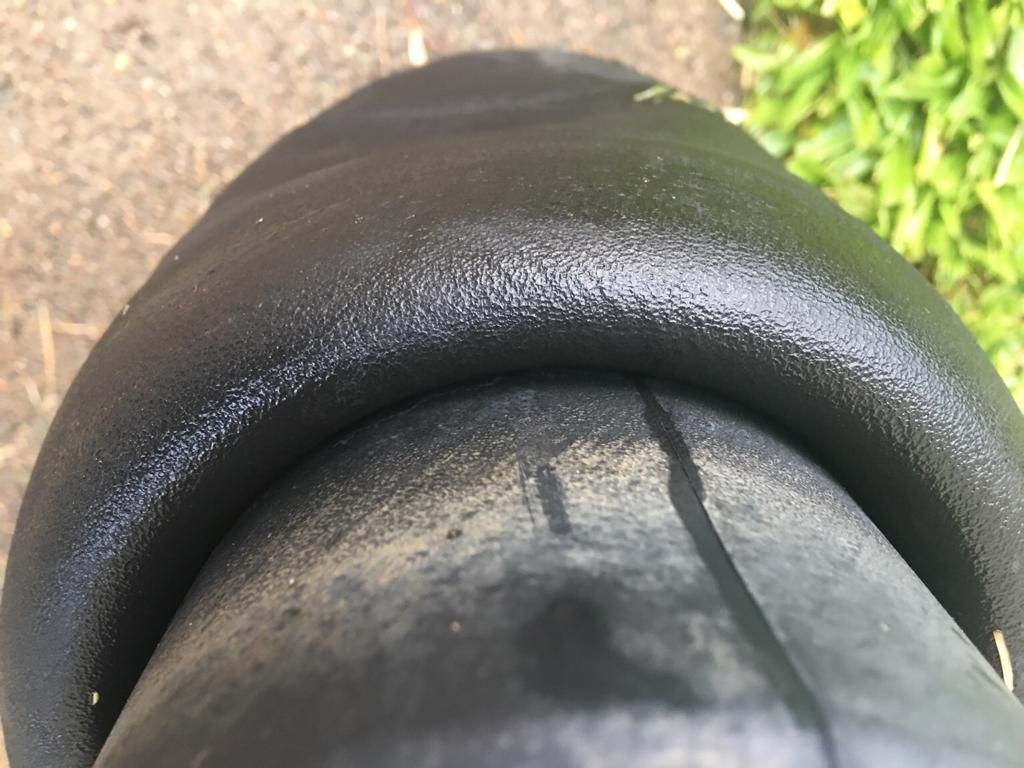

This pic shows surface cracking in the fold, probably at normal height.

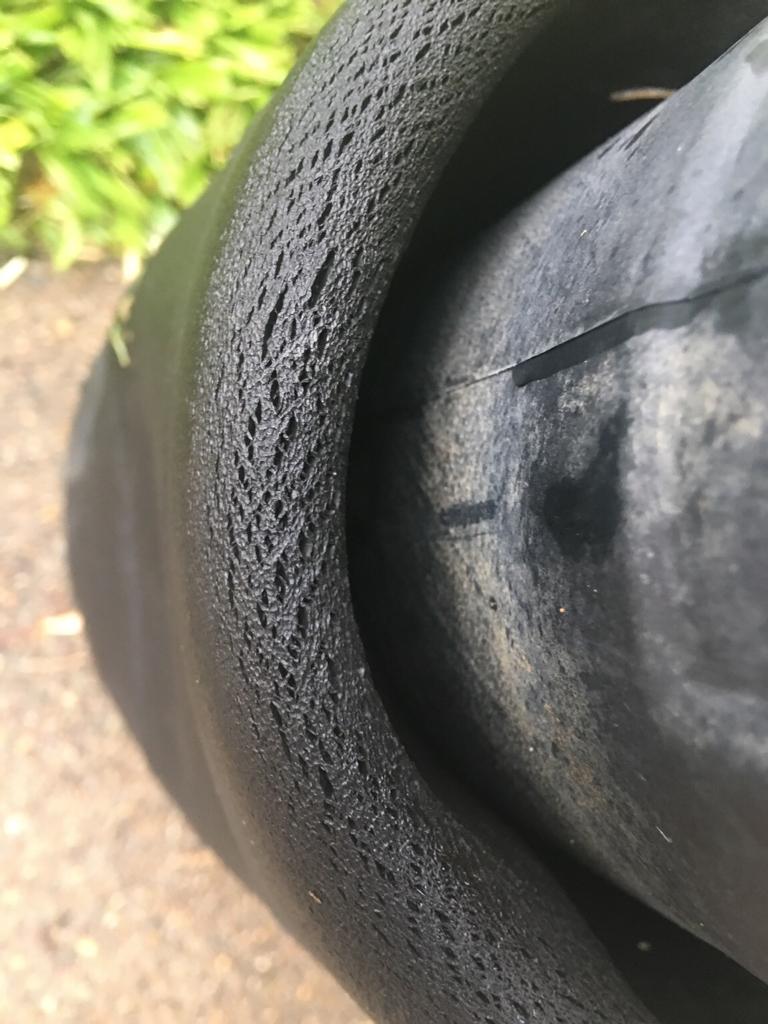

This pic is at low height.

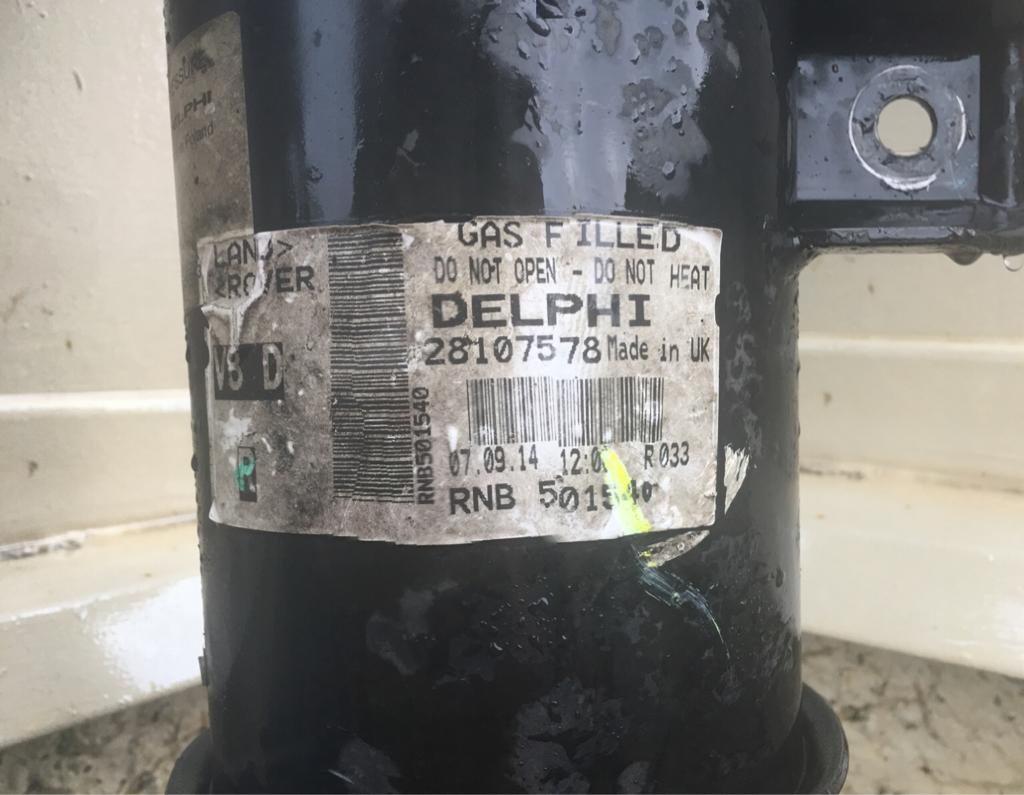

Pic showing part numbers and Delphi being the maker.
