Well after 3 months I finally finished this little project

After fitting the gas tank on the drivers side I was going to get a tank custom made for the passenger side. But this tank came up for a 5th of the price it would have cost to have one made.

Lots of pics.

Firstly you need:

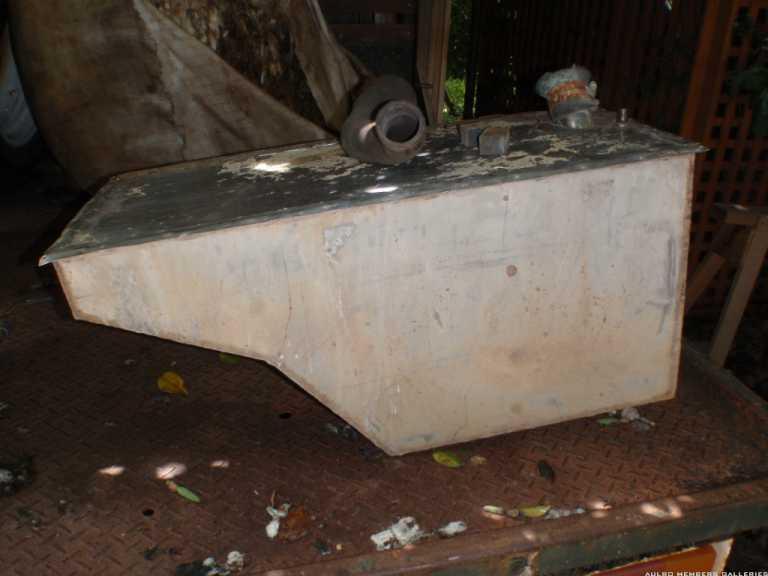

The tank


The gauge

(Thanks to bee utey)

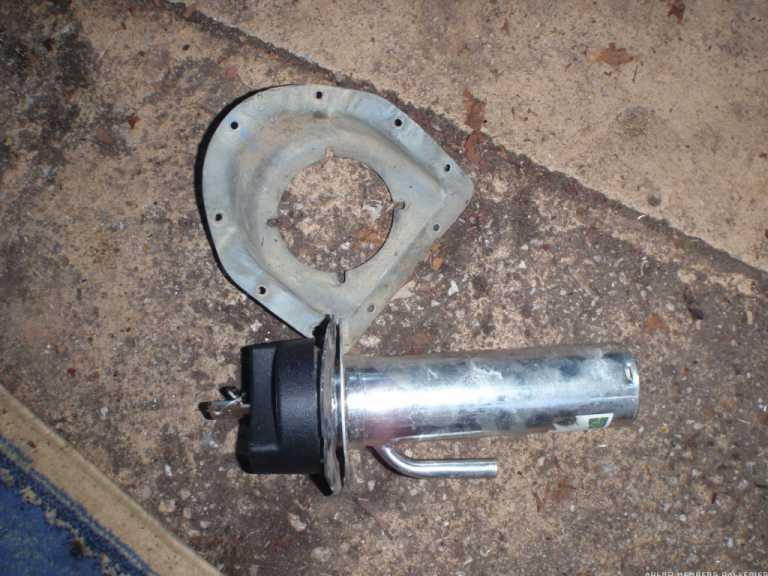

The filler


The pre filter


The diverter valve
Light Truck 6-Port Motor Driven Valve on Pollak

Now comes the fun parts

Fitting sender to tank:

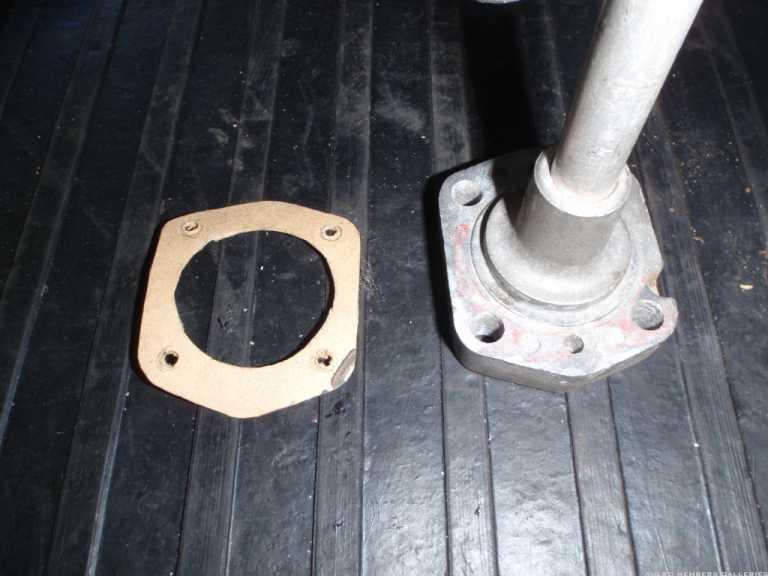

Gasket cut

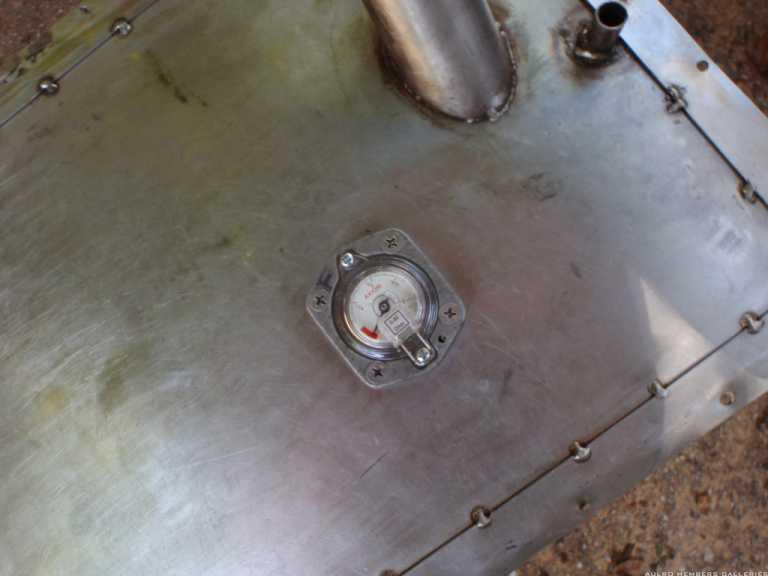

Hole cut and sender fitted

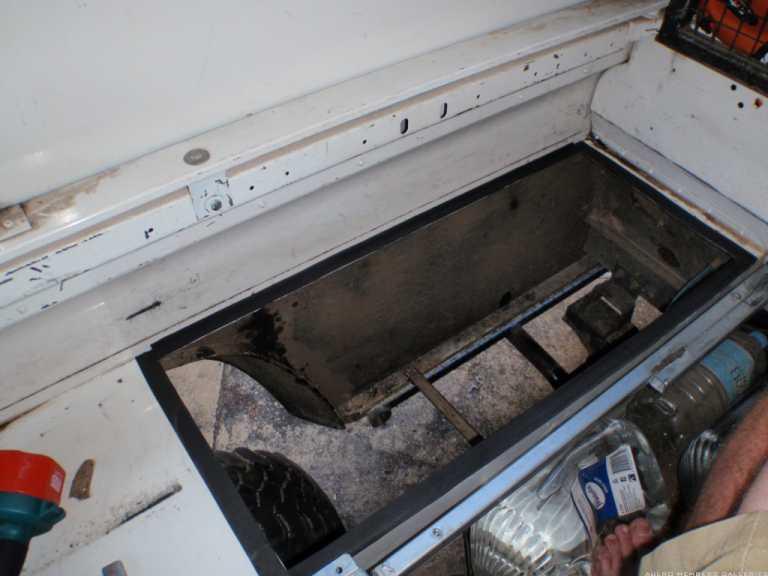

Hole cut in Landy

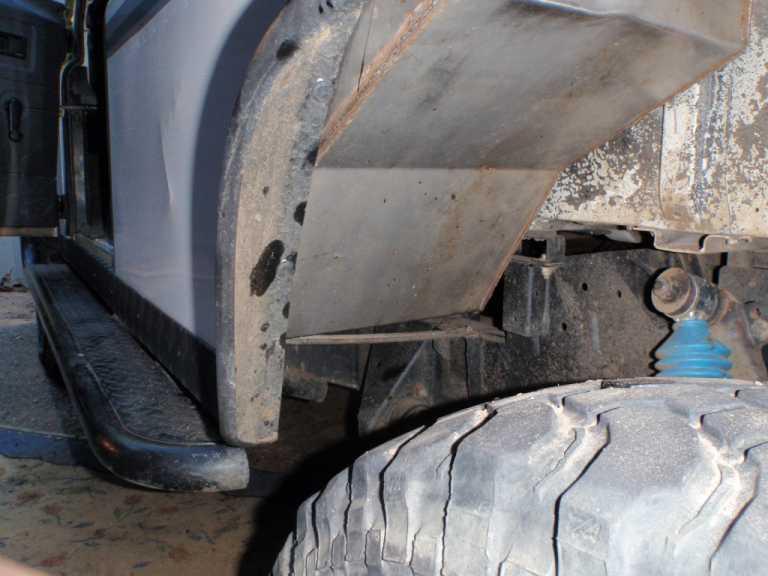

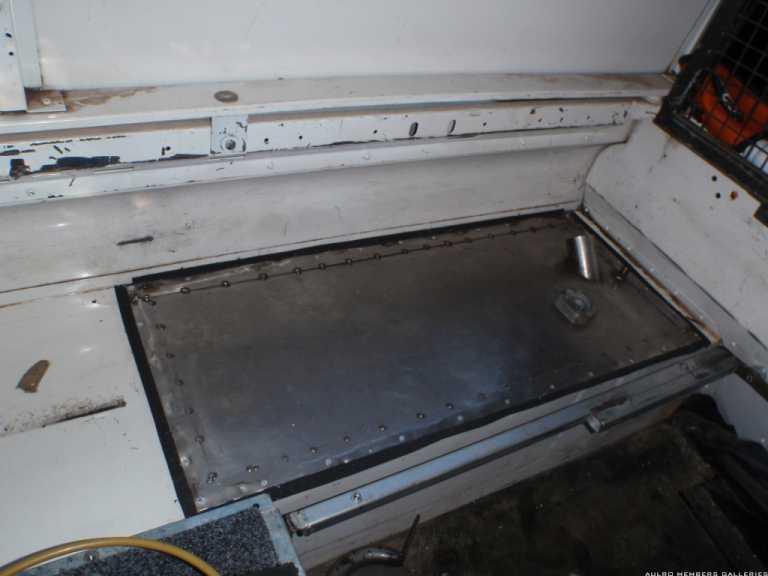

Tank fitted to Landy

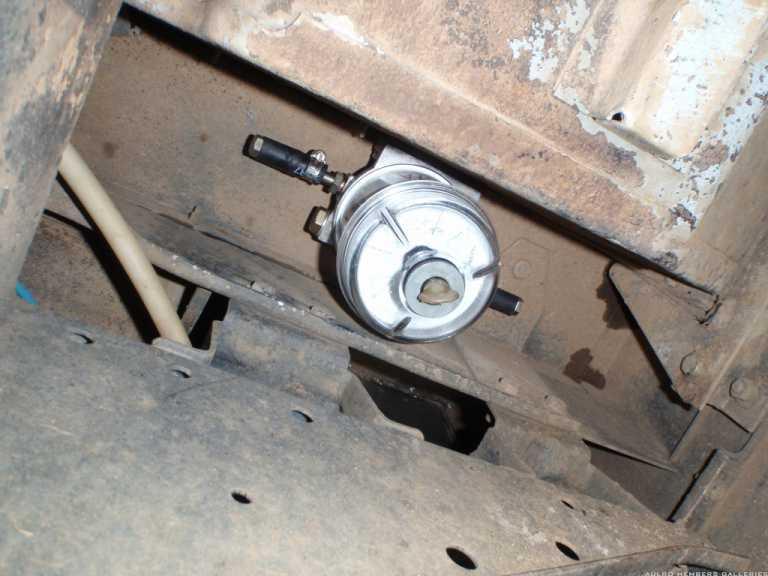

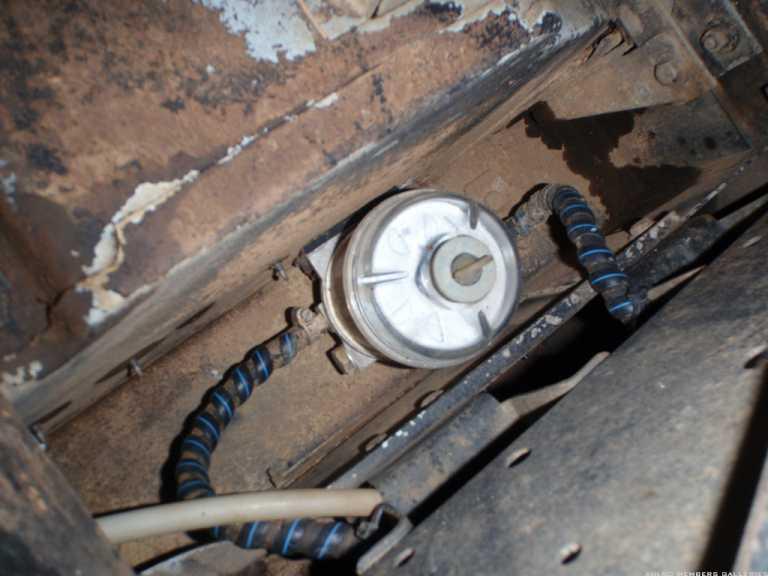

Pre filter mounted

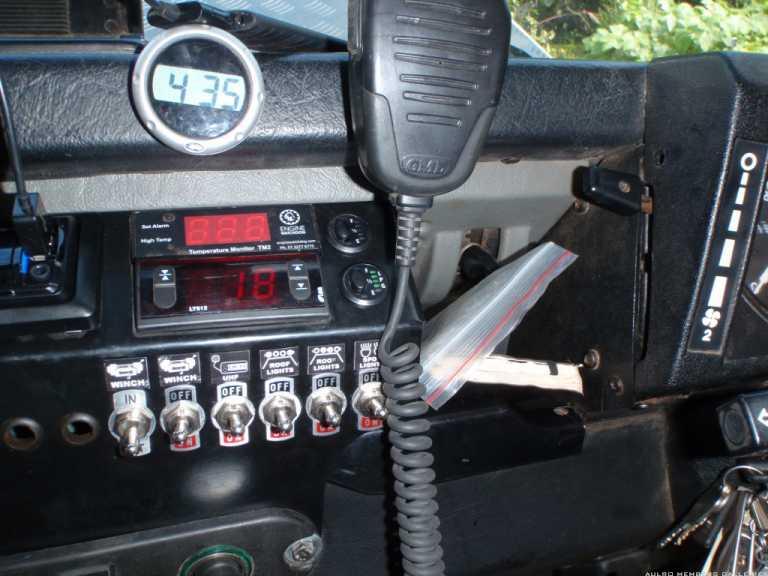

Gauge and built in transfer switch fitted

Note. top gauge is diesel, bottom gauge is LPG

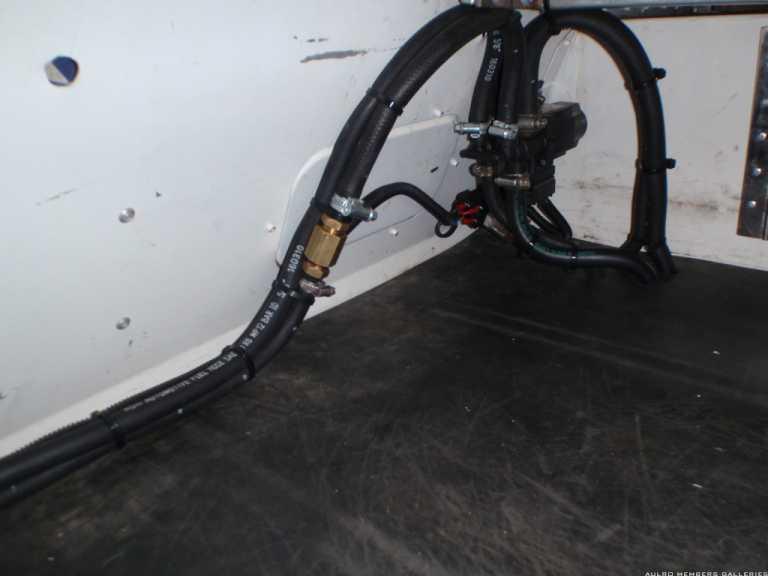

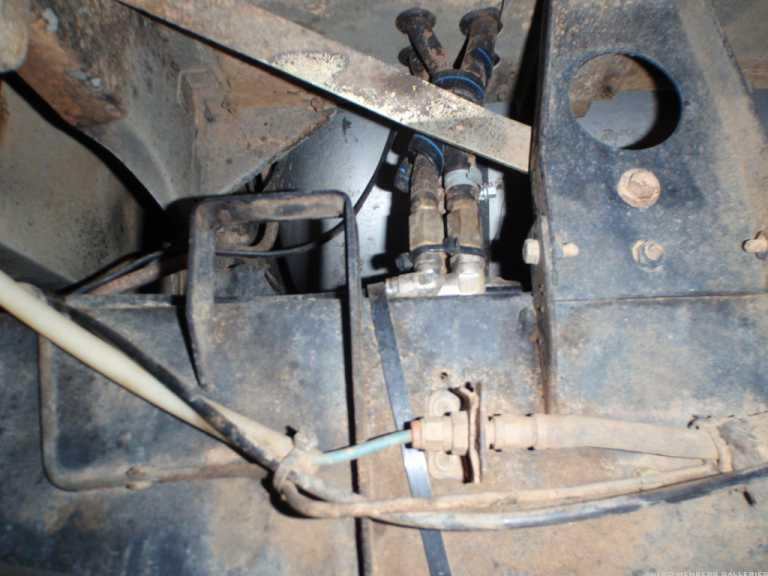

Diverter fitted

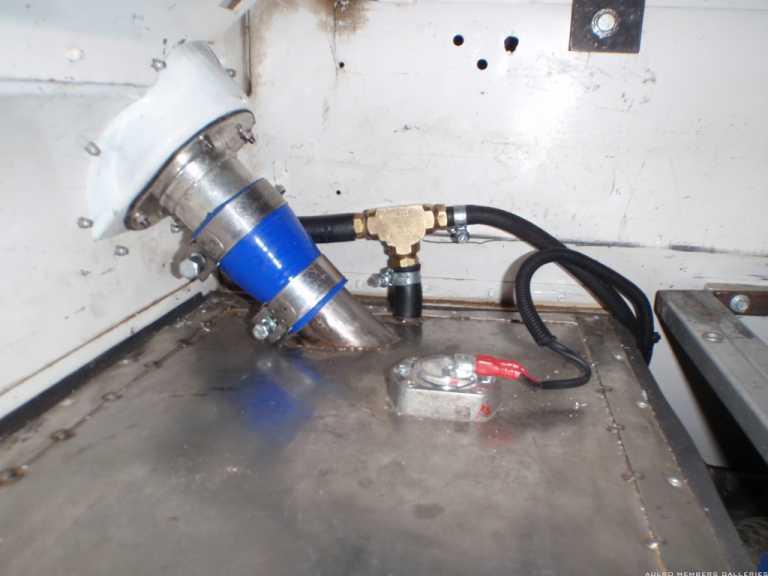

Tank filler plumbed (I plan on having a guard folded up for this, the false floor hides the top of the tank)

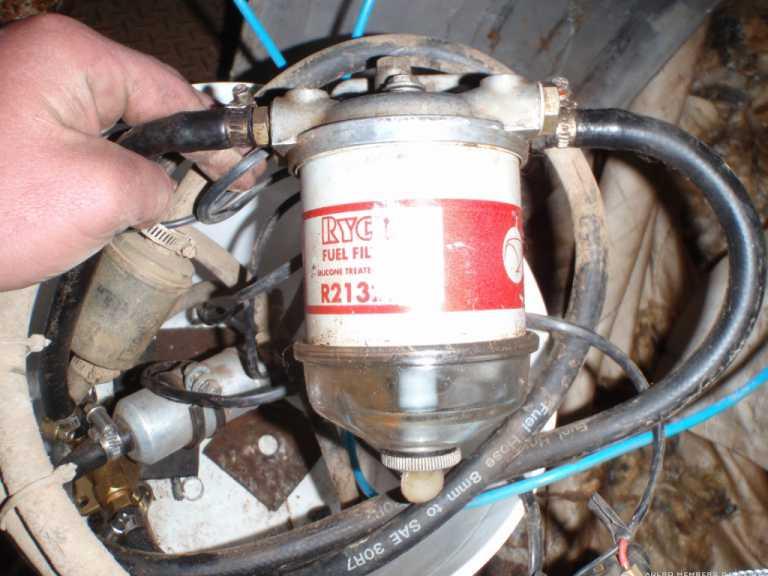

Pre filter plumbed


Fuel lines hooked up to the engine supply lines

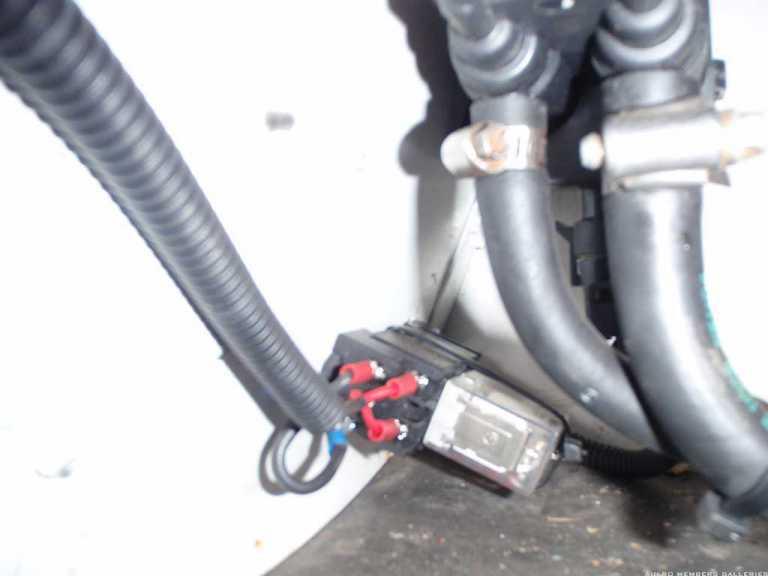

Reverse polarity relay (required to be able to use an on-off switch, rather than using an on-off-on switch)

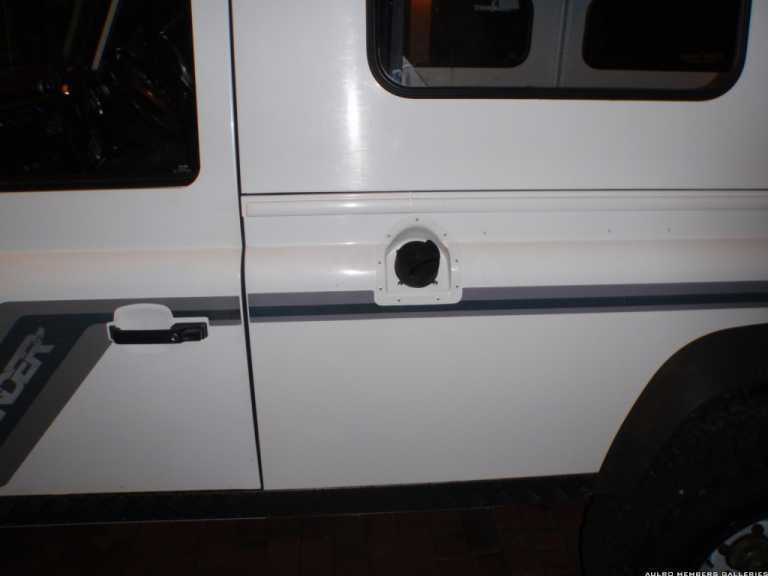

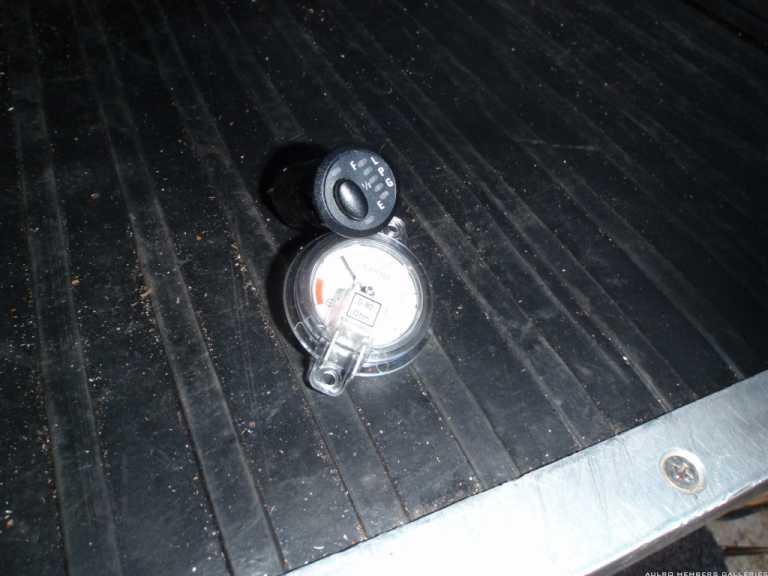

And lastly the filler cap fitted with standard Defender locking cap


All done, I can now understand why ARB sting so much to make these things up

I plan on having another tank made up that will sit in the well between the mudguards. One day .....

Any questions sing out
