Thread: My Front Recovery Points

  1. 4th October 2009, 07:28 PM #1
    Jock The Rock
    Jock The Rock is offline ChatterBox
    Join Date
    Mar 2008
    Location
    TBA
    Posts
    2,328
    Total Downloaded
    0

    My Front Recovery Points

    Well I finally got round to making the brackets for my front recovery points.

    They run back to the chassis and are held on with two 10.9 M12 bolts. Made out of 10mm plate and over engineered to buggery

    I'll let the pics tell the story, but I though it may give some people some ideas

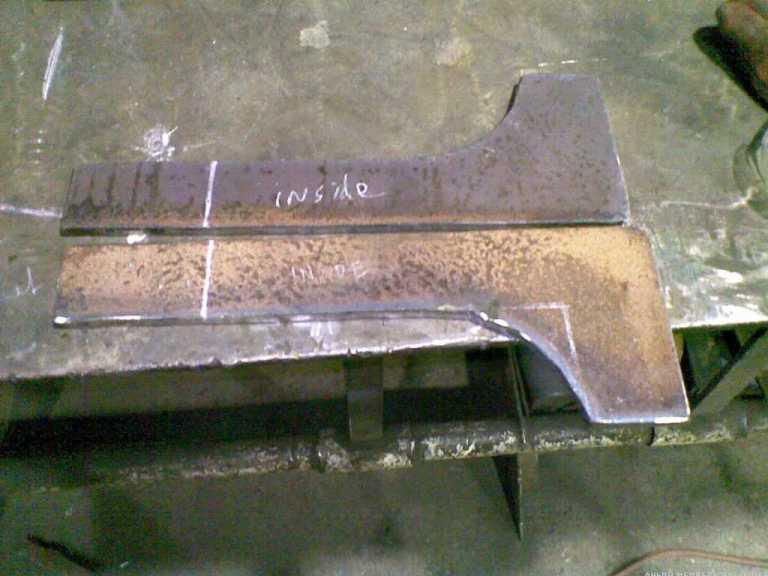

    Cut out of 10mm plate and ready to be bent

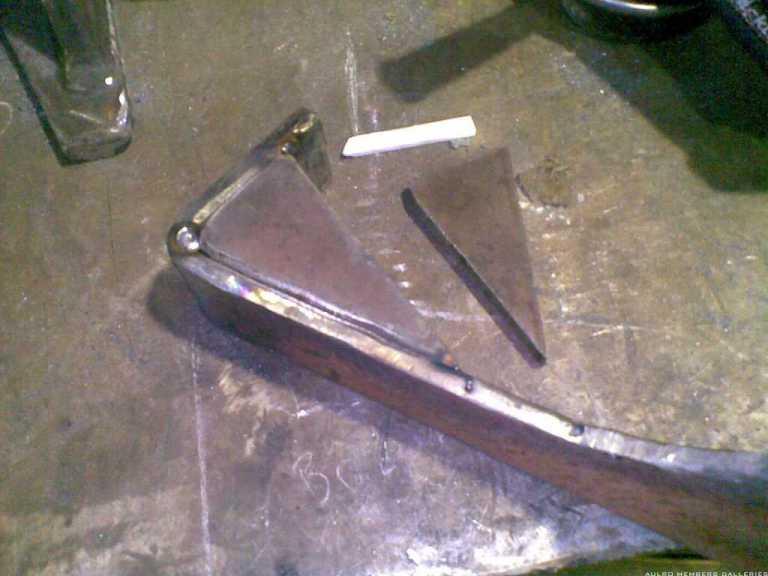

    Gussets tacked in place

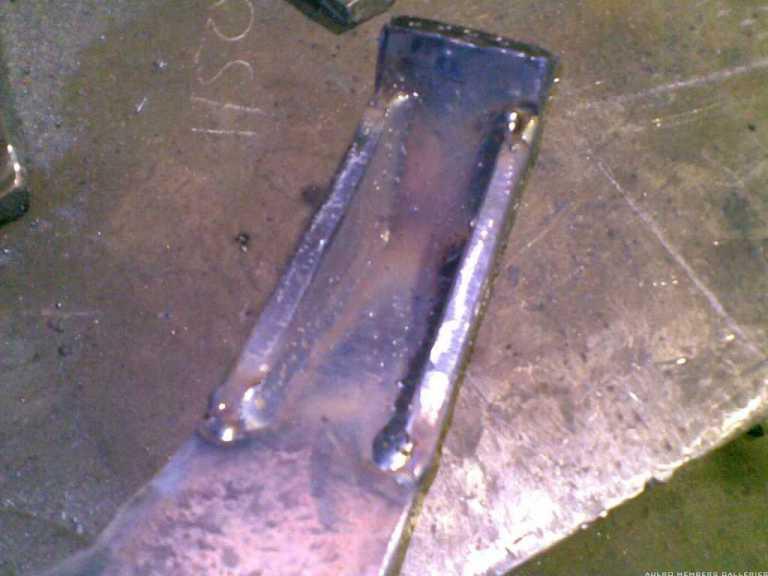

    All welded together

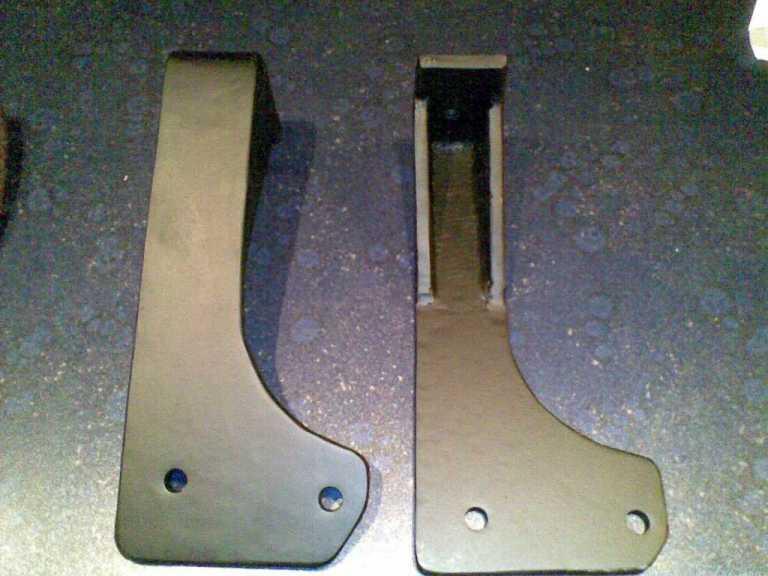

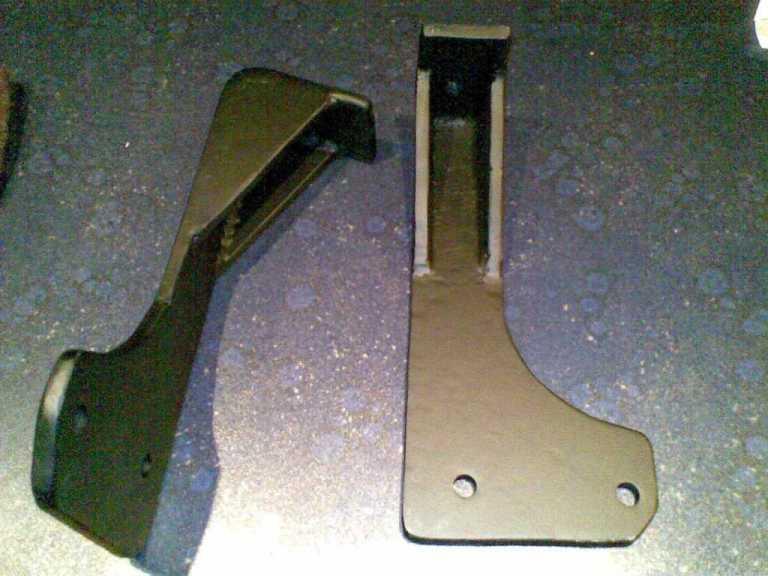

    After a good going over with a flap disc on the grinder, a coat of Rust Kill, 2 coats of primer and 4 coats of paint

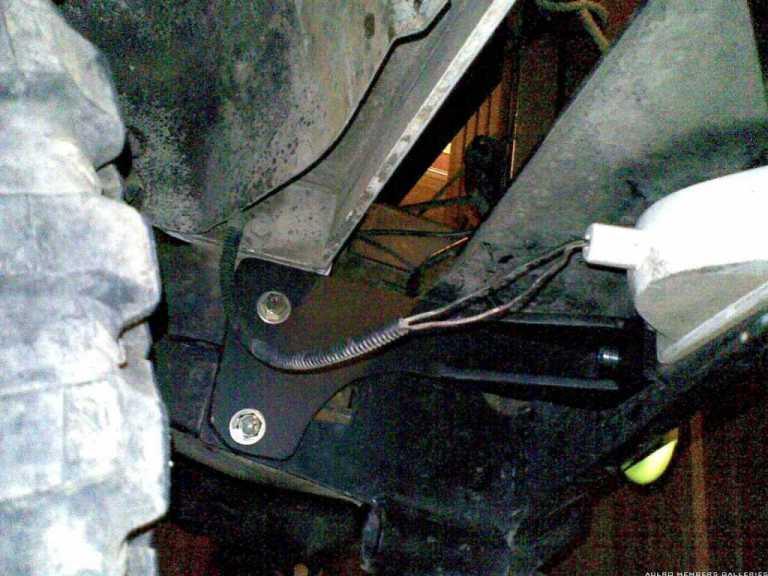

    Bolted in place behind the winchbar


    With the Gunnebo Lifting points bolted in and tensioned up (one Jock on the end of a 1/2 Ratchet = 100Nm)



    All in all I'm pretty happy with how they came up, although the paint on those things is bloody bright
    Reply With Quote Reply With Quote
  2. 4th October 2009, 07:31 PM #2
    Sleepy's Avatar
    Sleepy
    Sleepy is offline ForumSage
    Join Date
    Mar 2008
    Location
    Melb. Vic.
    Posts
    6,045
    Total Downloaded
    0
    Nice Jock, they won't budge!
    Reply With Quote Reply With Quote
  3. 4th October 2009, 07:33 PM #3
    Cap's Avatar
    Cap
    Cap is offline YarnMaster Supporter
    Join Date
    Jul 2006
    Location
    Hobart Tasmania
    Posts
    3,690
    Total Downloaded
    0
    Geeeeeeeez Jock, wadda you wanna do, ab-sail the landie?

    Good job mate, they certainly wont be the first thing to let go!
    Carlos
    1994 Land Rover Discovery 300tdi
    1963 Land Rover Series 2a 88
    Youtube Channel: https://www.youtube.com/channel/UCu3...BtsNIuTyGkAo5w
    Instagram: https://instagram.com/rover_tasmania/
    Reply With Quote Reply With Quote
  4. 4th October 2009, 07:39 PM #4
    Jock The Rock
    Jock The Rock is offline ChatterBox
    Join Date
    Mar 2008
    Location
    TBA
    Posts
    2,328
    Total Downloaded
    0
    Quote Originally Posted by Sleepy View Post
    Nice Jock, they won't budge!
    Thats the plan with all these stories of recovery points letting go I wasn't taking any chances

    Quote Originally Posted by stooge View Post
    Geeeeeeeez Jock, wadda you wanna do, ab-sail the landie?

    Good job mate, they certainly wont be the first thing to let go!
    Well when I get the two rear ones mounted up on the custom bar (still to come) technically I should be able to lift it with these. Safely not that its going to be lifted anywhere mind, except maybe on the boat to be taken to Africa one day ......
    Reply With Quote Reply With Quote
  5. 4th October 2009, 07:44 PM #5
    Chucaro's Avatar
    Chucaro
    Chucaro is offline Swaggie
    Join Date
    Dec 2007
    Location
    South East Tasmania
    Posts
    10,705
    Total Downloaded
    0
    going by the photos you fitted a pin at the end of the plares where the shacke is mounted.

    What it is the certified breaking point of the pin?
    A rigger eye bolt to hold a 4 tons shacke have to have thread larger the 50 mm for that reason manufacturer fabricate flat plates like the ones on the Disco.
    Reply With Quote Reply With Quote
  6. 4th October 2009, 07:54 PM #6
    Jock The Rock
    Jock The Rock is offline ChatterBox
    Join Date
    Mar 2008
    Location
    TBA
    Posts
    2,328
    Total Downloaded
    0
    Quote Originally Posted by Chucaro View Post
    going by the photos you fitted a pin at the end of the plares where the shacke is mounted.

    What it is the certified breaking point of the pin?
    A rigger eye bolt to hold a 4 tons shacke have to have thread larger the 50 mm for that reason manufacturer fabricate flat plates like the ones on the Disco.
    Hey mate these are them

    http://www.aulro.com/afvb/marketplac...group-buy.html

    Manufacturers specifations say the thread needs to be 16mm thick, mine are only 10mm. I'm planning on getting some 16mm nuts and putting them on the back with Loctite

    I don't reckon they will break very easily
    Reply With Quote Reply With Quote
  7. 4th October 2009, 07:56 PM #7
    weeds's Avatar
    weeds
    weeds is offline Swaggie
    Join Date
    Feb 2005
    Location
    Bracken Ridge - Brisbane - QLD
    Posts
    14,276
    Total Downloaded
    0
    Quote Originally Posted by Jock The Rock View Post
    Bolted in place behind the winchbar
    not having seen these in the flesh......but is there supposed to be a nut and washer on the inside of the bar, i'm guessing 10mm plate would not be a thick as a 12mm nut

    a bit hard to tell from the pics but i guessing you have tapped the 10mm plate

    other than that it looks pretty solid

    i'm in the same vote as you, i knocked up a winch cradle for my pto and tried to over engineer it as well
    Reply With Quote Reply With Quote
  8. 4th October 2009, 07:58 PM #8
    weeds's Avatar
    weeds
    weeds is offline Swaggie
    Join Date
    Feb 2005
    Location
    Bracken Ridge - Brisbane - QLD
    Posts
    14,276
    Total Downloaded
    0
    oops ignore my post, too slow at typing, looks like you have it all covered
    Reply With Quote Reply With Quote
  9. 4th October 2009, 08:07 PM #9
    Chucaro's Avatar
    Chucaro
    Chucaro is offline Swaggie
    Join Date
    Dec 2007
    Location
    South East Tasmania
    Posts
    10,705
    Total Downloaded
    0
    Thank mate I was looking on the gear that the riggers are using with a rate of 8 tons HERE and the thread is very big!
    Reply With Quote Reply With Quote
  10. 4th October 2009, 08:16 PM #10
    Jock The Rock
    Jock The Rock is offline ChatterBox
    Join Date
    Mar 2008
    Location
    TBA
    Posts
    2,328
    Total Downloaded
    0
    Quote Originally Posted by weeds View Post
    oops ignore my post, too slow at typing, looks like you have it all covered


    The thread on the recovery points in M16 and the two bolts through the chassis are M12

    Reply With Quote Reply With Quote
