Thread: My 1955 86" rebuild.

  1. 27th October 2015, 06:05 AM #591
    wrinklearthur's Avatar
    wrinklearthur
    wrinklearthur is offline ForumSage
    Join Date
    Jan 1970
    Location
    under a rock, next to a tree, at Broadmarsh
    Posts
    6,738
    Total Downloaded
    0
    With your high / low headlight dipper switch, the striker isn't throwing over completely and probably because it's pivot is dry.
    I seem to recall that the spring attached to the striker can get hot somehow lose it's temper and stretch.
    You could use the still working low dipper circuit to operate a headlight relay and that would be one way around the problem of current causing heat across the switch points.
    .
    Reply With Quote Reply With Quote
  2. 27th October 2015, 08:17 AM #592
    Dinty's Avatar
    Dinty
    Dinty is offline TopicToaster
    Join Date
    Jan 1970
    Location
    Cessnock NSW
    Posts
    4,990
    Total Downloaded
    0
    I had posted this issue in another forum and this was one of the responses similar to yours wrinklearthur ?? or is it as I'm a dummy when it comes to electrics LOL
    12 Volt 5 Blade Relay, if it is I'm going to need to have a 'Bex' LOL cheers Dennis
    Reply With Quote Reply With Quote
  3. 27th October 2015, 09:56 AM #593
    Dinty's Avatar
    Dinty
    Dinty is offline TopicToaster
    Join Date
    Jan 1970
    Location
    Cessnock NSW
    Posts
    4,990
    Total Downloaded
    0
    I have removed the item from the steering column again as my arms & T/A (wife) is not home, I have checked the wires and they all have continuity so that tells me they are not broken.
    I set the item up in the shed and sprayed it with Freon, gave it heaps then a quick squirt of Inox, it is now working with a positive audible click
    [ame]https://www.youtube.com/watch?v=Sgf7Xphos68&feature=youtu.be[/ame]
    look @ Max the Sheltie checking things out for 'Digger' LOL, anyway it's pouring rain ATM and with the T/A not available so I guess I will just have to twiddle my thumbs cheers Dennis
    Reply With Quote Reply With Quote
  4. 27th October 2015, 10:34 AM #594
    wrinklearthur's Avatar
    wrinklearthur
    wrinklearthur is offline ForumSage
    Join Date
    Jan 1970
    Location
    under a rock, next to a tree, at Broadmarsh
    Posts
    6,738
    Total Downloaded
    0
    I'm not happy with that relay and I will find you another type to use
    Last edited by wrinklearthur; 27th October 2015 at 10:47 AM. Reason: retract message
    Reply With Quote Reply With Quote
  5. 27th October 2015, 11:07 AM #595
    wrinklearthur's Avatar
    wrinklearthur
    wrinklearthur is offline ForumSage
    Join Date
    Jan 1970
    Location
    under a rock, next to a tree, at Broadmarsh
    Posts
    6,738
    Total Downloaded
    0
    Try this one.

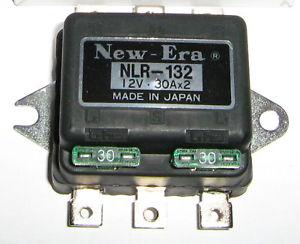

    Special Offer Headlight Twin Relay 12volt 30AMPS NEW ERA B NEW | eBay

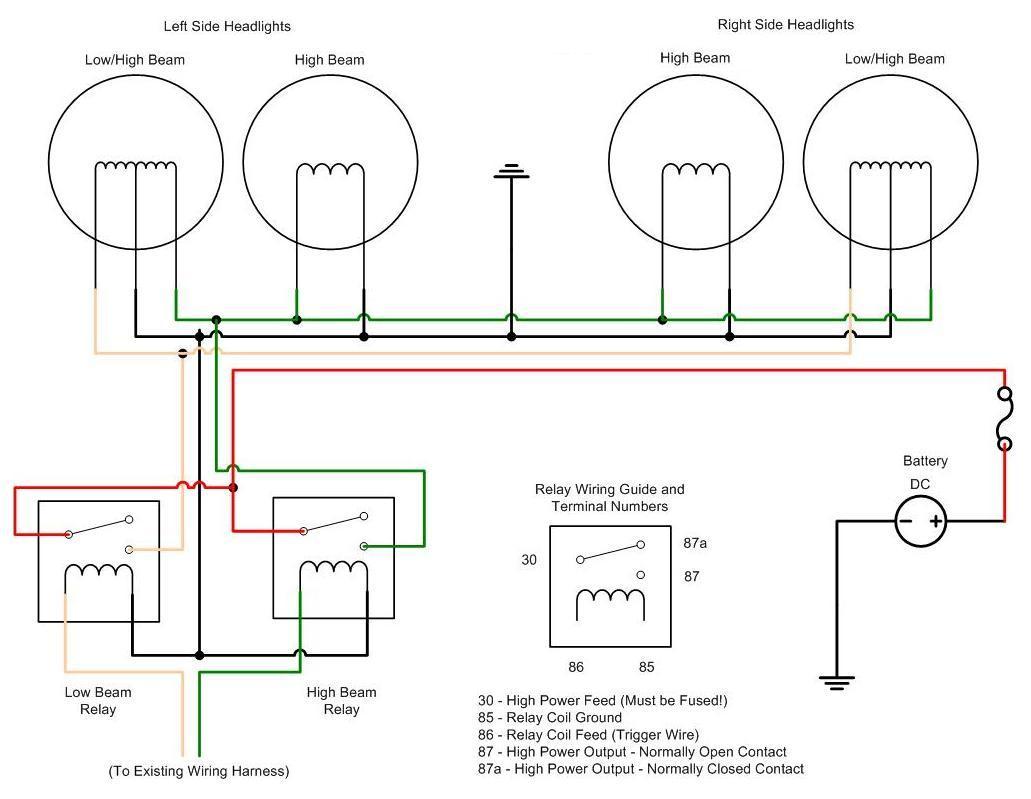

    Wiring diagram's

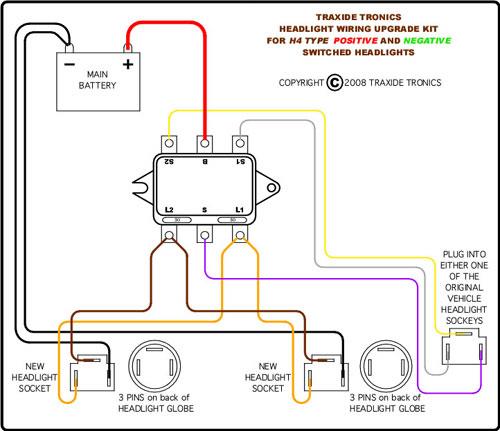

    or the TRAXIDE TRONICS circuit


    .
    Reply With Quote Reply With Quote
  6. 28th October 2015, 03:00 PM #596
    Bundalene's Avatar
    Bundalene
    Bundalene is offline ChatterBox Gold Subscriber
    Join Date
    May 2008
    Location
    Horsley Park, Sydney
    Posts
    2,939
    Total Downloaded
    0
    Thanks for the heads up, I will be looking for a hiding spot to put 3 relays, horn, high and low beam.


    Erich
    Reply With Quote Reply With Quote
  7. 31st October 2015, 06:08 PM #597
    Dinty's Avatar
    Dinty
    Dinty is offline TopicToaster
    Join Date
    Jan 1970
    Location
    Cessnock NSW
    Posts
    4,990
    Total Downloaded
    0

    Both eyes open!!

    In between showers of rain and checking all my other historic rego L/R's as they are due in Dec, I have managed to get both eyes open on the Series 1

    now in between jobs I will have to make a start o the lights @ the rear, cheers Dennis
    ps no work tomorrow on any L/R's as the Postie Bike GP is on
    The Australian Postie Bike Grand Prix - Cessnock Motorcycle Club
    Reply With Quote Reply With Quote
  8. 31st October 2015, 06:18 PM #598
    crackers's Avatar
    crackers
    crackers is offline Master
    Join Date
    May 2015
    Location
    Southern Adelaide
    Posts
    878
    Total Downloaded
    0
    Flip, they're bright.

    As for the postie bikes. I love them. I was a motorcycle instructor for many years and got to play with these on the range while the students were inside learning stuff. Great little bikes and don't they make a great little hot rod (dammit, you'll have me salivating about bikes again).
    Reply With Quote Reply With Quote
  9. 31st October 2015, 06:19 PM #599
    Pedro_The_Swift's Avatar
    Pedro_The_Swift
    Pedro_The_Swift is offline The MOD Father
    Join Date
    May 2003
    Location
    On The Road
    Posts
    30,031
    Total Downloaded
    0
    I wonder how many of the new green ones will run,,,
    "How long since you've visited The Good Oil?"

    '93 V8 Rossi
    '97 to '07. sold.
    '01 V8 D2
    '06 to 10. written off.
    '03 4.6 V8 HSE D2a with Tornado ECM
    '10 to '21
    '16.5 RRS SDV8
    '21 to Infinity and Beyond!

    1988 Isuzu Bus. V10 15L NA Diesel
    Home is where you park it..

    [IMG][/IMG]
    Reply With Quote Reply With Quote
  10. 31st October 2015, 06:20 PM #600
    crackers's Avatar
    crackers
    crackers is offline Master
    Join Date
    May 2015
    Location
    Southern Adelaide
    Posts
    878
    Total Downloaded
    0
    I've just seen the reflection in that mudguard. Is that a boat under that cover? Mate, with restoring Landys, bikes and fishing boats, you are definitely living the dream.
    Reply With Quote Reply With Quote
