    Well haven't posted in a while, but some work has happened!

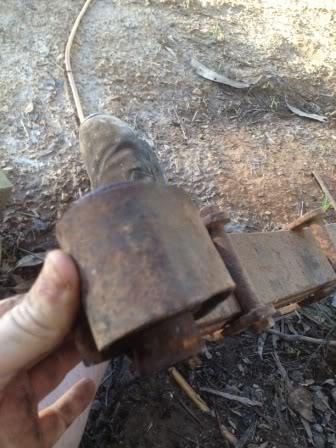

    I've removed the bushes from the rear springs, cold chisel, drill with a piece of wire in the chuck (great for getting the rubber out!!)

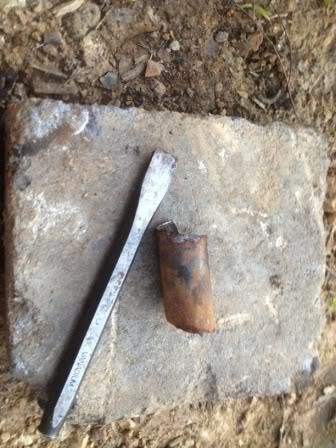

    Tools used!!



    Progress!

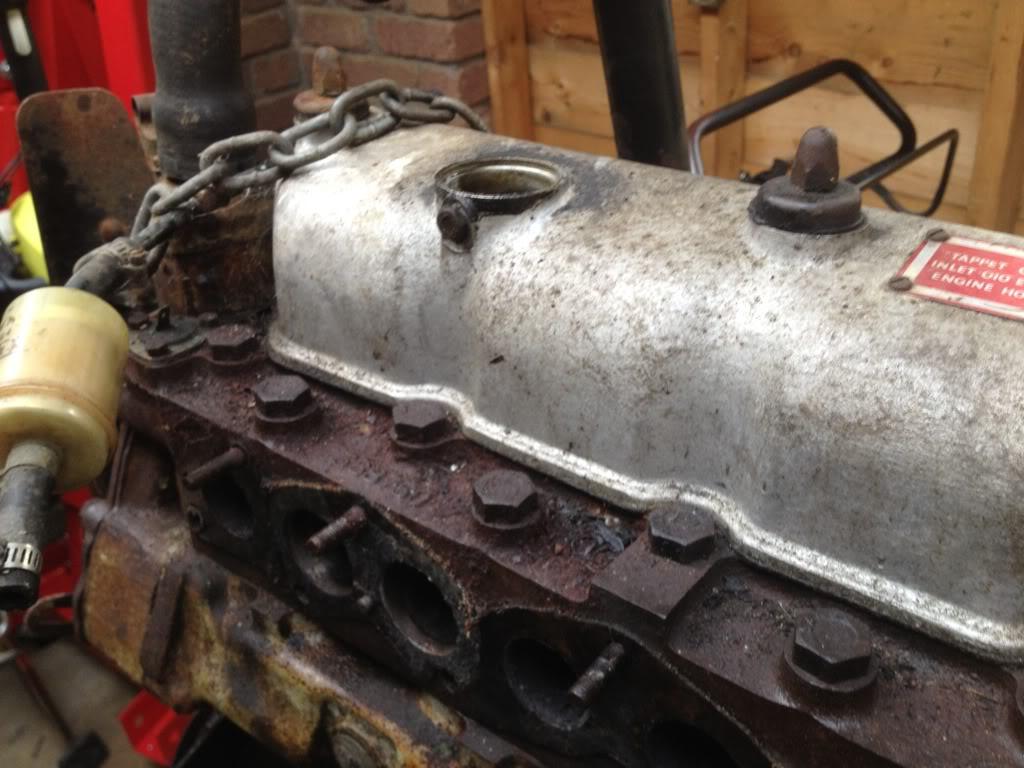

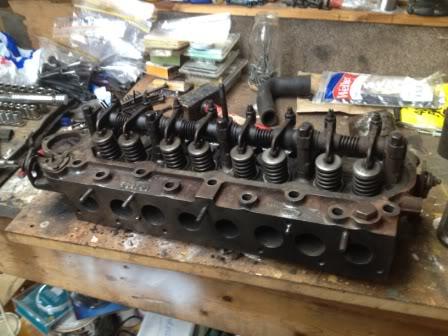

    I also started to strip the new engine, alternator off, intake and exhaust manifold, head...

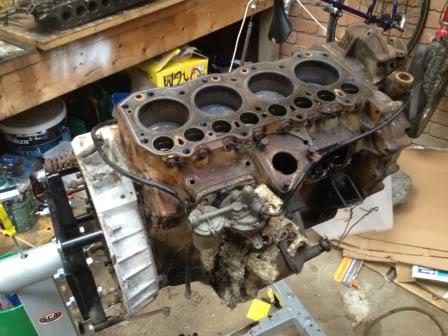

    Gone!









    More soon!!
    1960 SWB Series 2 UTE
    1963 LWB Series 2a UTE

  2. #72
    Join Date
    May 2011
    Location
    Warrandyte, VIC
    Posts
    142
    Total Downloaded
    0
    Well it has been a whole between posts...and not much has changed.

    I'm living in Townsville at the moment and my LR is in Melbourne!!

    Being that I'm home for Christmas I've managed to convince the boss that some time in the shed was needed.

    I cleaned and primed the fan and the brake pedal assembly.....

    ImageUploadedByTapatalk1388057897.630339.jpgImageUploadedByTapatalk1388057912.845713.jpgImageUploadedByTapatalk1388057933.361487.jpgImageUploadedByTapatalk1388057945.084138.jpgImageUploadedByTapatalk1388057958.675734.jpg

    Just a lick of black and they'll look great!!
    1960 SWB Series 2 UTE
    1963 LWB Series 2a UTE

  3. #73
    Join Date
    May 2011
    Location
    Warrandyte, VIC
    Posts
    142
    Total Downloaded
    0
    Well I'm back in Melbourne, so work on the landy has resumed!

    Engine finally gets a lick of paint...

    1960 SWB Series 2 UTE
    1963 LWB Series 2a UTE

  4. #74
    Join Date
    Jul 2013
    Location
    ravenswood, Western Australia
    Posts
    352
    Total Downloaded
    0
    nice work

  5. #75
    Join Date
    May 2011
    Location
    Warrandyte, VIC
    Posts
    142
    Total Downloaded
    0

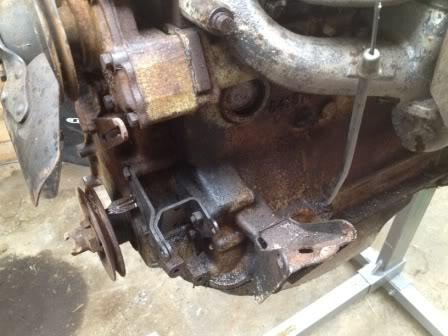

    A bit more assembly:
    Exhaust manifold
    Intake manifold
    Oil breather
    Starter motor

    Painted:
    Fan
    Brake pedal assembly
    1960 SWB Series 2 UTE
    1963 LWB Series 2a UTE

  6. #76
    Join Date
    May 2011
    Location
    Warrandyte, VIC
    Posts
    142
    Total Downloaded
    0

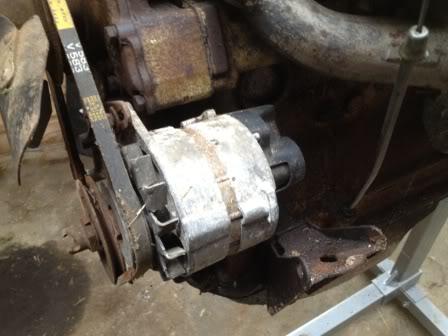

    Alternator now fitted
    Fan and fan belt pulley painted and fitted
    I still need a carbie and distributor - any suggestions in Victoria for second hand.....

    Next (once the oil filter is fitted), it back to the chassis. Finish removing the gear box and steering box. Then the front diff and springs....
    1960 SWB Series 2 UTE
    1963 LWB Series 2a UTE

  7. #77
    Join Date
    May 2011
    Location
    Warrandyte, VIC
    Posts
    142
    Total Downloaded
    0
    So I've started cleaning up the front diff.
    Is it worth stripping the diff down and replace the gaskets and seals? Is it difficult to do so?
    1960 SWB Series 2 UTE
    1963 LWB Series 2a UTE

  8. #78
    Join Date
    May 2011
    Location
    Warrandyte, VIC
    Posts
    142
    Total Downloaded
    0
    Work in progress
    Attached Images Attached Images
    1960 SWB Series 2 UTE
    1963 LWB Series 2a UTE

  9. #79
    Join Date
    Nov 2011
    Location
    Sydney
    Posts
    452
    Total Downloaded
    0
    Quote Originally Posted by tibbsy View Post
    So I've started cleaning up the front diff.
    Is it worth stripping the diff down and replace the gaskets and seals? Is it difficult to do so?
    Replacing the pinion seal can be done without pulling the diff.
    If the diff casing is leaking then you'd need to separate the 2 halves and replace the gasket there. You have to pull the axles and then pull out the diff carrier, but apart from it being rather heavy, you should have to mess with preload or gear meshing assuming the bearings haven't been running in sludge for the last 10 years. Just replace the gasket and bolt it back together.

    I would replace the seals in the ends of the axles though

  10. #80
    Join Date
    May 2011
    Location
    Warrandyte, VIC
    Posts
    142
    Total Downloaded
    0
    Thanks Ozdunc!!

    I was hoping that would be the case, the oil that came out of the diff was quite clean.

    So a strip, clean, paint and gasket change is on the cards.....pics to follow
    1960 SWB Series 2 UTE
    1963 LWB Series 2a UTE
