Thread: CV joint explosion!

  1. 10th May 2010, 08:31 PM #1
    abaddonxi's Avatar
    abaddonxi
    abaddonxi is offline Moderator
    Join Date
    Jan 1970
    Location
    2780
    Posts
    8,257
    Total Downloaded
    0

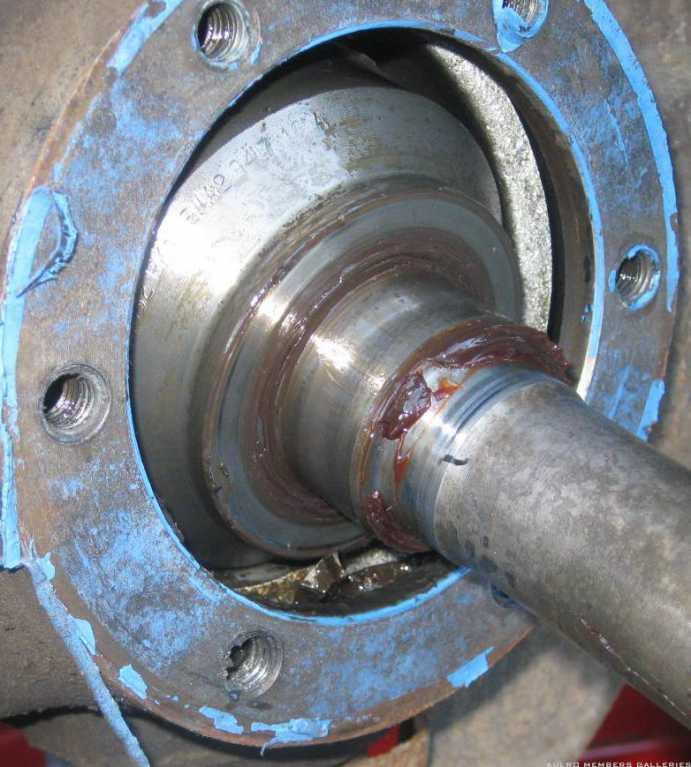

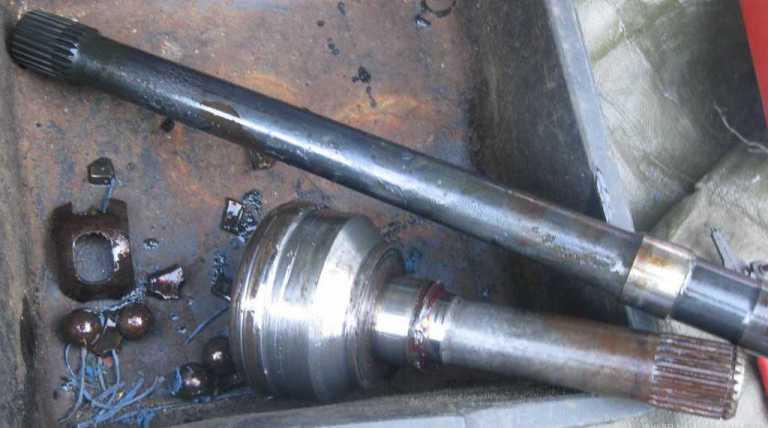

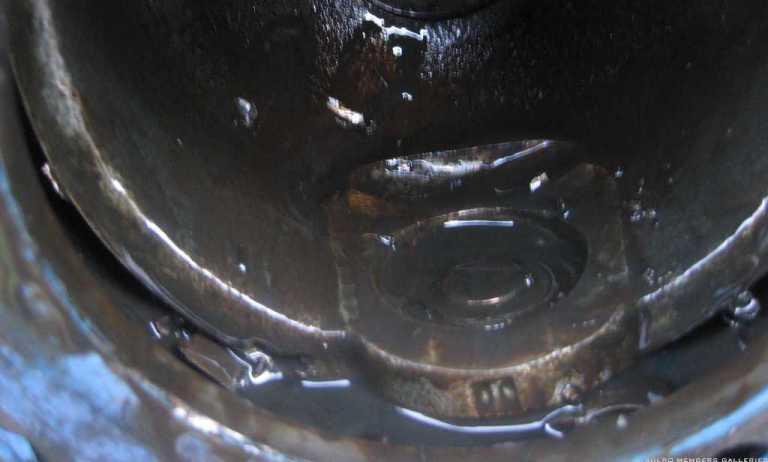

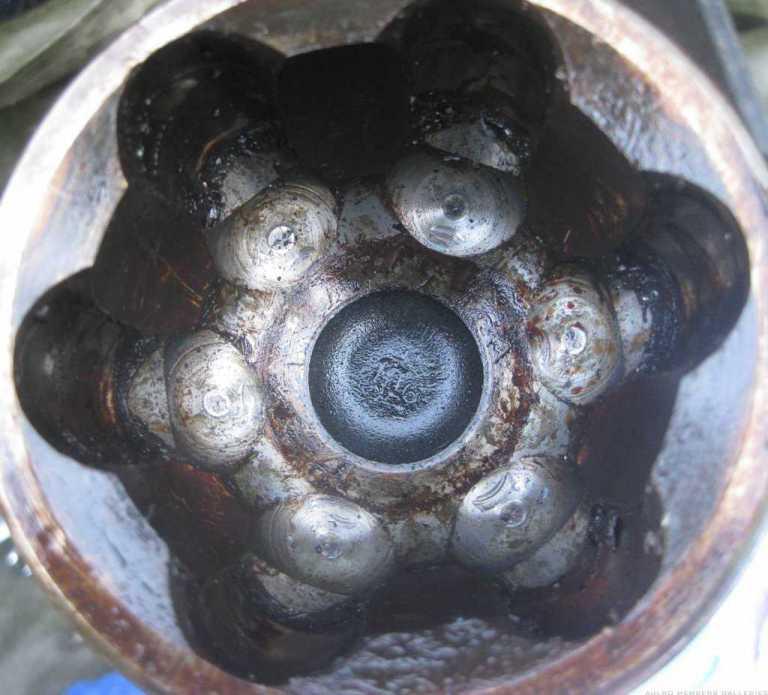

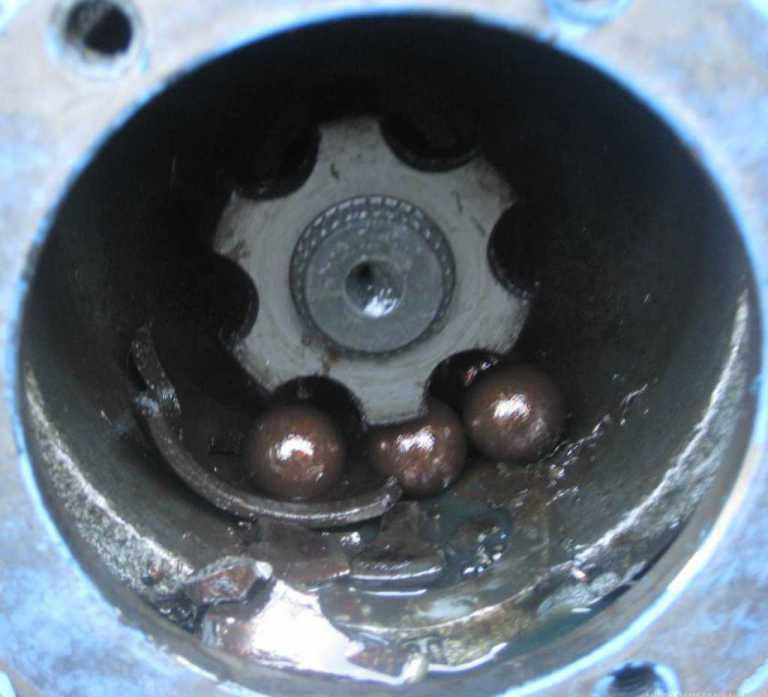

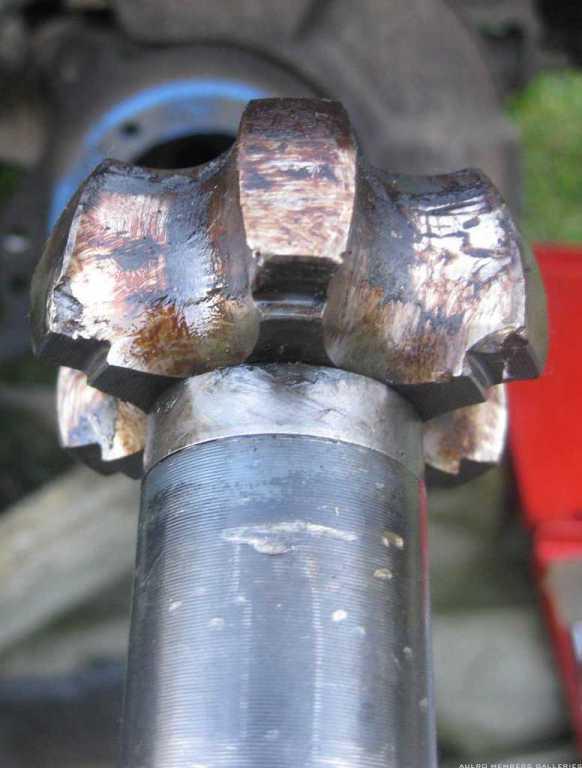

    CV joint explosion!

    I was feeling a little guilty seeing the number of pics Tony has posted, so get a gander at these.




















    I think we have a failure to proceed.

    I'm replacing the swivel pin seal and bearings while I'm at it, since I'm guessing they're full of metal now.

    Hoping that the swivel ball isn't scarred.

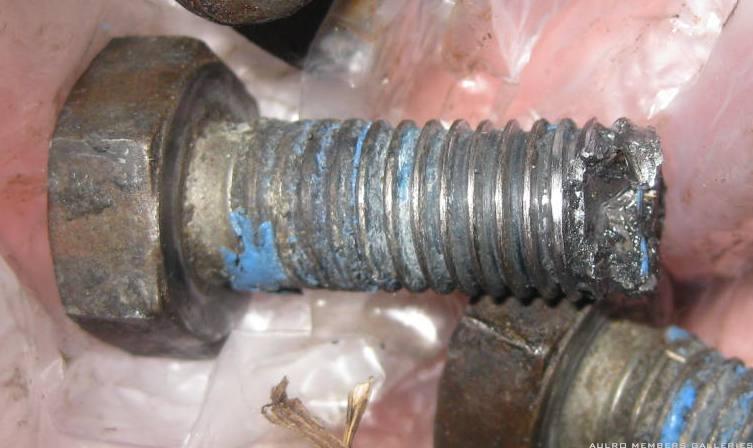

    The bolt is one of the stub axle bolts, it mucked up the female thread a bit coming out, any suggestions of what I should do to replace it?

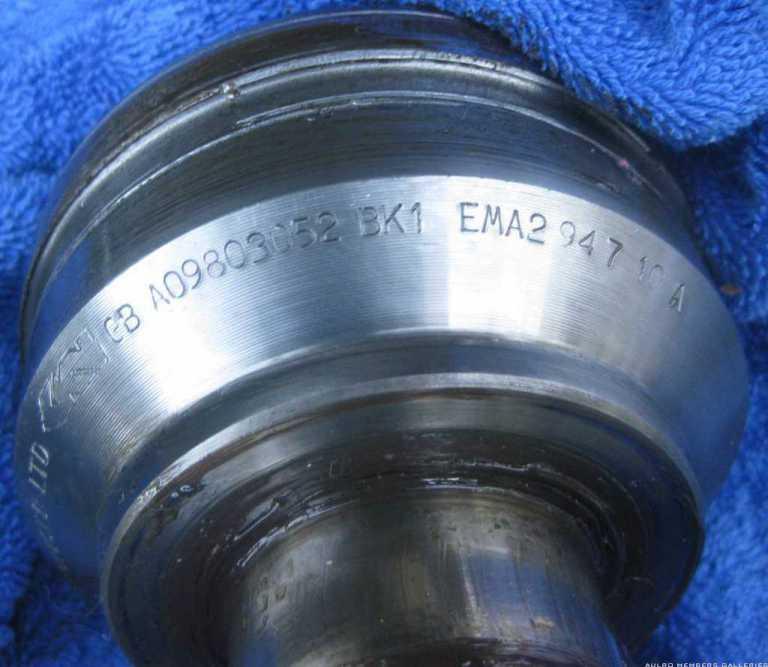

    Anyone had problems with GKN CVs before I buy another one?

    Reply With Quote Reply With Quote
  2. 10th May 2010, 08:39 PM #2
    stig0000's Avatar
    stig0000
    stig0000 is offline Wizard
    Join Date
    Nov 2008
    Location
    where every one holidays, sunny coast
    Posts
    1,712
    Total Downloaded
    0
    nice effort, how did you break it, lotsa skinny pedal
    Reply With Quote Reply With Quote
  3. 10th May 2010, 08:42 PM #3
    one_iota's Avatar
    one_iota
    one_iota is offline Moderator Gold Subscriber
    Join Date
    Jul 2003
    Location
    Sydney's gritty inner west (2204) and verdant Mount Wilson
    Posts
    7,446
    Total Downloaded
    0
    Nice photos Simon ....

    pity about the subject.
    Mahn England

    DEFENDER 110 D300 SE '23 (the S M E G)

    Ex DEFENDER 110 wagon '08 (the Kelvinator)
    http://www.aulro.com/afvb/members-rides/105691-one_iotas-110-inch-kelvinator.html

    Ex 300Tdi Disco:


    Reply With Quote Reply With Quote
  4. 10th May 2010, 09:14 PM #4
    abaddonxi's Avatar
    abaddonxi
    abaddonxi is offline Moderator
    Join Date
    Jan 1970
    Location
    2780
    Posts
    8,257
    Total Downloaded
    0
    Might've been the tonne of gravel in the tray and getting over that terrible lump getting into the garden.

    I was driving back to get another tonne and lost all go until I locked the diff and drove around the block home.

    I'd had the odd CV joint clunk for a while, although they were more clunky than other CV joint clunks I'd heard before
    Reply With Quote Reply With Quote
  5. 10th May 2010, 09:17 PM #5
    Slunnie's Avatar
    Slunnie
    Slunnie is offline Swaggie Gold Subscriber
    Join Date
    Jan 1970
    Location
    Central West NSW
    Posts
    14,145
    Total Downloaded
    99.87 MB
    Nice~

    Lucky it was just the cage so hopefully the damage was limited.
    Cheers
    Slunnie


    ~ Discovery II Td5 ~ Discovery 3dr V8 ~ Series IIa 6cyl ute ~ Series II V8 ute ~
    Reply With Quote Reply With Quote
  6. 11th May 2010, 02:57 PM #6
    Rangier Rover Guest
    Great pics.
    That was a good explosion as opposed to taking the inner axle out as well You didn't drive to far with it like that did you?
    Reply With Quote Reply With Quote
  7. 11th May 2010, 07:30 PM #7
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,497
    Total Downloaded
    0
    to fix the female thread its just a case of drill and tap, if the tap is a little loose you can try reassembling with some loctite form-a-thread (read the manual for that stuff, get the proper preperation loctites as well and use them) or drill it out and helicoil it.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
  8. 13th May 2010, 12:42 PM #8
    abaddonxi's Avatar
    abaddonxi
    abaddonxi is offline Moderator
    Join Date
    Jan 1970
    Location
    2780
    Posts
    8,257
    Total Downloaded
    0
    We don't stock blue locktite in Katoomba.

    And somebody borrowed my bottle, think he might have used it to fix his tricycle.

    All of it.
    Reply With Quote Reply With Quote
  9. 13th May 2010, 09:58 PM #9
    rick130's Avatar
    rick130
    rick130 is offline Moderator Gold Subscriber
    Join Date
    Jan 1970
    Location
    NSW far north coast
    Posts
    17,285
    Total Downloaded
    0
    Quote Originally Posted by abaddonxi View Post
    We don't stock blue locktite in Katoomba.

    And somebody borrowed my bottle, think he might have used it to fix his tricycle.

    All of it.
    Auto One at Leura ? (are they still there ?? )
    Reply With Quote Reply With Quote
  10. 13th May 2010, 10:15 PM #10
    abaddonxi's Avatar
    abaddonxi
    abaddonxi is offline Moderator
    Join Date
    Jan 1970
    Location
    2780
    Posts
    8,257
    Total Downloaded
    0
    Quote Originally Posted by rick130 View Post
    Auto One at Leura ? (are they still there ?? )
    Yep, can just about spit through their window from my place.
