Thread: Fairey capstan winch - bent base plate

  1. 23rd March 2014, 10:28 PM #1
    phin
    phin is offline Master
    Join Date
    Nov 2008
    Posts
    133
    Total Downloaded
    0

    Fairey capstan winch - bent base plate

    Hi,

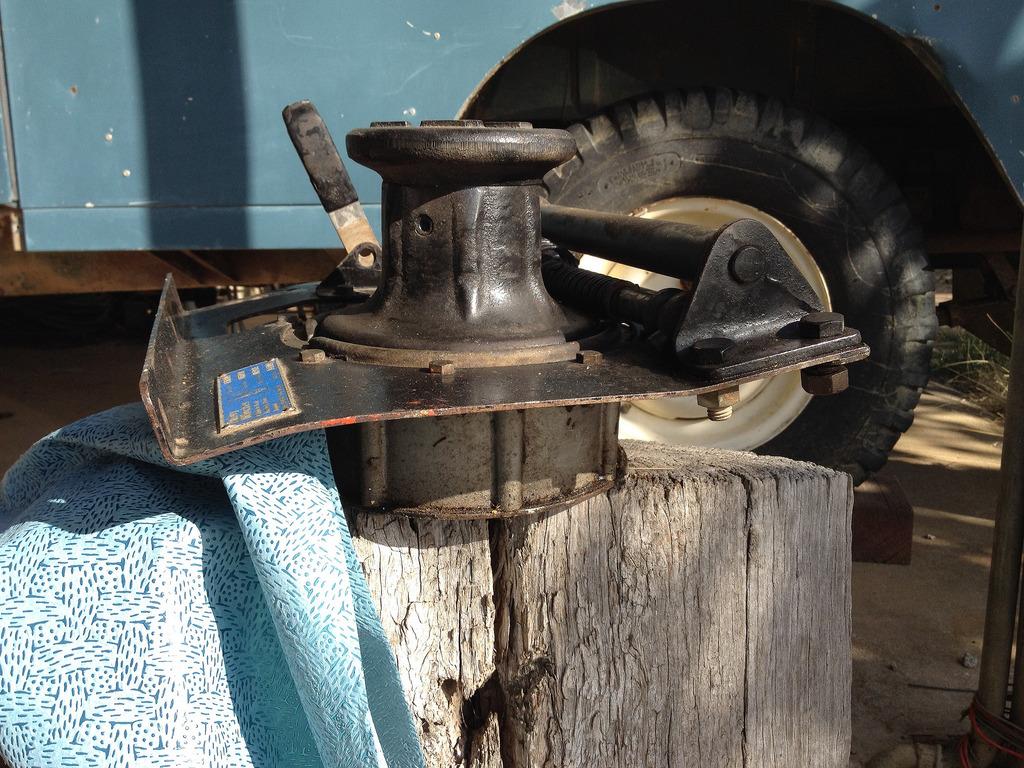

    I picked up a Fairey capstan winch for my Series III today. The base plate is bent in a few places, looks like it's either been in a crash or been placed under too much pressure. Any idea whether it's acceptable to simply belt the base plate back into shape, or is it better to spend the 60 euro and get a new galvanised one?



    many thanks
    Phin
    Reply With Quote Reply With Quote
  2. 24th March 2014, 06:12 AM #2
    87County's Avatar
    87County
    87County is offline AT REST
    Join Date
    May 2007
    Location
    in the wild New England, NSW
    Posts
    4,918
    Total Downloaded
    0
    Well, that's a good find.

    As I would not be too bothered about originality, I would be getting some 10mm high tensile aluminium plate and replacing it with that - no doubt purists will have different opinions.

    What part of the world are you in phin?
    Reply With Quote Reply With Quote
  3. 24th March 2014, 08:00 AM #3
    clive22
    clive22 is offline Master
    Join Date
    Jul 2008
    Posts
    433
    Total Downloaded
    0
    Looks to me like the plate at the front at least is being deformed by
    the up forces when the rope is at the top of capstan and contacting the upper roller.

    If there is room I'd stiffen (after straightening) it by adding an angle say 50x50x5 each side, bolted/welded along the full length. Leg could point up or down depending on space around.

    Clive
    Reply With Quote Reply With Quote
  4. 24th March 2014, 02:57 PM #4
    phin
    phin is offline Master
    Join Date
    Nov 2008
    Posts
    133
    Total Downloaded
    0
    Many thanks. I suppose it's possible someone didn't use the fairlead and had the rope up too high as well. The original base is 3mm steel, I can get a new laser cut base plate in 4mm steel from Landrover Winches: Mechanical Capstan Winches . Perhaps this is an easier option.

    I'm in Melbourne, but the winch (and Land Rovers) are up in Euroa in north-east Victoria.

    cheers Phin
    Reply With Quote Reply With Quote
