Another 300TDi Head gasket

**Tins** · 26th January 2016, 01:12 PM

Originally Posted by rick130

I wouldn't sweat 110*, seen that more times than I'd care to admit and it's within Land Rovers engine temp limits for the Tdi, even if it's scary seeing it there.

Fair enough. Just it was so out of character for the car. I doubt much harm was done, and I'm actually sort of glad as its forced my hand to get a number of things done I've been putting off.

**Tins** · 4th March 2016, 12:44 PM

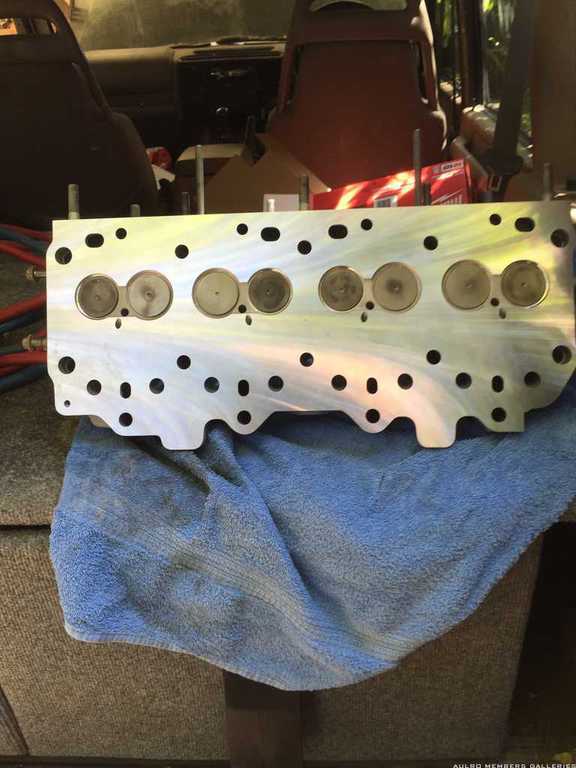

OK, after all the faffing around with the crank pulley bolt, I have the belt fitted. Time to put the head back on. The head was taken down .005", and the valves were seated to suit.
[IMG]

[/IMG]

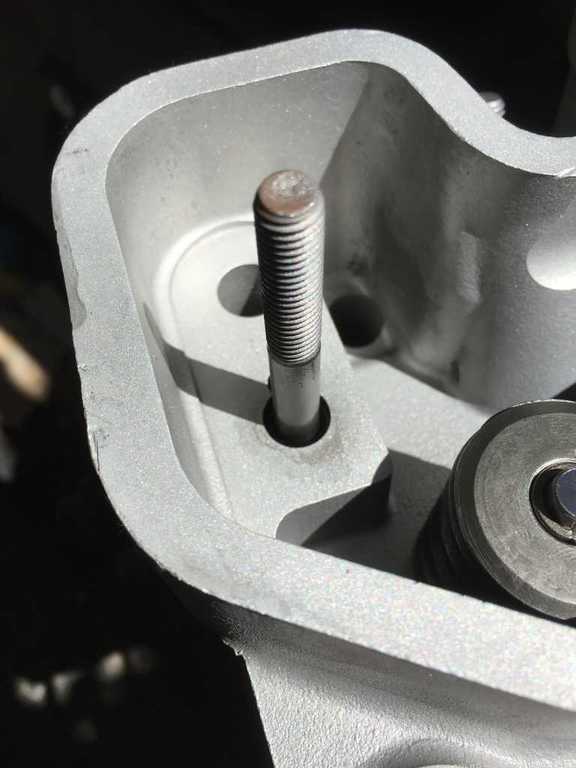

I noticed something though. It looks to me like there should be a roll pin type dowel on the front post of the rocker shaft. I don't remember seeing one. So, have I lost it, or wasn't there one there at all?

[IMG]

[/IMG]

**loanrangie** · 4th March 2016, 04:21 PM

Isnt that the oil feed hole for the rocker gear ?

**Tins** · 4th March 2016, 10:31 PM

Originally Posted by loanrangie

Isnt that the oil feed hole for the rocker gear ?

I think so. That's why I'm asking. I'm unsure if there should be a roll pin or sleeve that fits in there to make sure the oil is fed.
Like I said, I don't remember one being there, but I don't want to put it all together and find my rockers running dry.

**loanrangie** · 4th March 2016, 11:04 PM

No there is no roll pin or dowel missing , on my old head its just a chamfered hole.

Sent from my GT-I9300 using AULRO mobile app

**Tins** · 5th March 2016, 10:43 AM

Thank you for that. I didn't think I missed it, but I'm a clumsy fella.
