Page 1 of 2 12 LastLast
Results 1 to 10 of 18

Thread: How to cut gears

  1. 2nd November 2016, 08:47 AM #1
    goingbush's Avatar
    goingbush
    goingbush is offline ForumSage
    Join Date
    Jul 2011
    Location
    Yarrawonga, Vic
    Posts
    6,568
    Total Downloaded
    0

    How to cut gears

    I know a few on here have Lathes and Milling machines, I picked up more tips watching this video than I'd have found out by myself in a year , and I don't even speak Russian, Not a DRO in sight , all freehand, the guys got skills

    [ame]https://youtu.be/doOgogt0-oA[/ame]
    Reply With Quote Reply With Quote
  2. 2nd November 2016, 02:13 PM #2
    Surrufus's Avatar
    Surrufus
    Surrufus is offline Master
    Join Date
    May 2015
    Location
    Near Fremantle, WA
    Posts
    168
    Total Downloaded
    0
    I wish we had an overarm mill at work!
    Reply With Quote Reply With Quote
  3. 2nd November 2016, 02:29 PM #3
    incisor's Avatar
    incisor
    incisor is offline SysAdmin (Owner) Vendor
    Join Date
    Apr 2002
    Location
    Godwin Beach 4511
    Posts
    20,691
    Total Downloaded
    32.38 MB
    brings back memories...
    2007 Discovery 3 SE7 TDV6 2.7
    2012 SZ Territory TX 2.7 TDCi

    "Make the lie big, make it simple, keep saying it, and eventually they will believe it." -- a warning from Adolf Hitler
    "If you don't have a sense of humour, you probably don't have any sense at all!" -- a wise observation by someone else
    'If everyone colludes in believing that war is the norm, nobody will recognize the imperative of peace." -- Anne Deveson
    “What you leave behind is not what is engraved in stone monuments, but what is woven into the lives of others.” - Pericles
    "We can ignore reality, but we cannot ignore the consequences of ignoring reality.” – Ayn Rand
    "The happiness of your life depends upon the quality of your thoughts." Marcus Aurelius
    Reply With Quote Reply With Quote
  4. 2nd November 2016, 02:44 PM #4
    cjc_td5's Avatar
    cjc_td5
    cjc_td5 is offline ChatterBox
    Join Date
    Aug 2007
    Location
    Bunbury, WA
    Posts
    2,507
    Total Downloaded
    0
    At 5:45 did he cut the keyways using the longitudinal travel only with the lathe not spinning? Wow, I wouldn't have thought of doing it that way.
    Reply With Quote Reply With Quote
  5. 2nd November 2016, 02:58 PM #5
    goingbush's Avatar
    goingbush
    goingbush is offline ForumSage
    Join Date
    Jul 2011
    Location
    Yarrawonga, Vic
    Posts
    6,568
    Total Downloaded
    0

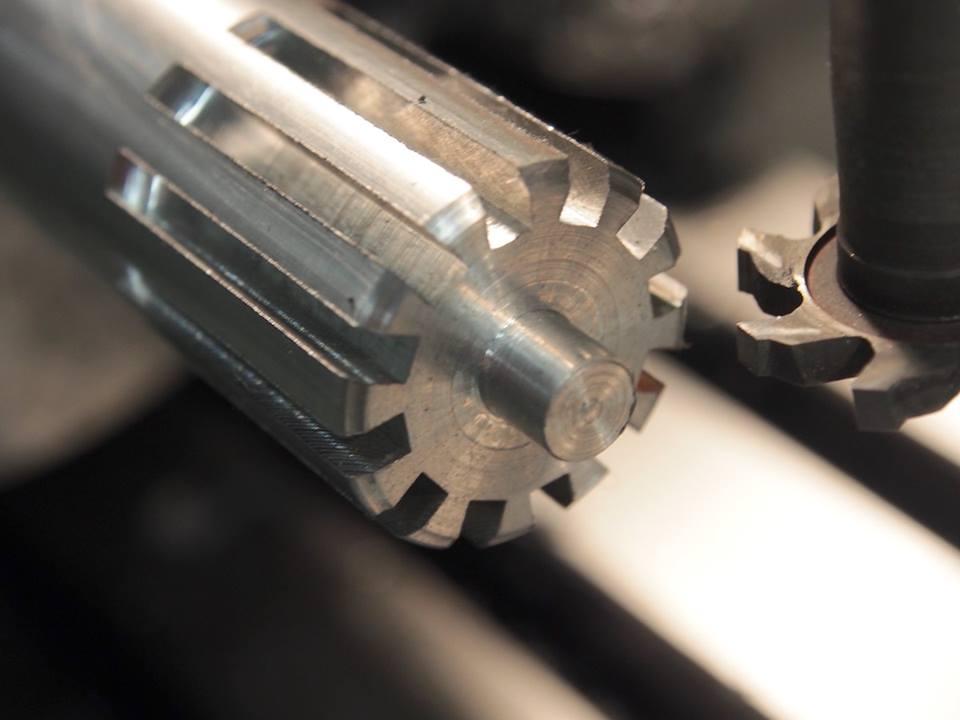

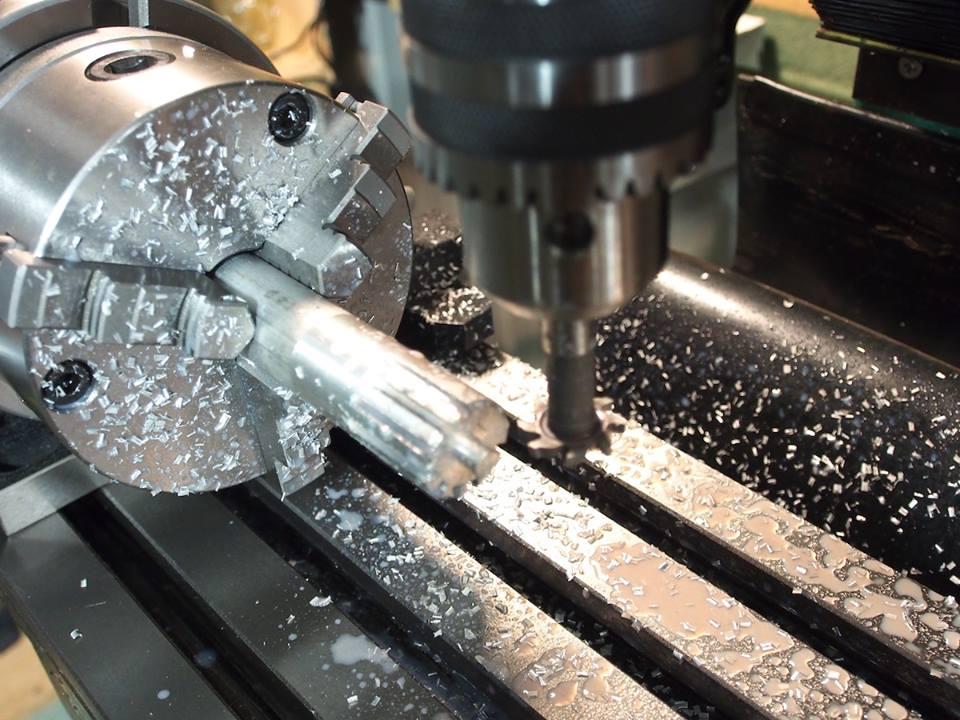

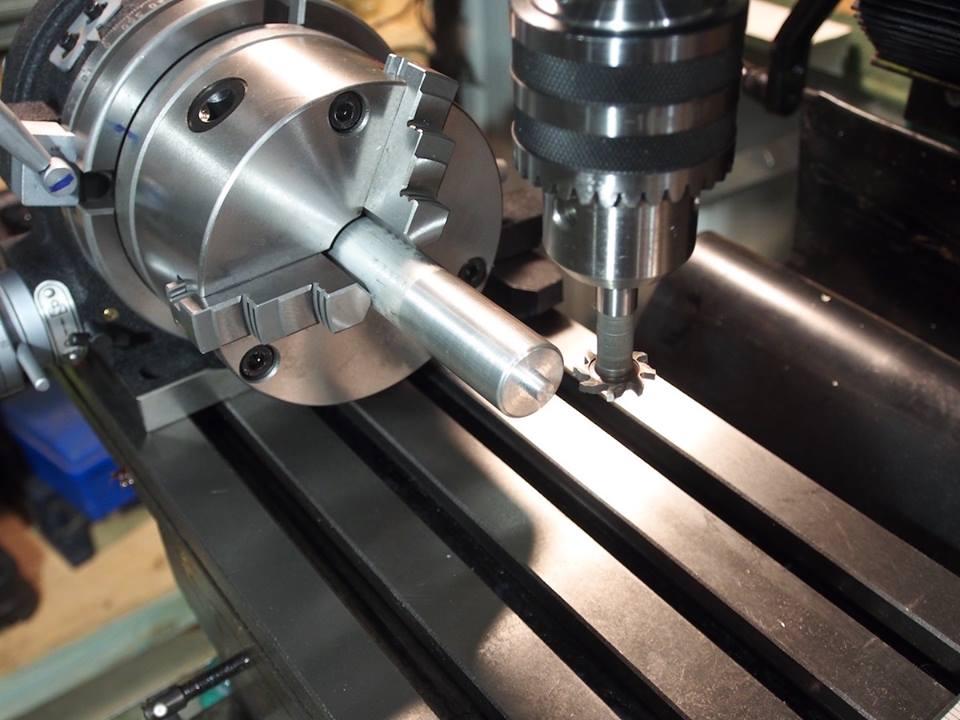

    Making change gears (spur gears) be no problems with vertical mill using appropriate tool and arbor, I was testing out my new (cheap chinese) rotary table to see how well it divides, - obviously with the wrong tool for spline making - a 3mm slot cutter , in a drill chuck instead of the correct collet chuck / arbor . It was accurate considering I just used the degree wheel , not the dividing plates. An end mill from overhead would be better again , but obviously only a poor substitute compared to a Horizontal mill .









    Hmm, maybe I can make some spare axles for my Lightweight ,
    Reply With Quote Reply With Quote
  6. 2nd November 2016, 03:01 PM #6
    goingbush's Avatar
    goingbush
    goingbush is offline ForumSage
    Join Date
    Jul 2011
    Location
    Yarrawonga, Vic
    Posts
    6,568
    Total Downloaded
    0
    Quote Originally Posted by cjc_td5 View Post
    At 5:45 did he cut the keyways using the longitudinal travel only with the lathe not spinning? Wow, I wouldn't have thought of doing it that way.
    thats one of the tips I picked up - dont even need a keyway broach , just a piece of sharp HSS
    .
    Reply With Quote Reply With Quote
  7. 2nd November 2016, 03:09 PM #7
    cjc_td5's Avatar
    cjc_td5
    cjc_td5 is offline ChatterBox
    Join Date
    Aug 2007
    Location
    Bunbury, WA
    Posts
    2,507
    Total Downloaded
    0
    Have often pondered how to use my lathe as a mill, ie mount the work piece on the table somehow and the cutting bit in the lathe head?
    Reply With Quote Reply With Quote
  8. 2nd November 2016, 03:21 PM #8
    goingbush's Avatar
    goingbush
    goingbush is offline ForumSage
    Join Date
    Jul 2011
    Location
    Yarrawonga, Vic
    Posts
    6,568
    Total Downloaded
    0
    Quote Originally Posted by cjc_td5 View Post
    Have often pondered how to use my lathe as a mill, ie mount the work piece on the table somehow and the cutting bit in the lathe head?
    Ive got a small sliding mill table with T slots, only about 4x5" table if your interested, take tool post off lathe and put mill table in its place , put cutting tool in lathe chuck . I don't think I'll need it now Ive got the mill.

    this is the exact one, Lathe Vertical Milling Slide Attachment Fixed Base Suitable For Myford 7 Series | eBay

    Alternatively if you've got a Quickchange tool post you can hold the work direct in the tool post - have done that to make keyways etc.
    Reply With Quote Reply With Quote
  9. 2nd November 2016, 03:26 PM #9
    cjc_td5's Avatar
    cjc_td5
    cjc_td5 is offline ChatterBox
    Join Date
    Aug 2007
    Location
    Bunbury, WA
    Posts
    2,507
    Total Downloaded
    0
    Thanks for the offer! I'm not ready at the moment. I might have a look in Hare & Forbes when I am in Perth next....

    Dammit, you've got me Youtubing machining when I should be working!!!!
    Reply With Quote Reply With Quote
  10. 2nd November 2016, 05:05 PM #10
    POD's Avatar
    POD
    POD is offline ChatterBox Subscriber
    Join Date
    Jun 2008
    Location
    Drouin East, Vic
    Posts
    2,781
    Total Downloaded
    0
    Quote Originally Posted by cjc_td5 View Post
    Dammit, you've got me Youtubing machining when I should be working!!!!
    Sounds like my life these days

    I thought about getting a milling attachment for the lathe- bought a milling machine instead. Also I cut a few internal keyways by 'racking' in the lathe- very hard on both the machine and the operator. I bought a metal shaper a couple of months ago- keyways are now a breeze and internal splines will be coming soon.
    Currently working on making the missing components of a universal dividing head for the mill, this will enable cutting of gears with any number up to 400 teeth, also helicals. Fun stuff.
    Reply With Quote Reply With Quote
Page 1 of 2 12 LastLast
« Lightforce DL230 HTX | Disovery V8 Series 1 1997, homemade snorkel »

Bookmarks

Bookmarks

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •

Forum Rules

Search AULRO.com ONLY!
 Search All the Web!
