Thread: Fuel line to filter connector failure

  1. 21st July 2017, 09:17 PM #1
    rar110's Avatar
    rar110
    rar110 is offline ForumSage Subscriber
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    5,778
    Total Downloaded
    0

    Fuel line to filter connector failure

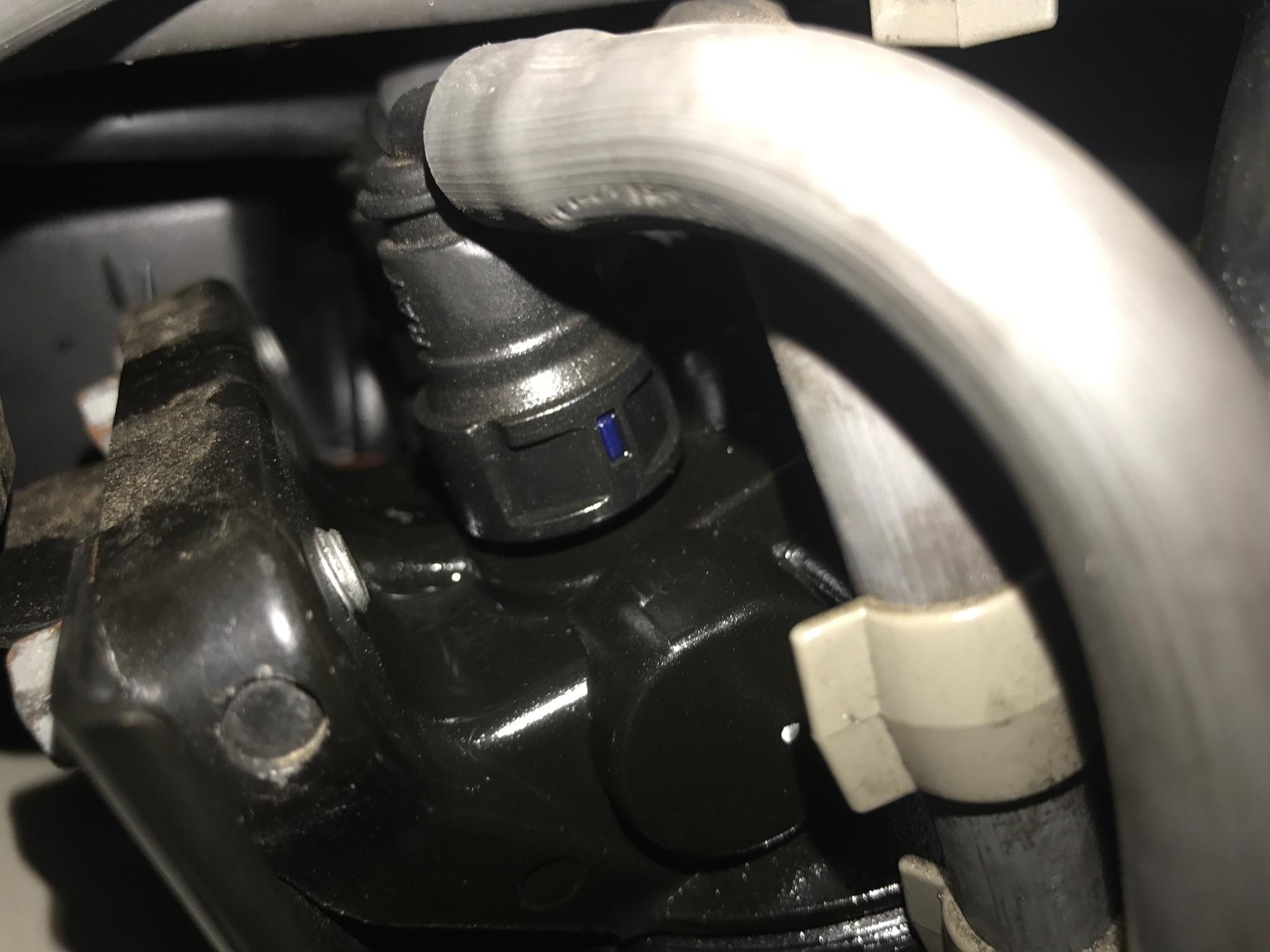

    The fuel line push button connector to the fuel filter has failed on my L322 tdv8. They look the same as our other diesel car and are probably a standard fitting.

    Can this be sourced locally? It would be good to have this clips and lines done here. Pics bellow. Any advice appreciated.
    Thanks.


    There should be a blue button on the last pic.
    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137
    Reply With Quote Reply With Quote
  2. 22nd July 2017, 12:03 PM #2
    rar110's Avatar
    rar110
    rar110 is offline ForumSage Subscriber
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    5,778
    Total Downloaded
    0

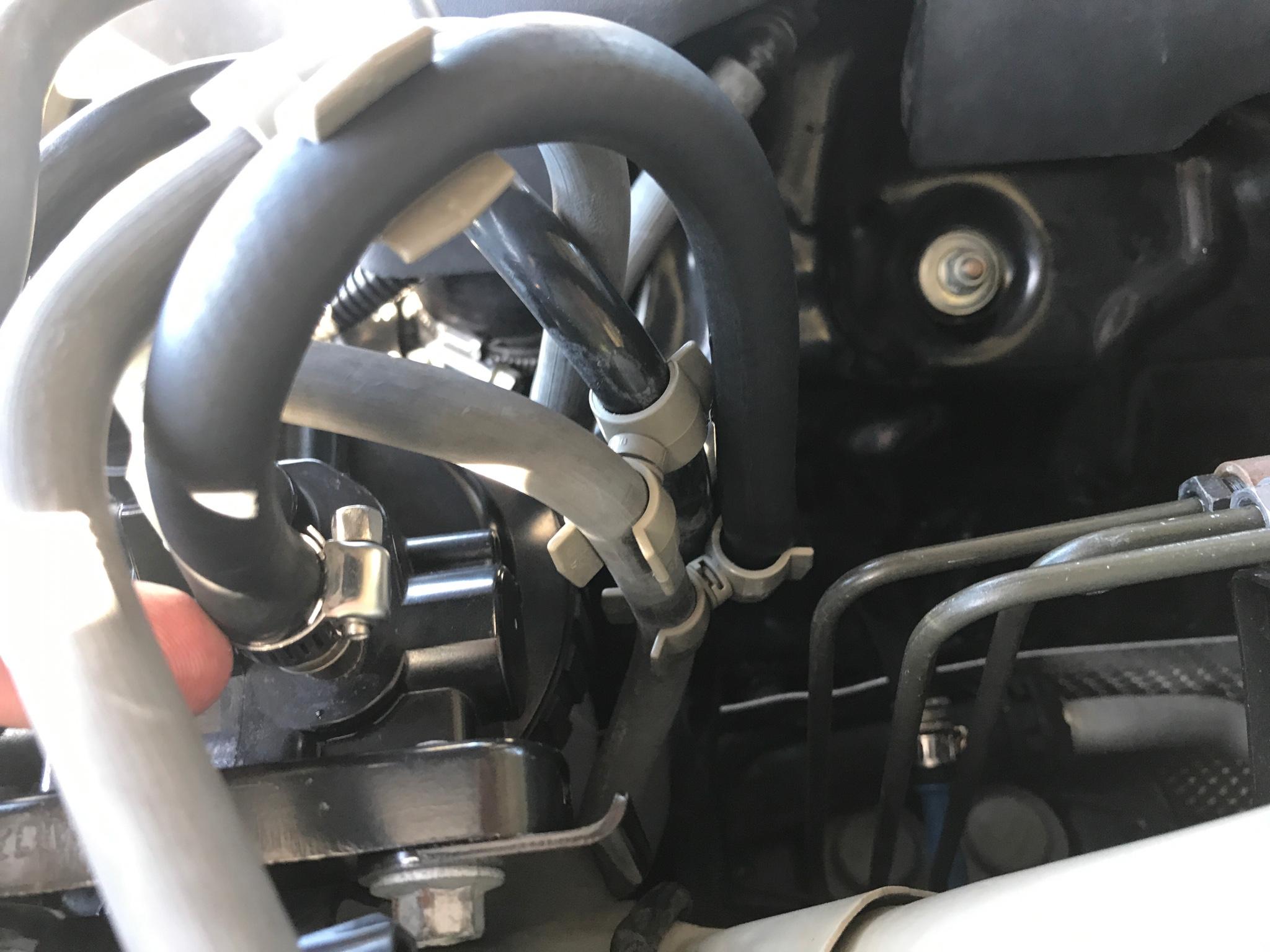

    My interim measure as no parts in Australia. Fuel injector hose and screw clamps.

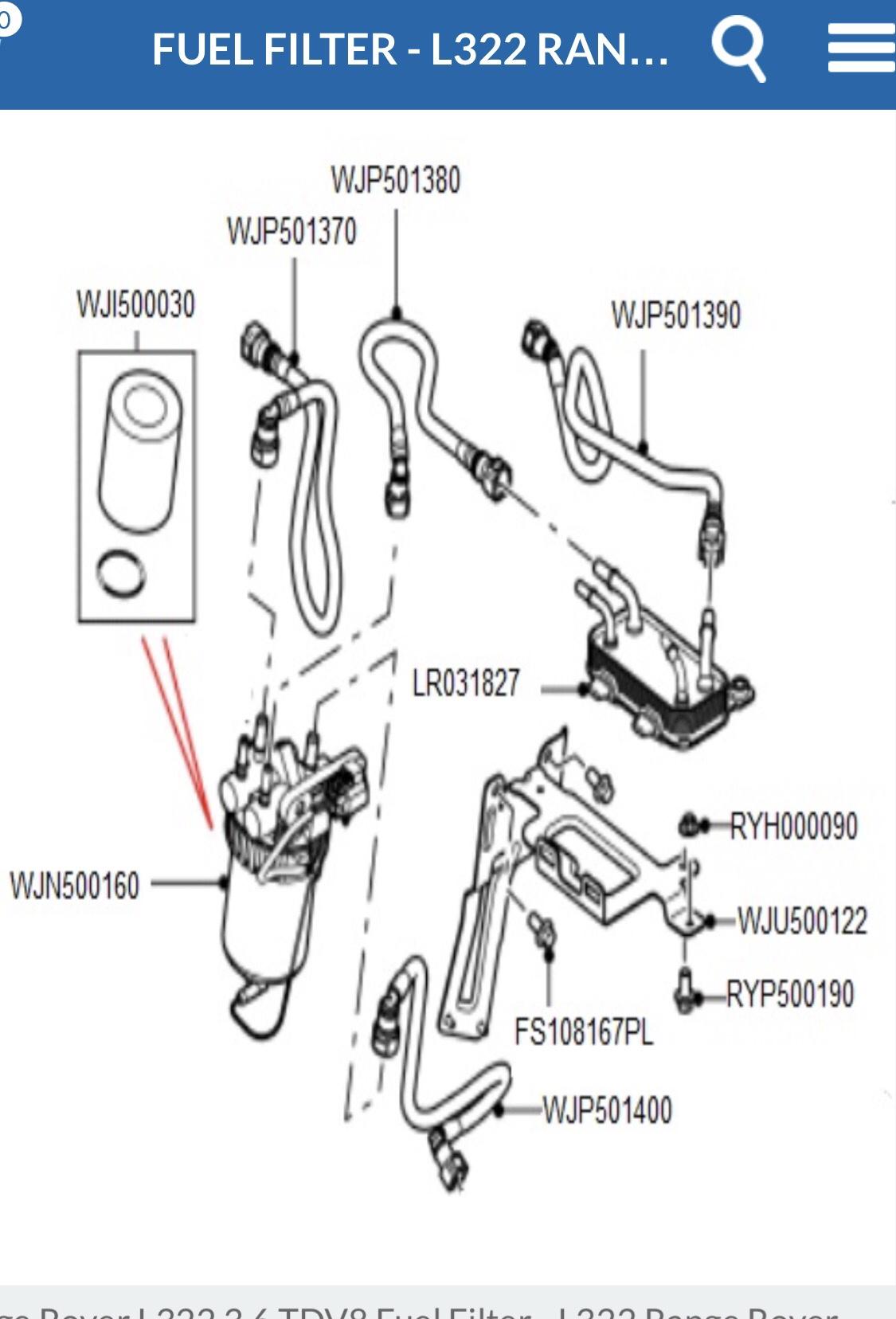

    Part number is WJP501400. Which is a fuel fired heater fuel supply pipe. I didn't know I had a fuel fired heater.
    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137
    Reply With Quote Reply With Quote
  3. 23rd July 2017, 04:21 PM #3
    Roverlord off road spares
    Roverlord off road spares is offline AT REST
    Major part of the heart and soul of AULRO.com
     Vendor

    Subscriber
    Join Date
    Jul 2012
    Location
    Tecoma Vic
    Posts
    9,642
    Total Downloaded
    0
    Quote Originally Posted by rar110 View Post
    My interim measure as no parts in Australia. Fuel injector hose and screw clamps.

    Part number is WJP501400. Which is a fuel fired heater fuel supply pipe. I didn't know I had a fuel fired heater.
    who told you there was no parts in Australia? Is WJP501400 what your chasing?

    Reply With Quote Reply With Quote
  4. 23rd July 2017, 04:48 PM #4
    BigJon's Avatar
    BigJon
    BigJon is offline ForumSage
    Join Date
    Jan 1970
    Location
    Adelaide - Torrens Park
    Posts
    7,291
    Total Downloaded
    0
    Quote Originally Posted by rar110 View Post
    I didn't know I had a fuel fired heater.
    Mine has one. Below about 13 degrees ambient temp you can hear and smell it running.
    Reply With Quote Reply With Quote
  5. 29th July 2017, 09:02 PM #5
    rar110's Avatar
    rar110
    rar110 is offline ForumSage Subscriber
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    5,778
    Total Downloaded
    0

    Fuel line to filter connector failure

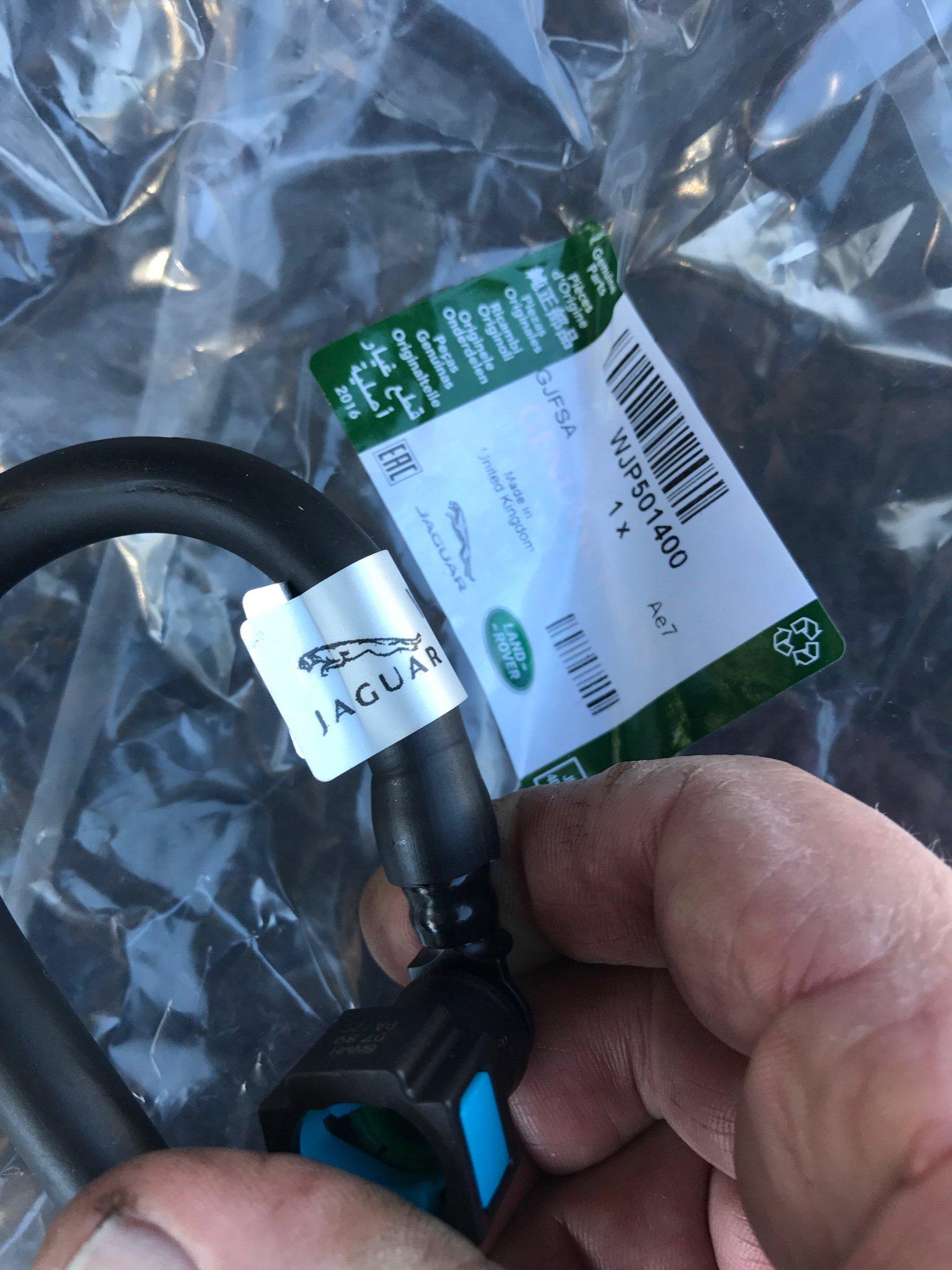

    Parts arrived and fitted. The label was interesting. I realise Jag is still part of the group. No LR label on the part.
    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137
    Reply With Quote Reply With Quote
