Thread: EU3 Td5 camshaft cover gasket - should sealant be applied to the rear D?

  1. 4th June 2018, 11:34 AM #1
    twr7cx
    twr7cx is offline YarnMaster Supporter
    Join Date
    Feb 2011
    Location
    Hobart, Tasmania, Australia
    Posts
    3,828
    Total Downloaded
    0

    Question EU3 Td5 camshaft cover gasket - should sealant be applied to the rear D?

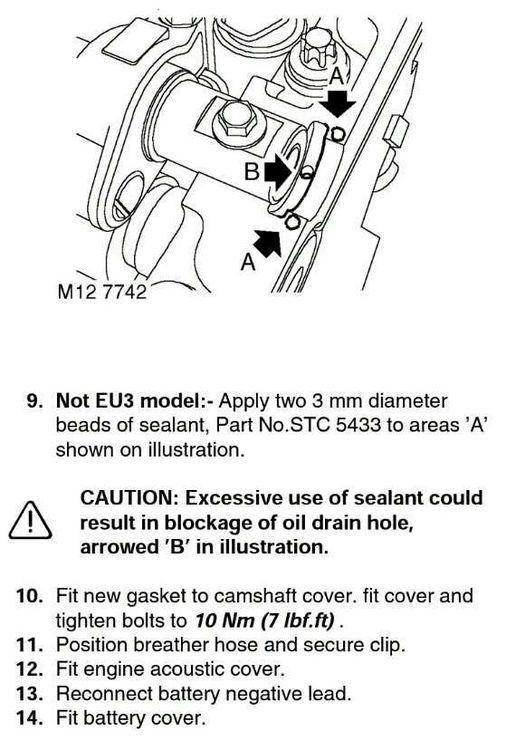

    I need to change out my injector wiring loom and therefore the camshaft cover gasket. Have been reading in regards to apply a 3mm bead of silicone on the rear D section, but the manual states this is for not EU3 models leaving one to assume not to follow this on an EU3 motor?:


    _20180316_184223.thumb.JPG.37e2dc5bfe944c72c4285e3 1f6be7a55.JPG

    A copy of the LR Tech Bulletin is available in the original post of Td5 cam cover sealant
    Reply With Quote Reply With Quote
  2. 4th June 2018, 04:28 PM #2
    discorevy
    discorevy is offline ChatterBox Subscriber
    Join Date
    Nov 2014
    Location
    Nirvana near Albany W.A.
    Posts
    2,480
    Total Downloaded
    0
    I usually put a very small blob on the position A with eu2 and 3 , even though the 3 has a larger diameter 1/2 moon designed to eliminate leakage at this point , never had an issue.
    Reply With Quote Reply With Quote
  3. 4th June 2018, 06:04 PM #3
    justinc's Avatar
    justinc
    justinc is offline Swaggie Vendor
    Join Date
    Aug 2006
    Location
    Kingston, Tassie, OZ.
    Posts
    13,728
    Total Downloaded
    0
    Always. Only a thin spread/ bead through the half moon shape on the head. NONE anywhere else.

    J
    The Isuzu 110. Solid and as dependable as a rock, coming soon with auto box😊
    The Range Rover L322 4.4.TTDV8 ....probably won't bother with the remap..😈
    Reply With Quote Reply With Quote
  4. 4th June 2018, 06:07 PM #4
    rangieman's Avatar
    rangieman
    rangieman is offline Swaggie
    Join Date
    Jan 1970
    Location
    Free Again Thanks Dan
    Posts
    10,150
    Total Downloaded
    0
    Mine is a Eu3 and i have replaced the gasket twice in my ownership and yes i use a thin bead
    Reply With Quote Reply With Quote
  5. 4th June 2018, 07:52 PM #5
    justinc's Avatar
    justinc
    justinc is offline Swaggie Vendor
    Join Date
    Aug 2006
    Location
    Kingston, Tassie, OZ.
    Posts
    13,728
    Total Downloaded
    0
    Quote Originally Posted by rangieman View Post
    Mine is a Eu3 and i have replaced the gasket twice in my ownership and yes i use a thin bead
    Soooo not the head gasket then Chris???🤪🤪
    The Isuzu 110. Solid and as dependable as a rock, coming soon with auto box😊
    The Range Rover L322 4.4.TTDV8 ....probably won't bother with the remap..😈
    Reply With Quote Reply With Quote
  6. 4th June 2018, 08:58 PM #6
    rangieman's Avatar
    rangieman
    rangieman is offline Swaggie
    Join Date
    Jan 1970
    Location
    Free Again Thanks Dan
    Posts
    10,150
    Total Downloaded
    0
    Quote Originally Posted by justinc View Post
    Soooo not the head gasket then Chris???🤪🤪
    Nooooooooooooooooooooooooooooooooooooooooooooooooo oooooooooooooooooooo
    Reply With Quote Reply With Quote
  7. 4th June 2018, 09:16 PM #7
    twr7cx
    twr7cx is offline YarnMaster Supporter
    Join Date
    Feb 2011
    Location
    Hobart, Tasmania, Australia
    Posts
    3,828
    Total Downloaded
    0
    Quote Originally Posted by justinc View Post
    Always. Only a thin spread/ bead through the half moon shape on the head. NONE anywhere else.
    When you say through the half moon shape, do you mean go from point A on the diagram all the way through the dip to the second point A on the diagram?

    I ask as the instructions (for the non-EU3 at least) seem to indicate two seperate beads of sealant, one each side at the top edge of the half moon shape, not actually in the dip part.


    I replaced mine a few years ago with genuine LR and it's been weeping for a while now so the extra sealant might have been needed - I can't recall if I did or didn't back then. Guess I'll find out when I remove it on the weekend.
    Reply With Quote Reply With Quote
  8. 4th June 2018, 09:21 PM #8
    justinc's Avatar
    justinc
    justinc is offline Swaggie Vendor
    Join Date
    Aug 2006
    Location
    Kingston, Tassie, OZ.
    Posts
    13,728
    Total Downloaded
    0
    Ive always run a thin bead across the gasket itself while the rocker cover is upside diwn waiting to go back on just over the top of the half moon bit
    The Isuzu 110. Solid and as dependable as a rock, coming soon with auto box😊
    The Range Rover L322 4.4.TTDV8 ....probably won't bother with the remap..😈
    Reply With Quote Reply With Quote
  9. 6th June 2018, 08:44 AM #9
    Roverlord off road spares
    Roverlord off road spares is offline AT REST
    Major part of the heart and soul of AULRO.com
     Vendor

    Subscriber
    Join Date
    Jul 2012
    Location
    Tecoma Vic
    Posts
    9,642
    Total Downloaded
    0
    Quote Originally Posted by rangieman View Post
    Nooooooooooooooooooooooooooooooooooooooooooooooooo oooooooooooooooooooo
    then i better put one aside for you

    Reply With Quote Reply With Quote
  10. 6th June 2018, 06:54 PM #10
    rangieman's Avatar
    rangieman
    rangieman is offline Swaggie
    Join Date
    Jan 1970
    Location
    Free Again Thanks Dan
    Posts
    10,150
    Total Downloaded
    0
    Quote Originally Posted by Roverlord off road spares View Post
    then i better put one aside for you
    You can do what ever you like but that if and when will keep for you and ya mate
    Reply With Quote Reply With Quote
