Thread: late 80's county dash - what's original?

  1. 22nd January 2007, 11:15 PM #1
    EchiDna's Avatar
    EchiDna
    EchiDna is offline Wizard
    Join Date
    Jan 1970
    Location
    Singapore via Melbourne
    Posts
    1,938
    Total Downloaded
    0

    late 80's county dash - what's original?

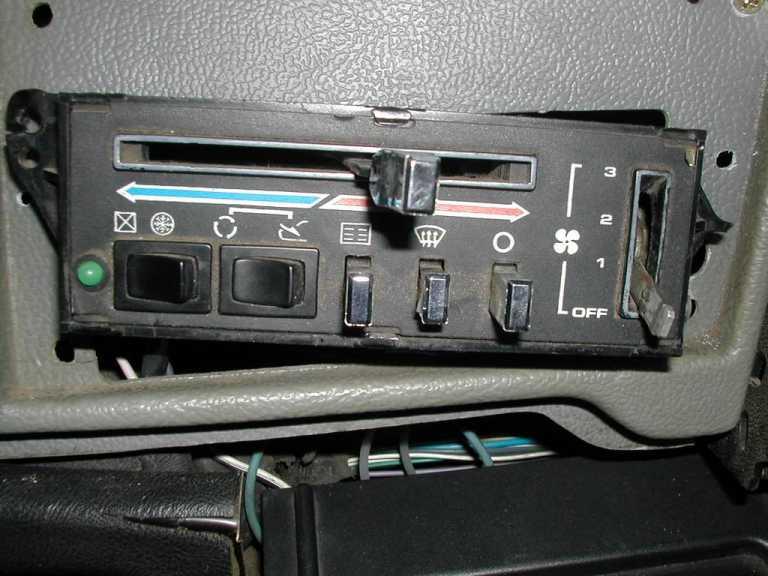

    Can anyone tell me if the below (admittedly stuffed) control panel is ridgy didge for a late 80's county 110? I'm going to rebuild the dash and want to make it 'relatively' authentic... I spose given the age there is a fair variety in what's installed, hence the question.
    Thanks in advance everyone!


    Reply With Quote Reply With Quote
  2. 23rd January 2007, 05:33 AM #2
    JDNSW's Avatar
    JDNSW
    JDNSW is online now RoverLord Silver Subscriber
    Join Date
    Jan 1970
    Location
    Central West NSW
    Posts
    29,511
    Total Downloaded
    0
    Never seen anything like that in a 110 of any age!

    John
    John

    JDNSW
    1986 110 County 3.9 diesel
    1970 2a 109 2.25 petrol
    Reply With Quote Reply With Quote
  3. 23rd January 2007, 07:56 AM #3
    wovenrovings
    wovenrovings is offline Master Supporter
    Join Date
    Jun 2006
    Location
    Bundaberg Qld.
    Posts
    632
    Total Downloaded
    0
    Looks like the ridgey didge one to me. And you are right it looks stuffed.
    84' 120" ute - 3.9 isuzu.
    Reply With Quote Reply With Quote
  4. 23rd January 2007, 08:12 AM #4
    UncleHo's Avatar
    UncleHo
    UncleHo is offline AT REST
    Join Date
    Oct 2003
    Location
    Godwin Beach Qld
    Posts
    8,688
    Total Downloaded
    0
    G'day EchiDna

    That is about an 86 5speed 110 with Factory fitted Air/Con I have a friend that has just bought an 86 with 5 speed LT 85 with that dash, Ooh what a joy to disamble that one they were the totally intergrated units, unlike the optional under dash units, Note: when reassembling make sure you don't pinch the windscreen washer tubes where they come through on the left side, we had to disssamble the dash to replace a broken R/H screen nozzle that had the tube pinched stopping water supply.

    cheers
    Reply With Quote Reply With Quote
  5. 23rd January 2007, 10:26 AM #5
    Bigbjorn
    Bigbjorn is offline Swaggie Gold Subscriber
    Join Date
    Jul 2006
    Location
    Brisbane, Inner East.
    Posts
    11,178
    Total Downloaded
    0
    That is the factory air conditioning control panel from a 1986 110. The factory air is maybe capable of cooling a small vehicle on an English summer's day, but absolutely incapable of cooling the interior of a County wagon in Western Qld. Poms have no idea of conditions outside their backyard.
    URSUSMAJOR
    Reply With Quote Reply With Quote
  6. 23rd January 2007, 10:47 AM #6
    UncleHo's Avatar
    UncleHo
    UncleHo is offline AT REST
    Join Date
    Oct 2003
    Location
    Godwin Beach Qld
    Posts
    8,688
    Total Downloaded
    0
    G'day Folks


    With That I would Agree.
    Reply With Quote Reply With Quote
  7. 23rd January 2007, 12:47 PM #7
    EchiDna's Avatar
    EchiDna
    EchiDna is offline Wizard
    Join Date
    Jan 1970
    Location
    Singapore via Melbourne
    Posts
    1,938
    Total Downloaded
    0
    thanks all and thanks UncleHo for the advice on the washers etc - I'll take special care!

    so is this a 1986 ONLY item? if so, what happened in 1987?

    also, could someone advise what the the three buttons do? the centre one is the windscreen demist - how about the other two? what does a circle represent? I figure the "square with lines on it" is probably the vents, but would like a confirmation as the bleedin thing is not conected up!
    Reply With Quote Reply With Quote
  8. 23rd January 2007, 01:28 PM #8
    isuzurover's Avatar
    isuzurover
    isuzurover is offline Swaggie
    Join Date
    Aug 2006
    Location
    WA
    Posts
    13,786
    Total Downloaded
    0
    Quote Originally Posted by EchiDna View Post
    so is this a 1986 ONLY item? if so, what happened in 1987?

    also, could someone advise what the the three buttons do? the centre one is the windscreen demist - how about the other two? what does a circle represent? I figure the "square with lines on it" is probably the vents, but would like a confirmation as the bleedin thing is not conected up!
    Pretty sure that dash was fitted to ALL air conditioned counties - from 1984 till 1989/90

    Buttons are for vents, demist, and foot level vents (from L-R).
    Reply With Quote Reply With Quote
  9. 23rd January 2007, 06:28 PM #9
    pullsy
    pullsy is offline Fossicker
    Join Date
    Jan 1970
    Location
    Townsville, QLD
    Posts
    71
    Total Downloaded
    0
    Yep- That is the same as I had in my 84 County. Have fun connecting up all the vacuum switches to vents etc. When I pulled mine out it was a nightmare to even reconsinder putting it back in.
    Cheers
    Pullsy
    Reply With Quote Reply With Quote
  10. 23rd January 2007, 06:39 PM #10
    EchiDna's Avatar
    EchiDna
    EchiDna is offline Wizard
    Join Date
    Jan 1970
    Location
    Singapore via Melbourne
    Posts
    1,938
    Total Downloaded
    0
    *sigh*

    well it's either a case of go original or rebuild the dash into something that
    1, has useable vents
    2, has decent aircon (not knee chillers)
    3, has some lockable storage
    Reply With Quote Reply With Quote
