Reply With QuoteThe floor will have enough clearance but you can easily bolt in a floor from any manual rangie up to late 85/86 when the efi model came out(it has a spot welded in floor).
Fossicker
Hi Everyone,
I would like any feed back concerning the conversion of an 84 model Range Rover to a 200 Tdi. I have all the gear ready and waiting including the 200 Tdi and LT 77 five speed transmission. My main concern is that the Rangie is an Auto and if I need to procure a new floor pannel to accept the LT 77. If anyone has done this conversion or knows of someone who has I would be interested in any hints and tips.
Cheers
Mark
LordRover
SubscriberThe floor will have enough clearance but you can easily bolt in a floor from any manual rangie up to late 85/86 when the efi model came out(it has a spot welded in floor).
MY08 TDV6 SE D3- permagrin ooh yeah
2004 Jayco Freedom tin tent
1998 Triumph Daytona T595
1974 VW Kombi bus
1958 Holden FC special sedan
Master
SubscriberThink about a 2" body lift as without this the rear of the engine is tight to the body and nearly impossible to get the rocker cover off, and #4 injector out etc. Makes engine access much easier, and leaves plenty of room between gearbox etc and body.
I went from manual to auto, you will need the console bits to accommodate the gearstick, but body was fine.
Michael T
2011 L322 Range Rover 4.4 TDV8 Vogue
Aussie '88 RR Tdi300 (+lpg), Auto (RIP ... now body removed after A pillar, chassis extension to 130 & fire tender tray.)
Master
Where abouts are you, I have a spare manual tranny tunnel from a 77 which should bolt in. Not worth it though if your not in SA!
What type of auto are you taking out? an old 3sp?
2007/2002/2000/1994/1993/1988/1987/1985/1984/1981/1979/1973 Range Rover 1986 Wadham Stringer
and a Nissan Cube............
South Australia.
YarnMaster
I know its not a 200tdi and a manual, but may be of help
http://www.users.on.net/~LRHybrid100/TDI.html
Disco 4 SDV6 Auto
Disco 4 SDV8 Dual Cab Project
Disco 2 M57 Extra Cab Project
Foton Tunland Cummins ISF
Disco 1 3 door 4.6 V8 Auto
RRC V8 Auto "Classic" Softdash
RRC 300 TDI Auto
Disco 1 TD5 Auto Buggy
Disco 1 300 Tdi Auto Ute
SAME Explorer 70HP 4x4 Tractor plus Nell Loader
Subaru GDA WRX
Triumph Bonneville SE
Yamaha TTR250
TopicToaster
Ok i did it to a 1971 Range rover in 1992
I put a 200 Tdi and Lt77 manual box out of a disco in
I take it you engine is out of a disco , (as a defender one won't fit with out changing some parts on the engine)
The Power steering box has to be three bolt one as the timing cover on the 200 Tdi will hit the 4 bolt one.
You will need to cut away the bulkhead under the center of the windscreen to get the rocker cover into the engine bay. That will be fine you wont need a body lift and you will be able to get the rocker off and the injector out. There is enough room after you cut it away. I have pics of mine somewhere when you come to it
You will have to modify the top of the tunnel only as they sit in a totally differant places as the one you are taking out . My was made and just had the gearstick sticking out untill i could get it sorted. The tunnel its self will be fine but the top of the gearbox, Where the gear leaver comes out of the gearbox will poke though the tunnel

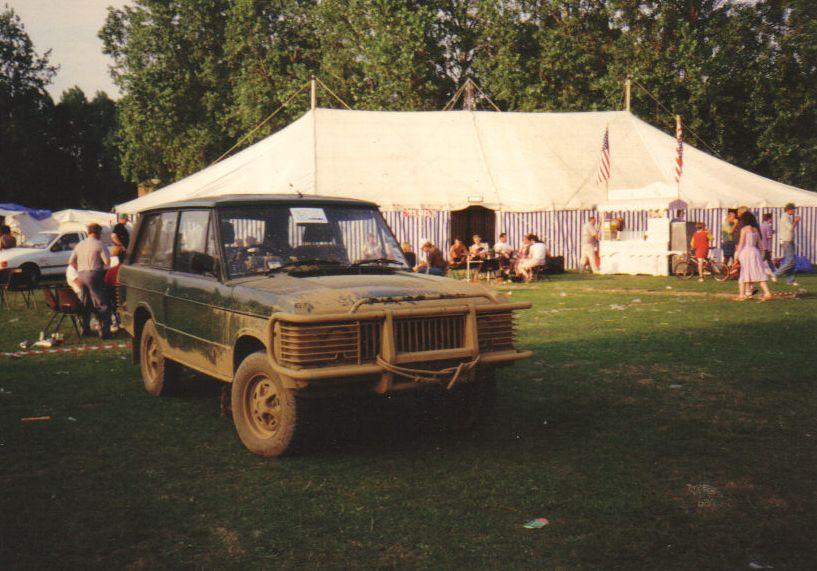

This is the range rover just after i bought it (at Billing) . It had a transit Engine in it when i bought it but had just had the 200 Tdi put in

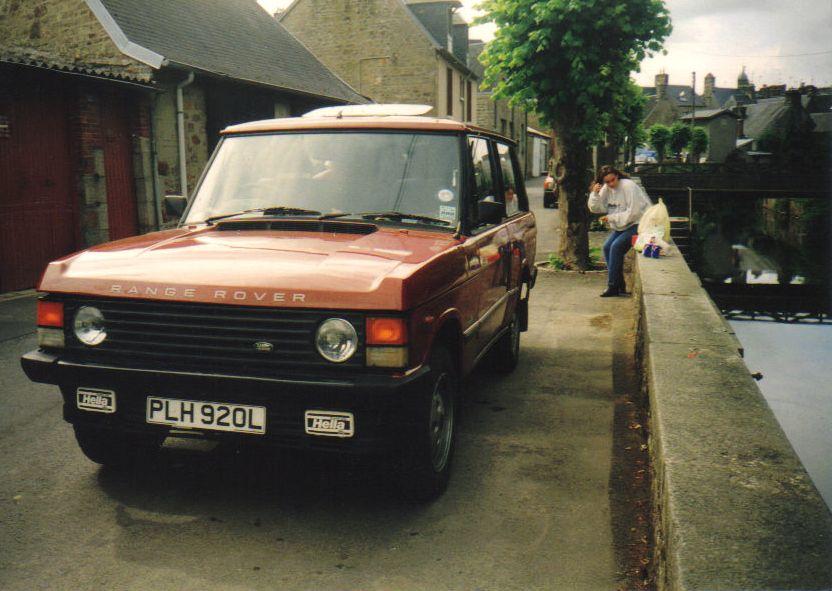

This is the same rangie after i tarted it up and tried to make it look like a CSK
Last edited by Reads90; 8th August 2007 at 08:49 PM.
95 300 Tdi Defender 90
99 300 Tdi Defender 110
92 Discovery 200tdi
50 Series 1 80
50 Series 1 80
www.reads4x4.com
Fossicker
Hi,
Thanks for your tips, I've only just had chance to read them. The engine is out of a Defender, so I guess I have a bit more work to do. I think the vehicle is fitted with a four bolt steering box, perhaps I could change this to a three bolt. If you have any pics of your converstion that would be great, you can e-mail me on marklomas@hotmail.com.
Cheers
Mark
Originally Posted by Reads90
Ok i did it to a 1971 Range rover in 1992
I put a 200 Tdi and Lt77 manual box out of a disco in
I take it you engine is out of a disco , (as a defender one won't fit with out changing some parts on the engine)
The Power steering box has to be three bolt one as the timing cover on the 200 Tdi will hit the 4 bolt one.
You will need to cut away the bulkhead under the center of the windscreen to get the rocker cover into the engine bay. That will be fine you wont need a body lift and you will be able to get the rocker off and the injector out. There is enough room after you cut it away. I have pics of mine somewhere when you come to it
You will have to modify the top of the tunnel only as they sit in a totally differant places as the one you are taking out . My was made and just had the gearstick sticking out untill i could get it sorted. The tunnel its self will be fine but the top of the gearbox, Where the gear leaver comes out of the gearbox will poke though the tunnel
This is the range rover just after i bought it (at Billing) . It had a transit Engine in it when i bought it but had just had the 200 Tdi put in
This is the same rangie after i tarted it up and tried to make it look like a CSK
