    Fitting Smiths Heater

    G'day All,

    I've scored a smiths heater - the flat one - for my Ute With No Name (SIIA). I'm wondering if anyone with one fitted up by the dealer/factory can tell/show me the correct hole to cut through the firewall?

    On one of the parts diagrams I have it shows a large rectangular grommet where both pipes pass through - is this correct? If so, where can I get that grommet?

    Also interested in the correct position for the heater switch.

    Cheers,
    Reply With Quote Reply With Quote
  2. 14th August 2007, 06:54 AM #2
    UncleHo's Avatar
    UncleHo
    UncleHo is offline AT REST
    Join Date
    Oct 2003
    Location
    Godwin Beach Qld
    Posts
    8,688
    Total Downloaded
    0
    G'day akelly

    On most of the 2a's there are 2 round rubber bungs on the left side of the flat section of the firewall directly behind (in line with)the left side of the engine block, that is the heater pipe holes, and there should be a couple of other holes/bungs for the mountings to go through, the Aust vehicles only ever had the round Smiths heater fitted, I don't think that we (Leyland) ever brought the flat "Fog Stirrer" into the country as an optional fit, I have never seen one fitted to an Australian CKD vehicle but the stamping should be there for fitting it, heater pipe fittment are at the left rear of the head and the right front of the thermostat housing, with a 3" steel pipe up from the rear hole with a wheel valve to turn water on and off.

    Hope that is of some help to you

    cheers
    Reply With Quote Reply With Quote
  3. 14th August 2007, 03:35 PM #3
    Jeff's Avatar
    Jeff
    Jeff is offline Wizard
    Join Date
    Sep 2006
    Location
    Northern Beaches
    Posts
    1,426
    Total Downloaded
    0
    Quote Originally Posted by UncleHo View Post
    G'day akelly

    Aust vehicles only ever had the round Smiths heater fitted, I don't think that we (Leyland) ever brought the flat "Fog Stirrer" into the country as an optional fit, I have never seen one fitted to an Australian CKD vehicle .
    I had a H suffix 2A wagon, one of the last 2As and it had the flat Smiths heater, didn't heat much. I never took it off so I can't helpmuch akelly. We had the Smiths ball type in my wife's EK Holden and it produced more heat.

    Jeff

    Reply With Quote Reply With Quote
  4. 14th August 2007, 03:57 PM #4
    4bee's Avatar
    4bee
    4bee is offline Cynical Moi?
    Join Date
    Jan 1970
    Location
    Adelaide Hills. South Australia
    Posts
    13,349
    Total Downloaded
    0
    Depends on your Suffix whether it will fit or not.
    If the hand throttle is centre dash then it probably won't, as the gubbins casing is in the way. If you have the push to start starter button under the dash, you will find this will be in the way as well.

    From memory, Suffix D on is ok but as you know, with LR mix & match it may not.

    Take some careful measurements as it may not fit without some serious mods.

    I note yours is a '69 so it may be ok.


    Hope this helps.
    Reply With Quote Reply With Quote
  5. 14th August 2007, 05:37 PM #5
    Mick-Kelly's Avatar
    Mick-Kelly
    Mick-Kelly is offline ChatterBox
    Join Date
    Jan 1970
    Location
    Caboolture
    Posts
    2,469
    Total Downloaded
    0
    And if you get really desperate my lightweight has a nice round smiths when it is supposed to have a flat smiths.
    Reply With Quote Reply With Quote
  6. 14th August 2007, 06:25 PM #6
    dormobile mat
    dormobile mat is offline Fossicker
    Join Date
    Aug 2007
    Posts
    29
    Total Downloaded
    0
    i have a flat smiths in my IIa want me to take some pics for you bud and send then to you
    Reply With Quote Reply With Quote
  7. 14th August 2007, 06:26 PM #7
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,497
    Total Downloaded
    0
    I'll be up for the pics as well I have a choice of 5 different heating elements I can add to Kermit when i get round to it and want to see whats out there.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
  8. 14th August 2007, 06:45 PM #8
    dormobile mat
    dormobile mat is offline Fossicker
    Join Date
    Aug 2007
    Posts
    29
    Total Downloaded
    0

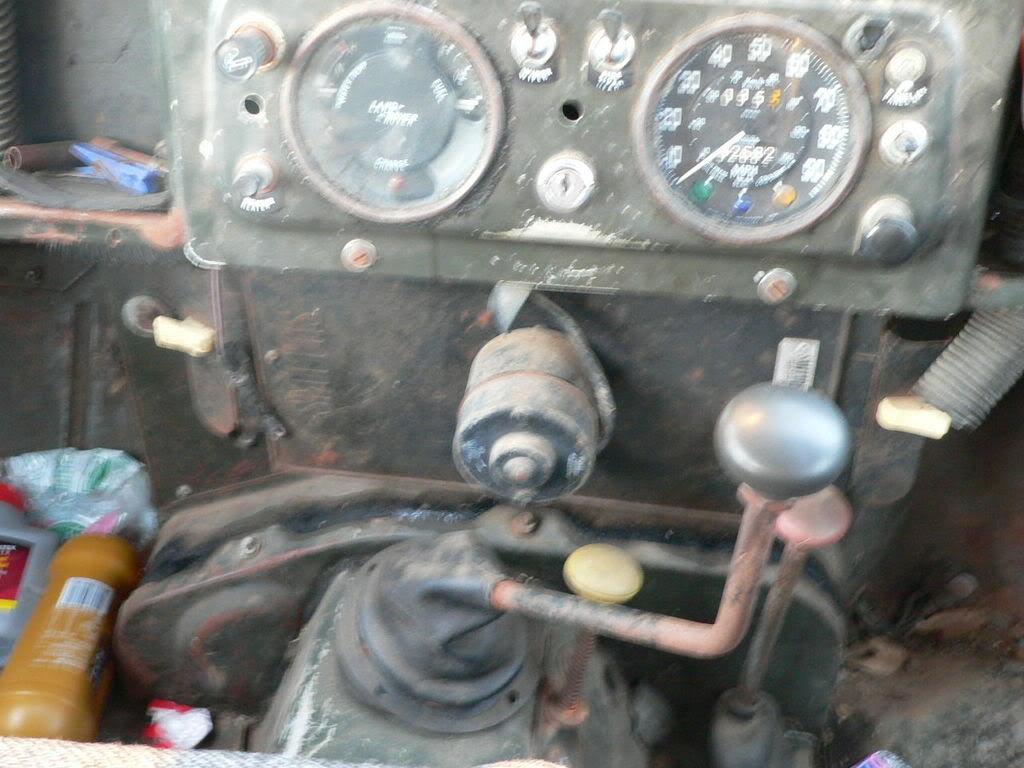

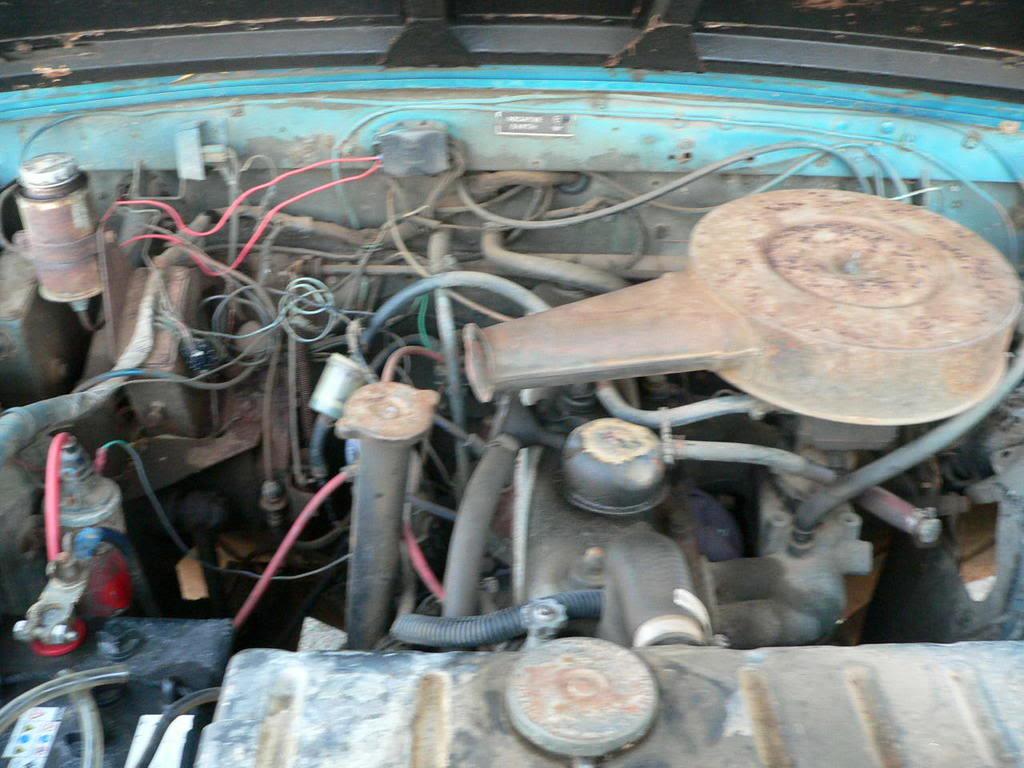

    your inluck got some on my pc can take some better ones tomorrow but these are better then nothing for now bit fuzzy just loading them onto the net and i'll put what i have now is anyone able to tell me what there worth
    Reply With Quote Reply With Quote
  9. 14th August 2007, 06:48 PM #9
    dormobile mat
    dormobile mat is offline Fossicker
    Join Date
    Aug 2007
    Posts
    29
    Total Downloaded
    0

    Reply With Quote Reply With Quote
  10. 14th August 2007, 07:09 PM #10
    akelly's Avatar
    akelly
    akelly is offline Wizard Gold Subscriber
    Join Date
    Feb 2007
    Location
    Cooroy, QLD
    Posts
    1,396
    Total Downloaded
    0
    Did some measuring up today, made up a cardboard template of the heater, including the pipes - looks OK to fit no worries. I dont have a hand throttle or starter button. My only concern now is the gear-stick, it may foul. I'll check that in the morning.

    Thanks for the info everyone, and the pics Mat - they were very helpful to get a feel for where it mounts. If you manage to get some better ones, chuck them up as I'm keen to see how high up the bulkhead it goes.

    Cheers,
    Reply With Quote Reply With Quote
