Thread: D2 coolant leak from water pump

  1. 4th August 2008, 03:22 PM #1
    WildOne's Avatar
    WildOne
    WildOne is offline Master
    Join Date
    Feb 2007
    Location
    Heidelberg, Melbourne
    Posts
    673
    Total Downloaded
    0

    D2 coolant leak from water pump

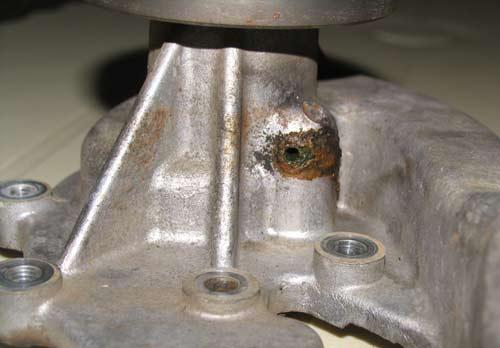

    I'm trying to trace the source of a few new leaks under the Disc and noticed a fairley fresh coolant stain that seems to be coming from a small hole under the water pump? Can anyone offer any wisdom on this, am i up for a new pump? Photo is not too clear (bad light) but you can make out the coolant stain on the under side of the pump.
    Attached Images Attached Images
    Reply With Quote Reply With Quote
  2. 4th August 2008, 03:41 PM #2
    Psimpson7's Avatar
    Psimpson7
    Psimpson7 is offline TopicToaster
    Join Date
    Sep 2007
    Location
    Gold Coast
    Posts
    6,078
    Total Downloaded
    0
    I would say that means that water is getting past the water pump spindle seal and that you may well need a new one. (waterpump that is)

    Rgds
    Peter.
    Reply With Quote Reply With Quote
  3. 4th August 2008, 04:05 PM #3
    rangieman's Avatar
    rangieman
    rangieman is offline Swaggie
    Join Date
    Jan 1970
    Location
    Free Again Thanks Dan
    Posts
    10,150
    Total Downloaded
    0
    Yep throw it dont muck around just get a newy
    Reply With Quote Reply With Quote
  4. 4th August 2008, 04:12 PM #4
    jsp's Avatar
    jsp
    jsp is offline Master Silver Subscriber
    Join Date
    Apr 2007
    Location
    South Australia
    Posts
    934
    Total Downloaded
    0
    yes as the other guys say replace it or the bearing goes and then have all sorts of issues like I did on the 4.6 ....

    the weep hole underneath lets water out which may get past the inner seal then through the bearing:


    2007/2002/2000/1994/1993/1988/1987/1985/1984/1981/1979/1973 Range Rover 1986 Wadham Stringer
    and a Nissan Cube............
    South Australia.
    Reply With Quote Reply With Quote
  5. 4th August 2008, 04:56 PM #5
    scarry's Avatar
    scarry
    scarry is offline Swaggie
    Join Date
    Apr 2008
    Location
    Brisbane,some of the time.
    Posts
    13,888
    Total Downloaded
    0
    my 2001 one leaked there & so did a few others at the time.they were replaced under warranty

    as for yours....needs to be replaced....

    someone may have done one & will give you an idea on how difficult they are to change
    Reply With Quote Reply With Quote
  6. 4th August 2008, 07:53 PM #6
    stevo's Avatar
    stevo
    stevo is offline Wizard Supporter
    Join Date
    Jan 1970
    Location
    Pennant Hills, Sydney
    Posts
    1,415
    Total Downloaded
    0
    they are not to bad to do did mine at 140,000 km's, you have to remove the centrifugal oil filter assembly so you can get the water pump out
    disco seriesII mods so far:-bullbar,hyd winch,
    detriot locker,lsd front,C.D.L kit,chipped and bigger intercooler,2" lift,rock sliders, lsd in transfer case, modified auto trans.

    In the event of nuclear war,Disregard this message
    Reply With Quote Reply With Quote
  7. 4th August 2008, 08:54 PM #7
    eckolsim's Avatar
    eckolsim
    eckolsim is offline Master Supporter
    Join Date
    Jan 1970
    Location
    Sydney
    Posts
    326
    Total Downloaded
    0
    Yep,

    Agree with Stevo. Not that expensive and not that hard, but you will need to get the filters for the centrifugal standpipe. Check the RAVE if you have it, if not download it!
    Land Rover - The leader in chasis rust protection with leading edge oil application system.
    2000 Discovery TD5 - ACE. 2" Lift and Bloody big lights
    2016 Discovery D4 SDV6 HSE ARB Bar, lights and winch. Wow
    Reply With Quote Reply With Quote
  8. 4th August 2008, 08:58 PM #8
    WildOne's Avatar
    WildOne
    WildOne is offline Master
    Join Date
    Feb 2007
    Location
    Heidelberg, Melbourne
    Posts
    673
    Total Downloaded
    0
    Quote Originally Posted by eckolsim View Post
    Yep,

    Agree with Stevo. Not that expensive and not that hard, but you will need to get the filters for the centrifugal standpipe. Check the RAVE if you have it, if not download it!
    Thanks for the insight fellas, i've got rave and will order a new pump as soon as i decide on the right fix for the other oil leak, oh and i've got a warped exhaust manifold, but thats another story....
