Thread: Too hot for sleep

  1. 24th December 2009, 12:16 AM #1
    Waxenwane's Avatar
    Waxenwane
    Waxenwane is offline Master
    Join Date
    Mar 2007
    Location
    Seaford, Near Franganistan, Victoria
    Posts
    388
    Total Downloaded
    0

    Too hot for sleep

    It's late, it's too hot for sleep..........so heres another set of questions about my newly acquired bits.

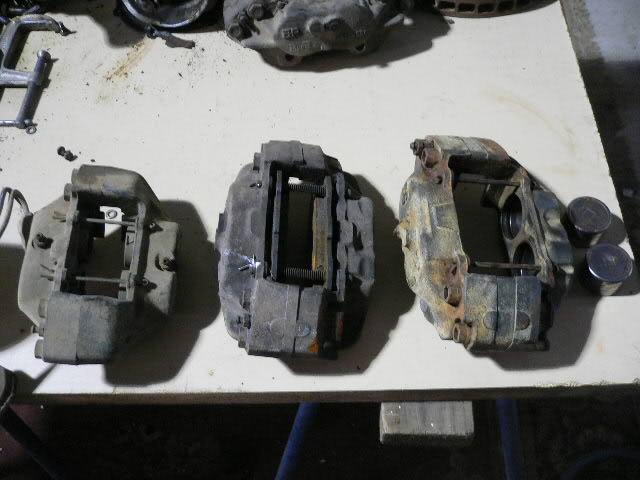

    The Calipers are quite large in comparison to early Range Rover gear so I assume they are late series 1 Discovery????? The Rangie Caliper is on the left, centre is from an unidentified Land Rover, and right is the fella in question.

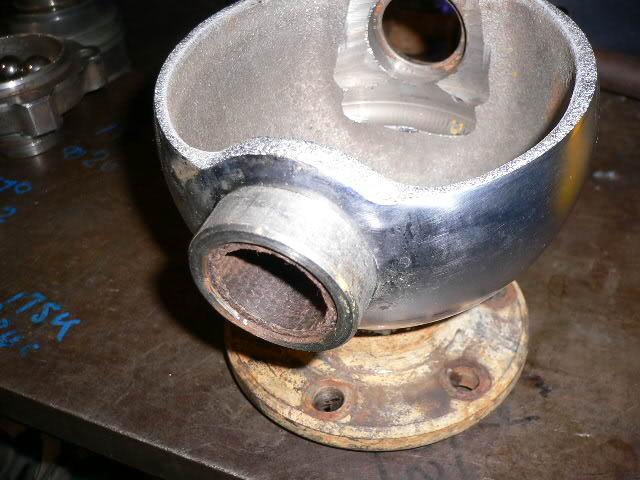

    The swivel balls and housing, I'm also unfamiliar with..

    Having had a bit of a trawl though Rave and Britparts catalog I'm left with the impression they are Defender.
    Last edited by Waxenwane; 24th December 2009 at 12:20 AM. Reason: forgot stuff
    Reply With Quote Reply With Quote
  2. 24th December 2009, 12:46 AM #2
    kaa45's Avatar
    kaa45
    kaa45 is offline R.I.P.
    Join Date
    Apr 2007
    Location
    Clifton Springs, Vic.
    Posts
    841
    Total Downloaded
    0
    No idea........but I can't sleep either
    Reply With Quote Reply With Quote
  3. 24th December 2009, 12:48 AM #3
    D-Fender's Avatar
    D-Fender
    D-Fender is offline Master
    Join Date
    Feb 2008
    Location
    Vic, Melbourne, Bayswater North
    Posts
    255
    Total Downloaded
    0
    Quote Originally Posted by kaa45 View Post
    No idea........but I can't sleep either
    You're not the only ones

    Sorry can't help, just thought I'd jump on the 'can't sleep' wagon as it rattled by.
    Reply With Quote Reply With Quote
  4. 24th December 2009, 09:55 AM #4
    BigJon's Avatar
    BigJon
    BigJon is offline ForumSage
    Join Date
    Jan 1970
    Location
    Adelaide - Torrens Park
    Posts
    7,291
    Total Downloaded
    0
    The caliper on the right looks to be one to suit a ventilated disc...
    Reply With Quote Reply With Quote
  5. 24th December 2009, 10:56 PM #5
    loanrangie's Avatar
    loanrangie
    loanrangie is offline LordRover Subscriber
    Join Date
    Jan 1970
    Location
    St Helena,Melbourne
    Posts
    16,777
    Total Downloaded
    1.13 MB
    Quote Originally Posted by BigJon View Post
    The caliper on the right looks to be one to suit a ventilated disc...
    Yes you can see the spacer and the fact that it is otherwise identical to the middle caliper.
    MY08 TDV6 SE D3- permagrin ooh yeah
    2004 Jayco Freedom tin tent
    1998 Triumph Daytona T595
    1974 VW Kombi bus
    1958 Holden FC special sedan
    Reply With Quote Reply With Quote
  6. 25th December 2009, 07:52 AM #6
    Dougal
    Dougal is offline ForumSage
    Join Date
    Sep 2007
    Location
    Kiwiland
    Posts
    7,246
    Total Downloaded
    0
    There are only two 4 pot caliper piston sizes.
    41.3mm was used on all D1's, Classic rangies etc.
    46mm was used on some Defenders and Counties.

    Both piston sizes had the option of vented or solid rotors. Same caliper halves, just spaced wider in the middle.
    There are two bolt sizes, 7/16 inch and 12mm, that was the change from imperial to metric somewhere along the line.

    The classic rangies and some D1's had two lines to each front caliper. Presuming later classic rangies (with ABS) would be single line to each caliper but I haven't seen one in person.
    Last edited by Dougal; 25th December 2009 at 07:53 AM. Reason: imperial bolt size
    Reply With Quote Reply With Quote
  7. 25th December 2009, 08:15 AM #7
    scarry's Avatar
    scarry
    scarry is offline Swaggie
    Join Date
    Apr 2008
    Location
    Brisbane,some of the time.
    Posts
    13,890
    Total Downloaded
    0
    Maybe santa will bring you guys a fan,or if you have been real good an A/C


    No i got no idea

    Earth to JC.........
