Thread: Cutting Tow Hitch

  1. 1st June 2017, 03:42 PM #1
    Strop
    Strop is offline Master Subscriber
    Join Date
    Mar 2017
    Location
    Armidale, NSW
    Posts
    231
    Total Downloaded
    0

    Cutting Tow Hitch

    I have just converted my teardrop trailer for extra ground clearance. With 14" tyres I have 32cm under the axle. Only using eye to eye springs no shockies. I have also fitted an off-road polyblock instead of the 50mm ball.

    Last addition was a new rear hitch that lets me raise the height of the trailer connection as I am using the standard tow bar fittings.

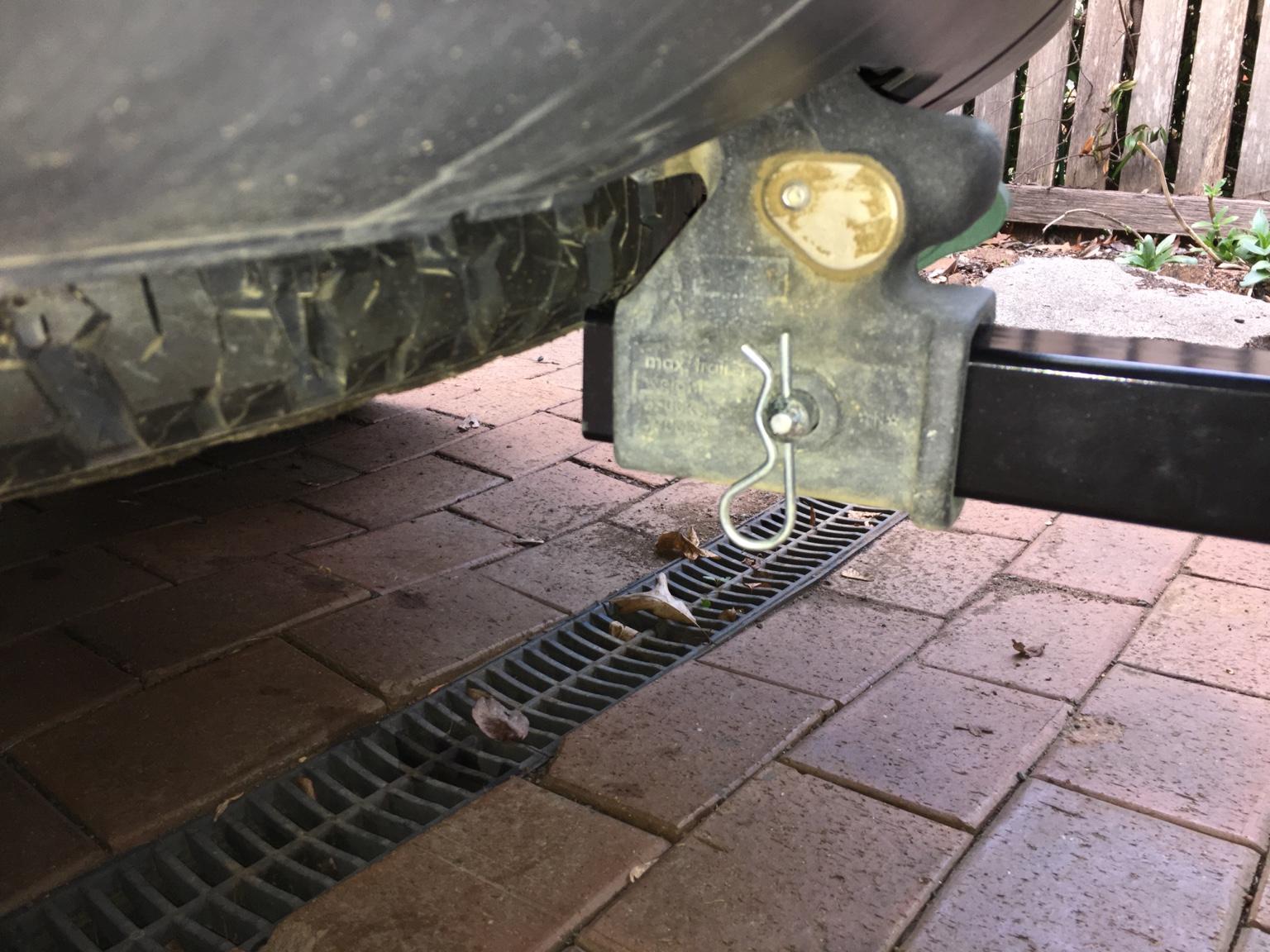

    When I put the new tow bar into the receiver it extends past and I can see it just touching the spare tyre. I am assuming that it will impact on getting the tyre out if needed.

    Can I trim the part of the tow bar that extends through the receiver off. 2cm max.



    All the best

    Laurie
    All the best,

    Laurie

    2019 sd6 SE
    2012 SDV6 SE (Son stole it from me)
    Reply With Quote Reply With Quote
  2. 1st June 2017, 03:52 PM #2
    rangieman's Avatar
    rangieman
    rangieman is offline Swaggie
    Join Date
    Jan 1970
    Location
    Free Again Thanks Dan
    Posts
    10,150
    Total Downloaded
    0
    I would and can not see why not
    Reply With Quote Reply With Quote
  3. 1st June 2017, 04:56 PM #3
    AdamHunter
    AdamHunter is offline Fossicker
    Join Date
    Sep 2016
    Location
    Manly QLD
    Posts
    99
    Total Downloaded
    0
    If it's SHS it would be fine. If it is a cast section , not so much.
    Reply With Quote Reply With Quote
  4. 1st June 2017, 05:00 PM #4
    Tins's Avatar
    Tins
    Tins is offline LordRover Subscriber
    Join Date
    Sep 2010
    Location
    The Hills.
    Posts
    19,161
    Total Downloaded
    152.79 MB
    Looks like SHS. If so, then sure, but don't trim it back further than the end of the receiver.
    ​JayTee

    Nullus Anxietus

    Cancer is gender blind.

    2000 D2 TD5 Auto: Tins
    1994 D1 300TDi Manual: Dave
    1980 SIII Petrol Tray: Doris
    OKApotamus #74
    Nanocom, D2 TD5 only.​
    Reply With Quote Reply With Quote
  5. 1st June 2017, 05:24 PM #5
    Strop
    Strop is offline Master Subscriber
    Join Date
    Mar 2017
    Location
    Armidale, NSW
    Posts
    231
    Total Downloaded
    0
    SHS - square hollow section. Looks exactly like the standard hitch just a bit longer.

    Cutting wheel out tomorrow then a bit of paint to tidy up.
    All the best,

    Laurie

    2019 sd6 SE
    2012 SDV6 SE (Son stole it from me)
    Reply With Quote Reply With Quote
  6. 1st June 2017, 10:07 PM #6
    Chops's Avatar
    Chops
    Chops is offline OldBushie
    Join Date
    Jun 2009
    Location
    Tangambalanga
    Posts
    7,558
    Total Downloaded
    0

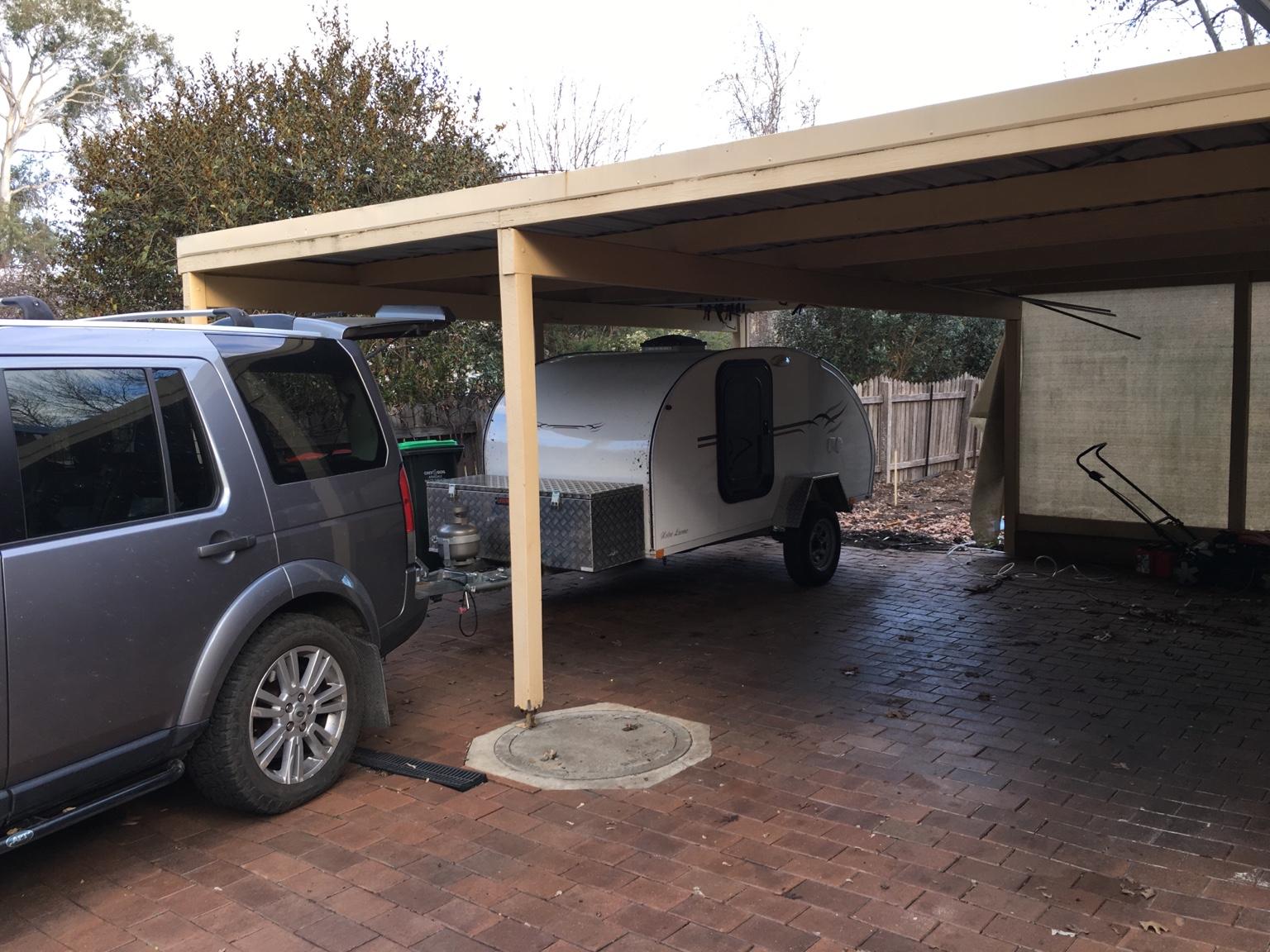

    That's a nice looking little Teardrop Laurie,,, they're cool units and light, I bet they'd be great out in the bush.
    Reply With Quote Reply With Quote
  7. 1st June 2017, 11:11 PM #7
    cjc_td5's Avatar
    cjc_td5
    cjc_td5 is offline ChatterBox
    Join Date
    Aug 2007
    Location
    Bunbury, WA
    Posts
    2,507
    Total Downloaded
    0
    If you are shortening the SHS Strop, I would be redrilling the pin hole so that the tongue could be slid in as close to the bumper as possible? There must be a huge bending moment on the coupling onto the rear crossmember with the SHS piece, tongue and TREG coupling?
    Reply With Quote Reply With Quote
  8. 15th June 2017, 04:27 PM #8
    DoubleChevron's Avatar
    DoubleChevron
    DoubleChevron is offline YarnMaster Supporter
    Join Date
    Feb 2013
    Location
    Ballarat,Vic,Aus
    Posts
    3,855
    Total Downloaded
    0

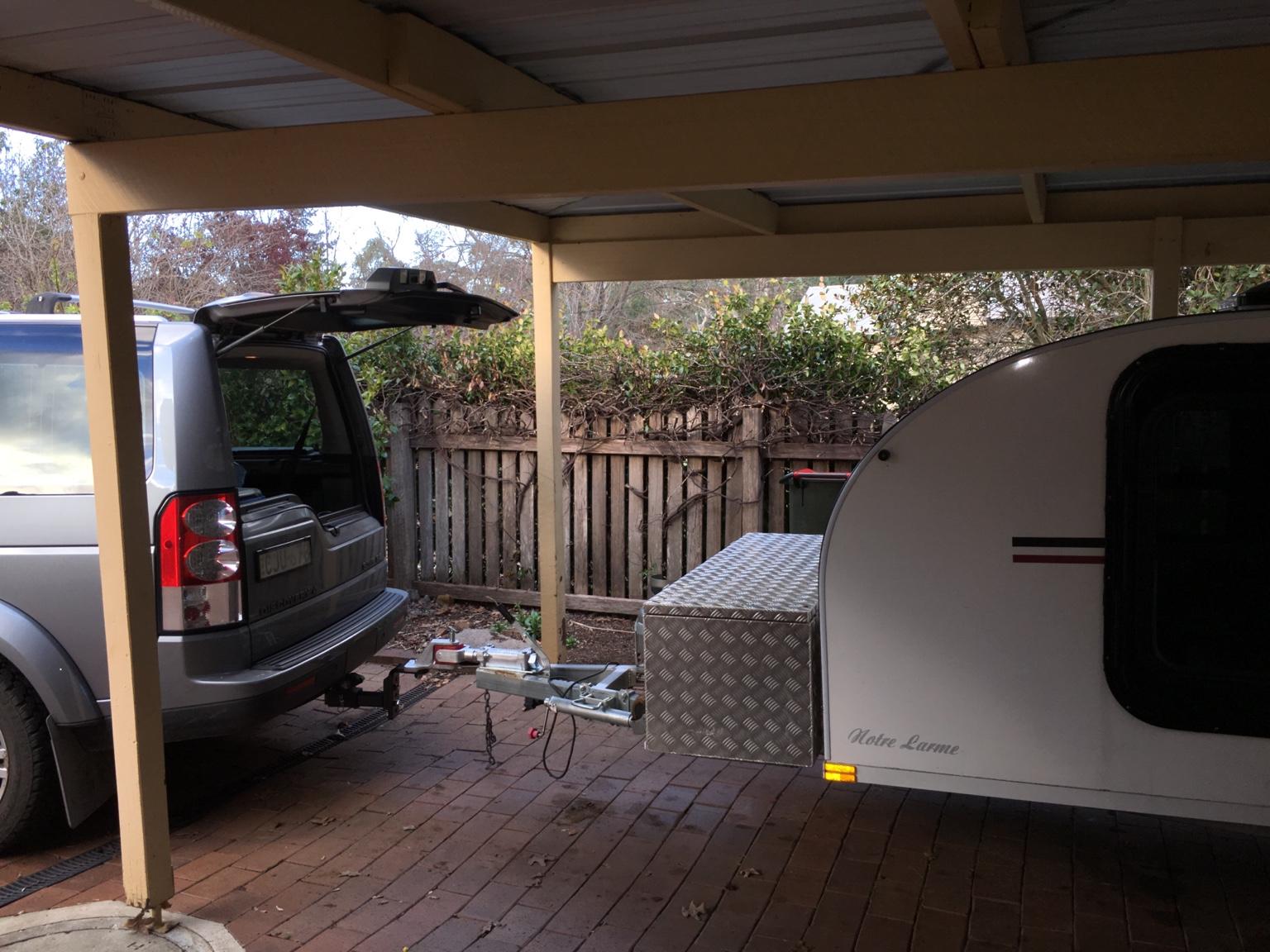

    Wow ... look how far that tongue is levered out ... You would have to derate the tow ratings by about 90% ... There was a similar setup last week on the lemons facebook group of the same setup with a VERY bent tongue as they had that setup with a full sized caravan
    Proper cars--
    '92 Range Rover 3.8V8 ... 5spd manual
    '85 Series II CX2500 GTi Turbo I :burnrubber:
    '63 ID19 x 2 :wheelchair:
    '72 DS21 ie 5spd pallas
    Modern Junk:
    '07 Poogoe 407 HDi 6spd manual :zzz:
    '11 Poogoe RCZ HDI 6spd manual
    Reply With Quote Reply With Quote
  9. 15th June 2017, 05:21 PM #9
    Fluids's Avatar
    Fluids
    Fluids is offline YarnMaster Subscriber
    Join Date
    Mar 2009
    Location
    Port Stephens N.S.W
    Posts
    3,158
    Total Downloaded
    0
    ... but the ball weight of the teardrop would be 2/5th of
    Kev..

    Going ... going ... almost gone ... GONE !! ... 2004 D2a Td5 Auto "Classic Country" Vienna Green

    2014 MUX LST with fruit
    2015 Kimberley Kamper "Classic"
    Reply With Quote Reply With Quote
  10. 15th June 2017, 07:09 PM #10
    Rextheute's Avatar
    Rextheute
    Rextheute is offline Master
    Join Date
    Mar 2014
    Location
    Romsey Country Vic
    Posts
    381
    Total Downloaded
    0
    Before you lop the end off .
    jump on the Internet - Hayman Reece have their catalogue listed as a PDF file , measure what you require and match it .
    Then you can have the pin hole further back and not have it touching the spare tyre . The leverage doesn't bother me so much , teardrop won't have a real effect , but if you were to tow something heavier it 'could have an effect '
    also , modifying a tow hitch is possibly a no no - never give an insurance co an excuse .

    Measurements are all listed so it's pretty straight forward .

    ps , tell us more about your teardrop !
