    Tim Vibert has Saracen cork seals for 15 dollars each...........I hope they are the right ones.
    He has other special seals I need , but are at a price.
    Over seas shopping on some parts is much cheaper but takes longer.

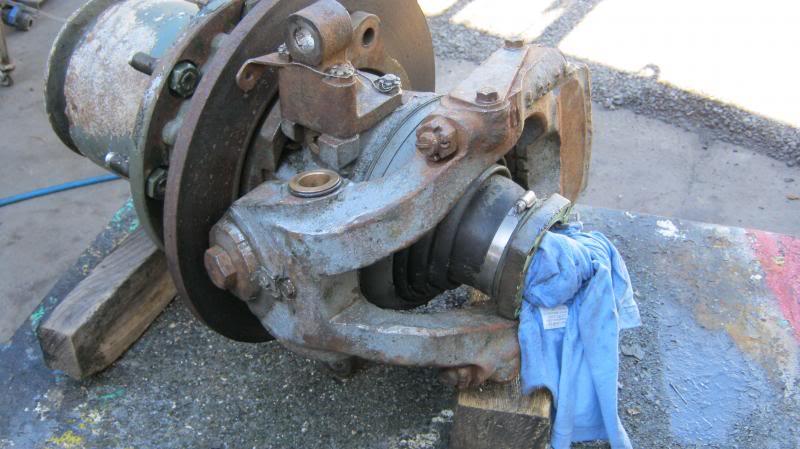

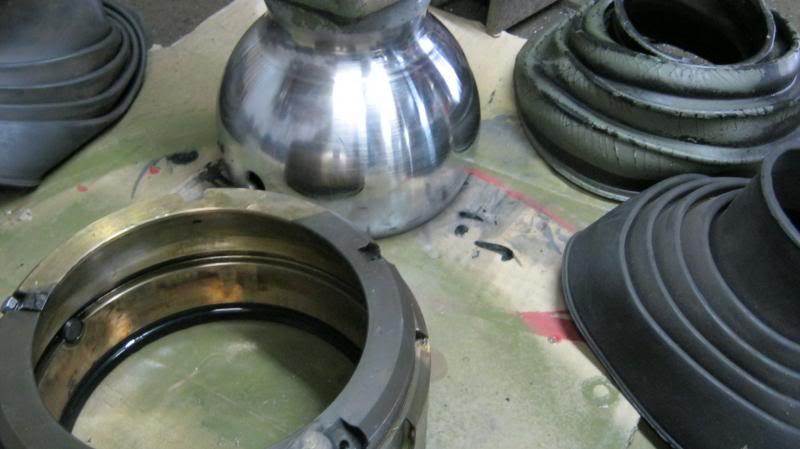

    After work today I cleaned up that big bronze housing for that inner tracta joint and ball seal.
    It is a work of art the machining involved and no wear found in any part.
    I have plenty of work now just sorting the seals and repainting etc.
    It is interesting to see how exactly how a tracta joint works.
    There is no wear or marks on the tracta joint forks...........all that means I have a really tight ship mechanically.
    Reply With Quote Reply With Quote
  2. 11th November 2013, 05:24 PM #542
    101 Ron's Avatar
    101 Ron
    101 Ron is offline YarnMaster
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0
    I have never played with tracta joints before, usually in Four wheel drive front axles I come across the normal C/V joint with the cups and balls of what ever type it may be.
    Alvis when designing the drive looked at double carden joints and the normal ball and cup type C/Vs.
    They settled on the tracta joint because of its compact size was the only design to fit in where space was limited.
    Alvis had front wheel drive sports cars in the 1920s using tracta joints and had much experience in using them.
    Reply With Quote Reply With Quote
  3. 11th November 2013, 05:36 PM #543
    Lotz-A-Landies's Avatar
    Lotz-A-Landies
    Lotz-A-Landies is offline Super Moderator Gold Subscriber
    Join Date
    Jul 2006
    Location
    East-South-East Girt-By-Sea
    Posts
    17,662
    Total Downloaded
    1.20 MB
    They must have been used in a number of Brit vehicles during the war as they were used in the original design of the 80".

    I have never seen much wear in them or even a broken tracta joint, usually it is the axle spline that breaks (if at all). I guess the cost factor must have been the reason for the change to regular spicer joint, that and they changed from constant 4WD to selectable 2WD/4WD so the constant velocity tractor joints weren't needed.

    You won't find me on: faceplant; Scipe; Infragam; LumpedIn; ShapCnat or Twitting. I'm just not that interesting.
    Reply With Quote Reply With Quote
  4. 11th November 2013, 06:28 PM #544
    101 Ron's Avatar
    101 Ron
    101 Ron is offline YarnMaster
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0
    Restoration Ozzie Saladin - Page 5
    Reply With Quote Reply With Quote
  5. 14th November 2013, 04:25 PM #545
    101 Ron's Avatar
    101 Ron
    101 Ron is offline YarnMaster
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0



    Reply With Quote Reply With Quote
  6. 14th November 2013, 08:47 PM #546
    spongie's Avatar
    spongie
    spongie is offline Master
    Join Date
    Aug 2013
    Location
    uk
    Posts
    131
    Total Downloaded
    0

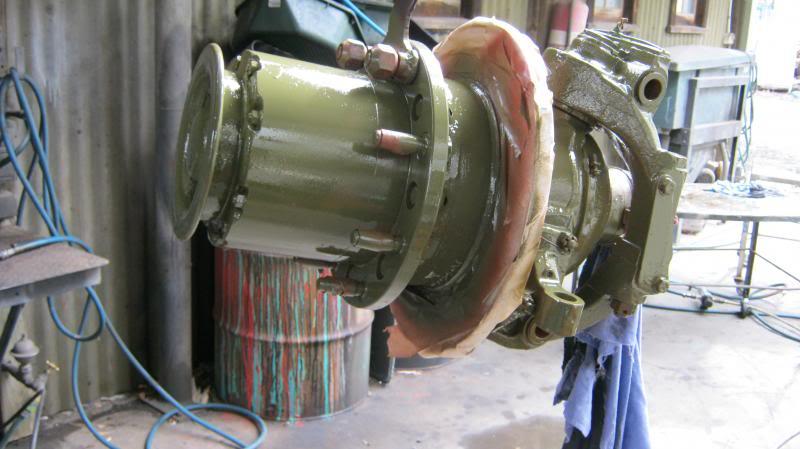

    That last pic looks gorgeous!!! Fresh paint or even does wonders
    Reply With Quote Reply With Quote
  7. 15th November 2013, 06:35 AM #547
    101 Ron's Avatar
    101 Ron
    101 Ron is offline YarnMaster
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0
    It should be getting the green today.

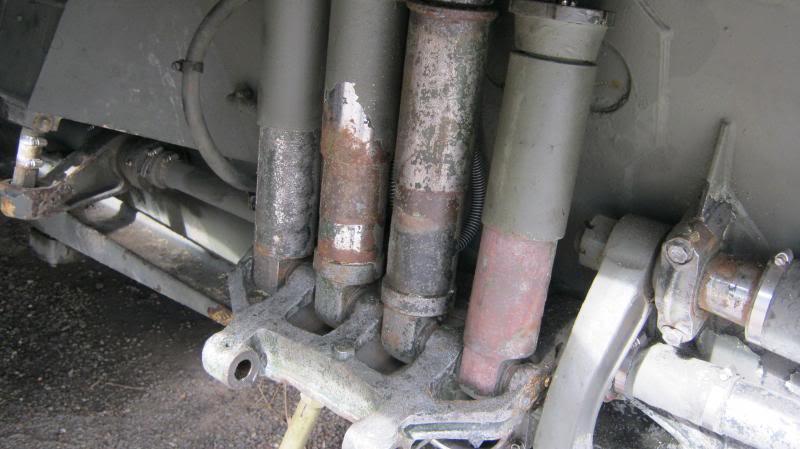

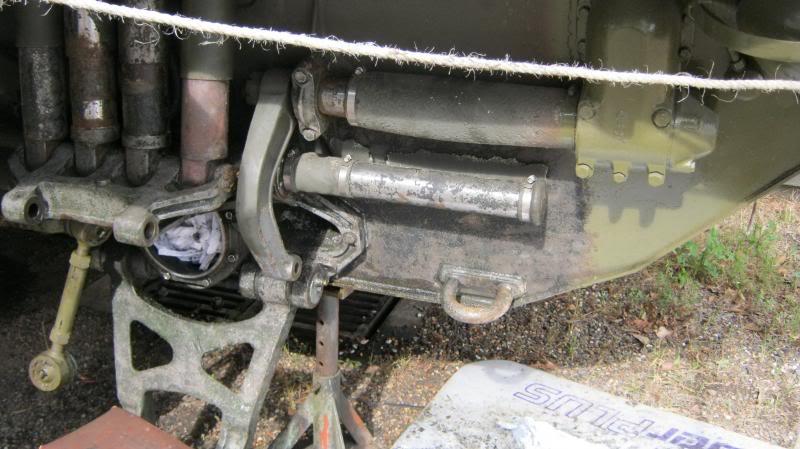

    The hull is getting needle gunned around where that wheel station goes.
    Parts are on the way and appear to be advailable locally.( I hope they fit)
    The hull is covered in about Ten layers of thick and flaking paint with abit of surface rust underneath thrown in.
    Reply With Quote Reply With Quote
  8. 15th November 2013, 04:26 PM #548
    101 Ron's Avatar
    101 Ron
    101 Ron is offline YarnMaster
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0


    Reply With Quote Reply With Quote
  9. 15th November 2013, 06:16 PM #549
    amazing's Avatar
    amazing
    amazing is offline Fossicker
    Join Date
    Jul 2013
    Location
    China
    Posts
    84
    Total Downloaded
    0
    hey Ron,
    what the bolted plate for?( look like it's held on withtwo 1/2" bolts) next to the large castellated nut with the spit pin. I have seen it from a few angles but cant place its use.
    is it just belt and braces to hold two part together?


    just curious
    Reply With Quote Reply With Quote
  10. 15th November 2013, 08:21 PM #550
    101 Ron's Avatar
    101 Ron
    101 Ron is offline YarnMaster
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0

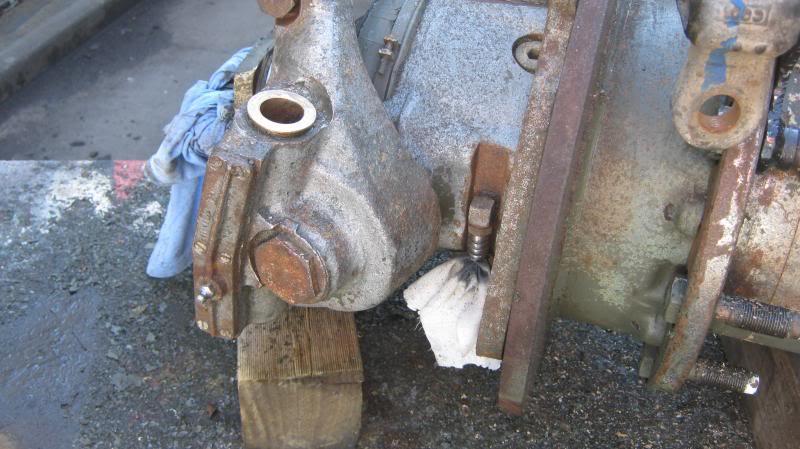

    The steel casting is in two pieces and is bolted together..........I figure this is so the kingpin bearings can be separated from the tracta joint housing pins for the kingpin bearings.
    Those bolts holding it together are at least 3/4 ,,, may be one inch thick
    Smaller plates on the sides I have no idea what they are for or if anything is behind them.
