Thread: ARB DIFF LOCK

After studying what is required to fit the locker in a 101 ,I wonder if to go ahead with the rest of this thread.
Setting up a diff is a specialised job and takes knowlege and experience.
The fact is many motor mechanics cannot set up diffs correctly and I now can see why many people have trouble with leaking air lockers .
One slight stuff up and you will get problems.
diff set ups is for the people who have the correct experience and back ground.
If you dont meet these requirements , go and get the diff set up by a diif specialist mechanic.
Fitting of a Detroit locker is easy to what is comming in the next steps.
You must also have the correct gear.
I am not perfect either...I have never fitted a ARB air locker before.....so I am open to revision.
Be warned!!!!!!!

So Ron are you going to give it a go? and put it up as a tutorial for the rest of us too follow?

Good work so far

Garry

I am going to do it.
I am just saying its not a backyard job for part time mechanics.
I have my defender running again so I might drop the diff centre tomorrow or aleast get the brakes apart.

G day ron

Good to see you finally were able to purchase all the bits. great pics as usual hope it all goes well.

cheers gaz

Front axle sitting on stands and wheels removed.

Cir clip to be removed with washer on end of drive shaft

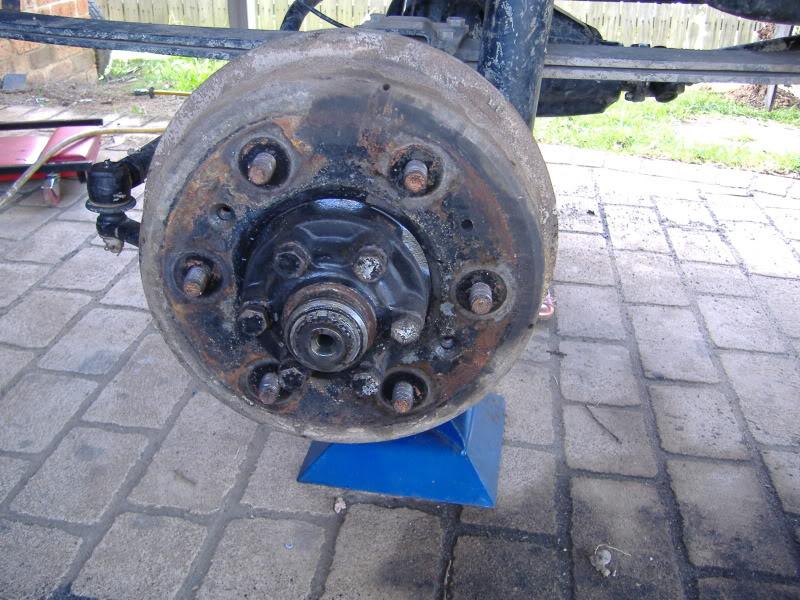

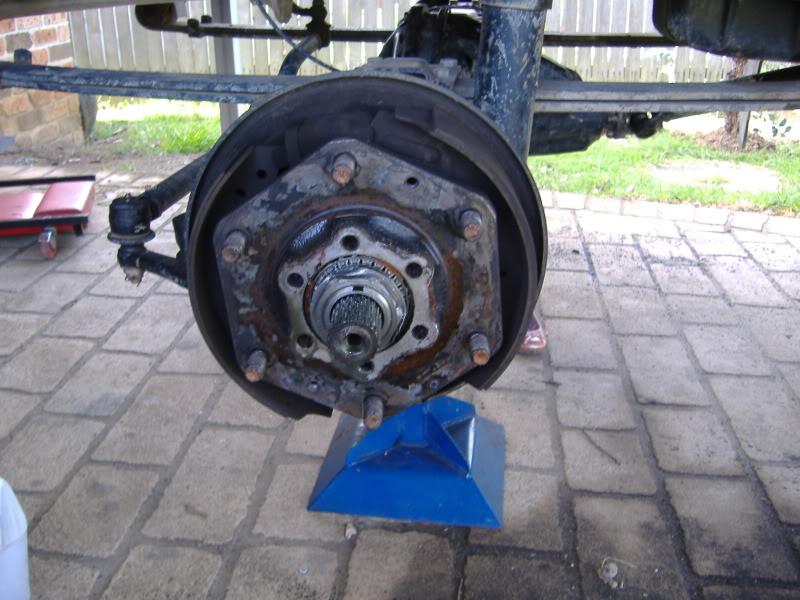

Drive flange removed and brake drum.
Backing plate very oily and brakes well worn.

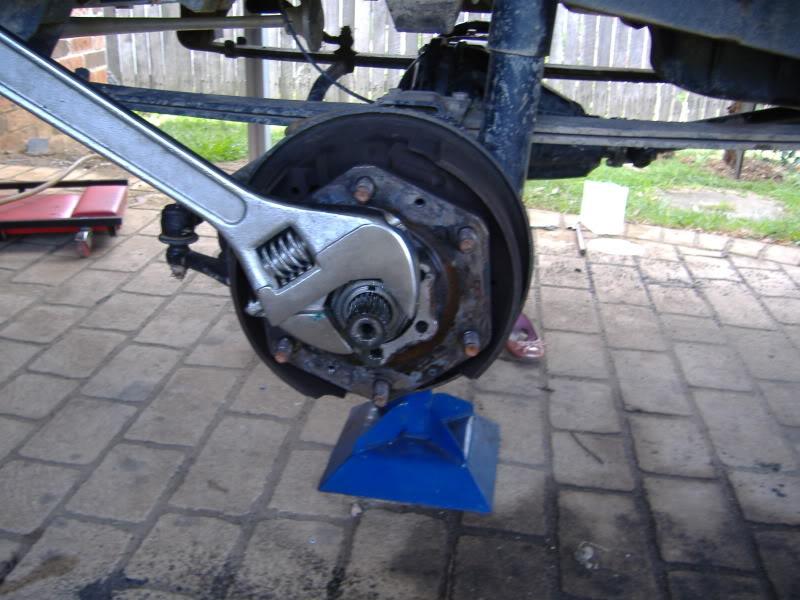

Wheel bearing nut removal tool .....P/N ...china 24 inch

The preivous owner of my 101 must have liked the wheel bearings on the loose side as I have had to tighten them up and I have been getting leaking hub oil seals like this on the other hubs.
