Thread: Anyone fitted a catch-can to a puma?

Originally Posted by dazzler

Thanks Tombie! you are a bit late, I have already pulled the trigger .

Toxic the ID would be 16mm

cheers,
pd

NEWS FLASH!

Just got off my lazy arse and took 5 minutes to measure the PCVhose piece myself.

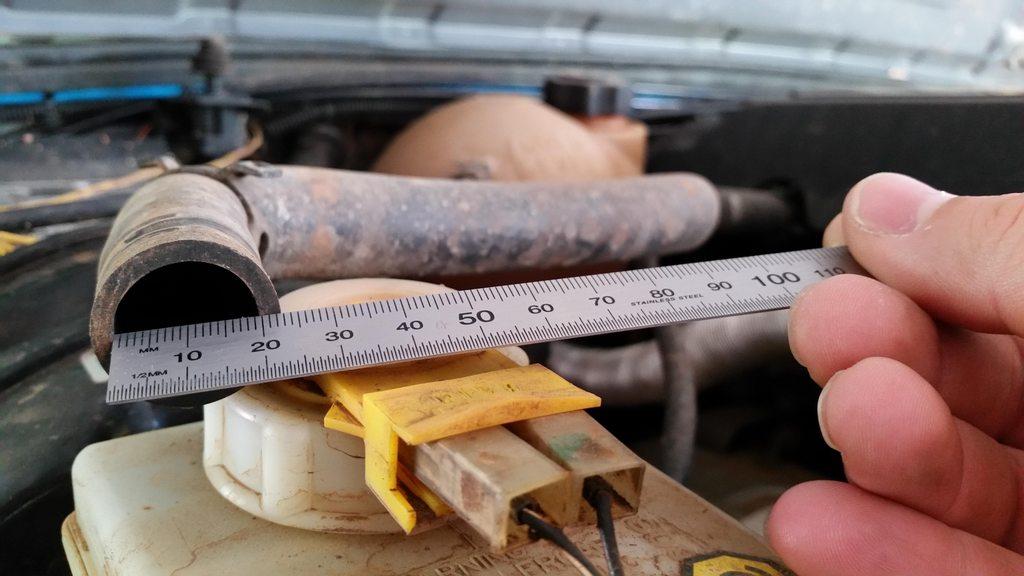

Turns out my vehicle (2012, 2.2tdci) had a 19mm ID hose between the valve cover and the post-filter intake hose. Specifically, measured where it joins the intake piping. Surely the hose doesn't taper to different sizing on each end? Pic below shows closer to 20mm, but I was balancing ruler, hose and camera all with 2 hands. Hose barb on intake is confirmed 19mm too.

I didn't disassemble further, but there is some crazy looking spring/hose clamp on the engine side, and possibly a male-male barb joiner on the intake side. So maybe the joiner on the intake hose is Male/male 19mm>16mm?

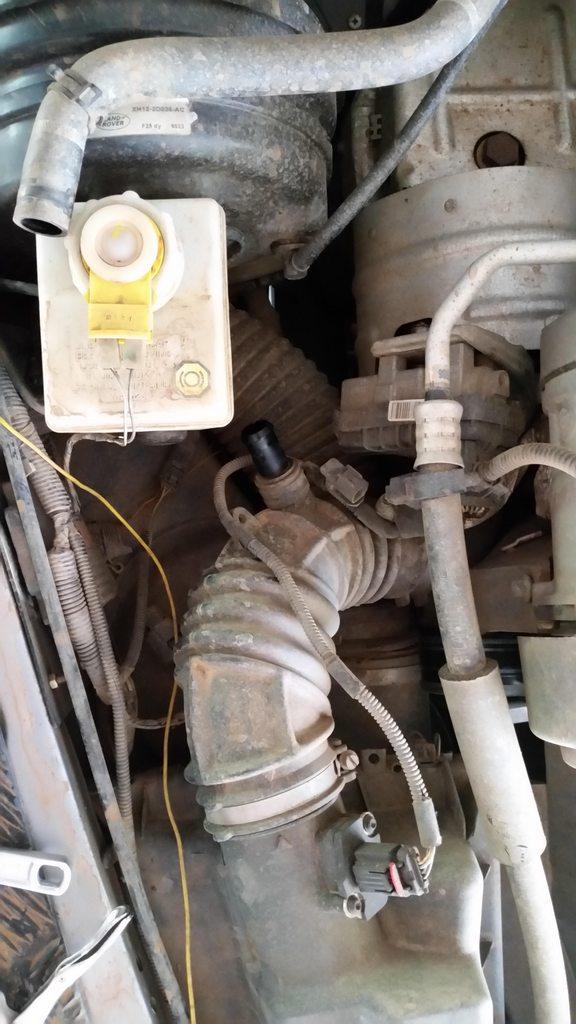

I also have bugger-all room to fit a catch can in the position between the brake master and the intake pipe. I have foolishly mounted my winch solenoid and remote control module there :/
Could mount closer to the exhaust near the coolant expansion tank, but the provent is only good for up to 120celsius... might be pushing it right above the Cat converter.

Thanks Tombie.
I'll purchase off Phoenix then. I'll just await their reply to my enquiry.
And as per Mitchs' comments re ID of the plumbing, I'll measure mine as it's a 2012 bitza as well.
Good on you again.
Ken
