Thread: Hori Turbo Throw Together

The black elbow is the standard one from na set up the blue one a silicon job

Sent from my SM-N920I using AULRO mobile app

From Adrian's pics:

The top of the alternator is the vacuum line. (Nothing to do with oil)
The rear centre is the oil feed - where you can see 2 banjos.
Underneath the alternator is oil drain. (Can't see this in the pics)

Originally Posted by Judo

From Adrian's pics:

The top of the alternator is the vacuum line. (Nothing to do with oil)
The rear centre is the oil feed - where you can see 2 banjos.
Underneath the alternator is oil drain. (Can't see this in the pics)

Sorry I was meaning he took the turbo oil feed from the top of the alternator oil feed (at the vacuum banjo) instead of the bottom (at the block).

Naturally I assumed you would take the feed from the banjo at the block.

Ah I see now. I knew one of us was confused. Looks like it was me.

Originally Posted by Adrian18

The black elbow is the standard one from na set up the blue one a silicon job

Sent from my SM-N920I using AULRO mobile app

Really? Mine has a standard elbow. Is yours a cobra head?

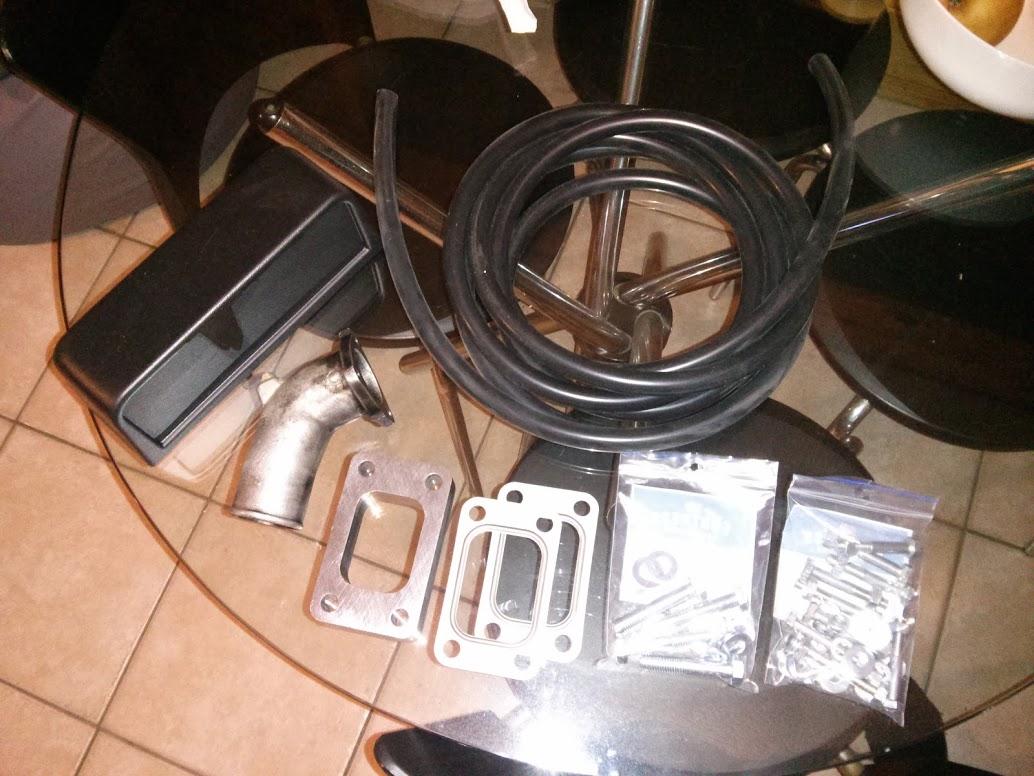

Picked up a few things on the way home from work today.

From left, Mud gauge Pod, turbo compressor outlet elbow, 1" T3 spacer, two T3 gaskets (the cheap type ), turbo bolts, manifold bolts and vacuum hose up top.

I suppose u could call it a cobra head ....any 90?bend 3"to2" would work but

Sent from my SM-N920I using AULRO mobile app

After modify the air cleaner it seems the factory elbow will fit.

We made some good progress yesterday, will post a few photos tonight.

Adrian, do you remember the thread size and length of your double banjo bolt?
