    External 4G antenna

    For internet use in the caravan I mounted a 6db aeriel on the roof and connected it by adaptor to the 4G hotspot device.


    How can I tell if the antenna is actually working? There is no icon on the device.
    can i measure the incoming signal in some way?(please dont say, count the bars!)
    "How long since you've visited The Good Oil?"

    '93 V8 Rossi
    '97 to '07. sold.
    '01 V8 D2
    '06 to 10. written off.
    '03 4.6 V8 HSE D2a with Tornado ECM
    '10 to '21
    '16.5 RRS SDV8
    '21 to Infinity and Beyond!

    1988 Isuzu Bus. V10 15L NA Diesel
    Home is where you park it..

    [IMG][/IMG]
    Reply With Quote Reply With Quote
  2. 9th March 2015, 11:20 AM #2
    Eevo's Avatar
    Eevo
    Eevo is offline Swaggie Subscriber
    Join Date
    Sep 2012
    Location
    Adelaide Hills
    Posts
    13,383
    Total Downloaded
    0
    there might be a hidden menu on the hotspot that can tell you the db (sometimes called ASU) of the incoming signal.

    also, is your hotspot a MIMO deceive?
    Reply With Quote Reply With Quote
  3. 9th March 2015, 01:28 PM #3
    Pedro_The_Swift's Avatar
    Pedro_The_Swift
    Pedro_The_Swift is offline The MOD Father
    Join Date
    May 2003
    Location
    On The Road
    Posts
    30,031
    Total Downloaded
    0
    sorry Eevo, the previous pic vanished
    I have added another one.

    and I think so,,
    the device has two antenna ports.
    The connection to the device is pretty dodgy,, but straight from the Telstra shop....
    "How long since you've visited The Good Oil?"

    '93 V8 Rossi
    '97 to '07. sold.
    '01 V8 D2
    '06 to 10. written off.
    '03 4.6 V8 HSE D2a with Tornado ECM
    '10 to '21
    '16.5 RRS SDV8
    '21 to Infinity and Beyond!

    1988 Isuzu Bus. V10 15L NA Diesel
    Home is where you park it..

    [IMG][/IMG]
    Reply With Quote Reply With Quote
  4. 9th March 2015, 01:33 PM #4
    Eevo's Avatar
    Eevo
    Eevo is offline Swaggie Subscriber
    Join Date
    Sep 2012
    Location
    Adelaide Hills
    Posts
    13,383
    Total Downloaded
    0
    ive never played with one of these devices myself, so i cant offer anything useful.

    talk to the telstra shop, hopefully you get someone technical.
    Reply With Quote Reply With Quote
  5. 9th March 2015, 02:31 PM #5
    B92 8NW
    B92 8NW is offline YarnMaster
    Join Date
    Jan 1970
    Location
    VIC
    Posts
    3,536
    Total Downloaded
    0
    I have the same device aircard 782S and a 6.5dB antenna on the bar. Does your plug go into one of the ports or both? Make sure its Port 1 if you only use one antenna.

    As Eevo says, you can go into the menu and check the signal strength unplugged and plugged in. Affirm, MIMO.

    There is a big increase in speed with mine in the sticks when the antenna is connected.
    Reply With Quote Reply With Quote
  6. 9th March 2015, 02:39 PM #6
    33chinacars
    33chinacars is offline Wizard Subscriber
    Join Date
    Dec 2009
    Location
    Tyrendarra Vic (South West Vic )
    Posts
    1,729
    Total Downloaded
    0

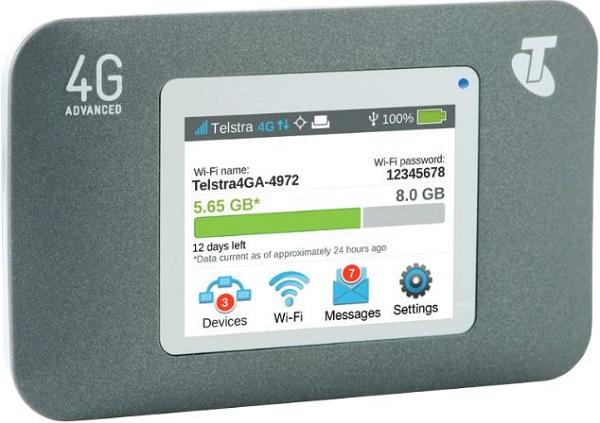

    I have to use a 4G Advance device for my home internet. Same a pictured. I also have to have an aerial on my roof.

    4G Advance device sits in a cradle which has a ethernet cable to connect main desktop computer & wifi for other laptop / I-pad. Also has incoming connection for aerial.

    When my 4G Advance device is connected to aerial it has 5 ( full) bars & when disconnected only 1 bar. Thats how i know mine works. But not what you wanted to hear.

    The 4G Advance has 2 ports to connect an aerial to, but only needs to be connected to one. Depends on what patch leads you have.

    Gary
    Reply With Quote Reply With Quote
  7. 10th March 2015, 09:04 AM #7
    Pedro_The_Swift's Avatar
    Pedro_The_Swift
    Pedro_The_Swift is offline The MOD Father
    Join Date
    May 2003
    Location
    On The Road
    Posts
    30,031
    Total Downloaded
    0
    Quote Originally Posted by B92 8NW View Post

    As Eevo says, you can go into the menu and check the signal strength unplugged and plugged in. Affirm, MIMO.
    found it,
    no change when connected in either port.
    and its 3bars on 3G atm,, so I'd expect to see some difference.
