Thread: Retrofitting missing factory options to new-ish LR's; FL2, Evoque, D3/D4, RRS, etc...

  1. #71
    Join Date
    Dec 2011
    Location
    Adelaide
    Posts
    143
    Does anybody know where (preferably in Adelaide) where to get a custom MOST jumper cable made up? Need so that I can get teh bluetooth module into my D3. Cannot find somebody anywhere - surprising as fibre is so common now

  2. #72
    Join Date
    Jul 2015
    Location
    Sydney, Australia
    Posts
    246
    Quote Originally Posted by veebs View Post
    The global close is interesting - can I ask what do I need to do to get that sorted out in Perth WA?
    I've got a mate in Perth who could do this for you, i'll send you a PM with his contact details.

    Quote Originally Posted by Mk1_Oz View Post
    Does anybody know where (preferably in Adelaide) where to get a custom MOST jumper cable made up? Need so that I can get teh bluetooth module into my D3. Cannot find somebody anywhere - surprising as fibre is so common now
    I've got a collection of MOST fiber bits & pieces in Sydney, but honestly I buy it all from China (AliExpress) because I never found anyone local who stocks that sort of thing... and if I did, it would still be cheaper from China anyhow. Happy to help you out with something from what i've got here...
    Freelander 2 HSE 3.2L - BUILD THREAD
    Jaguar XKR Portfolio 4.2L S/C - Jaguar XJR 4.2L S/C

    Old Jaguar Australia - www.facebook.com/oldjaguarau
    Upgrades and retrofits for late model Land Rover and Jaguar vehicles.

  3. #73
    Join Date
    Dec 2016
    Location
    Melbourne
    Posts
    2
    Quote Originally Posted by Cambo351 View Post

    ...We already have some detailed instructions for the DAB+ and Surround Sound, also the list of parts needed has been established, and where you need custom-made cables (like for the DAB+ and the Surround Sound) I have already made up these cables for other people, so it's all a known thing, not really breaking new ground.

    ...So where to start? I'd suggest DAB+, Surround Sound and TPMS, as I said they've been done before and there is no surprises in making it all work.


    Thanks Cambo351,
    seems like solid advice. Could you point me in the direction of parts lists for the Surround Sound, DAB+ and TPMS (or can you source parts and sell me these, together with the wiring looms you photographed?)

    Cheers,

  4. #74
    Join Date
    Jul 2015
    Location
    Sydney, Australia
    Posts
    246
    Got your PM mate, will reply shortly.

    The wiring harness' for the Surround Sound and DAB antenna I make up myself.

    I have everything here for a DAB+ installation in a 2016 D4, i've also got a spare Surround amplifier in my collection of parts as well.
    Freelander 2 HSE 3.2L - BUILD THREAD
    Jaguar XKR Portfolio 4.2L S/C - Jaguar XJR 4.2L S/C

    Old Jaguar Australia - www.facebook.com/oldjaguarau
    Upgrades and retrofits for late model Land Rover and Jaguar vehicles.

  5. #75
    Join Date
    Jul 2015
    Location
    Sydney, Australia
    Posts
    246
    If anyone wants to do the DAB+ retrofit, I made up a batch of antenna cables today.

    These are the ones that are no longer available to buy from Land Rover, with the special double Fakra connector on them.

    DAB Cables.jpg

    Cheers
    Freelander 2 HSE 3.2L - BUILD THREAD
    Jaguar XKR Portfolio 4.2L S/C - Jaguar XJR 4.2L S/C

    Old Jaguar Australia - www.facebook.com/oldjaguarau
    Upgrades and retrofits for late model Land Rover and Jaguar vehicles.

  6. #76
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    4,249
    G'day Cam
    Do you think I could add DAB+ to a MY08 L322?
    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137

  7. #77
    Join Date
    Jul 2015
    Location
    Sydney, Australia
    Posts
    246
    Quote Originally Posted by rar110 View Post
    G'day Cam
    Do you think I could add DAB+ to a MY08 L322?
    I think it's going to be possible. Although i've not done it on that particular model yet.

    There was a Sirius / SDARS / Satellite Radio option for the North American L322's from 2005MY onward and that module is the same one used in the Disco 3 and Disco 4, also the Freelander 2. So that looks like the same scenario as when I did the DAB+ retrofit on my 2008 FL2, it was not available from the factory at that time, but still worked.

    What i'm not sure about is the antenna arrangement, are there any unused window antennas on the side rear windows? Like can you see an unused press stud on the glass?

    There is a mounting bracket available for the SDARS or DAB module in the L322 up to 2009, Land Rover p/n IPU500172, they are like 10 or so.
    Freelander 2 HSE 3.2L - BUILD THREAD
    Jaguar XKR Portfolio 4.2L S/C - Jaguar XJR 4.2L S/C

    Old Jaguar Australia - www.facebook.com/oldjaguarau
    Upgrades and retrofits for late model Land Rover and Jaguar vehicles.

  8. #78
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    4,249

    Retrofitting missing factory options to new-ish LR's; FL2, Evoque, D3/D4, RRS, etc...

    Thanks. Sounds interesting.

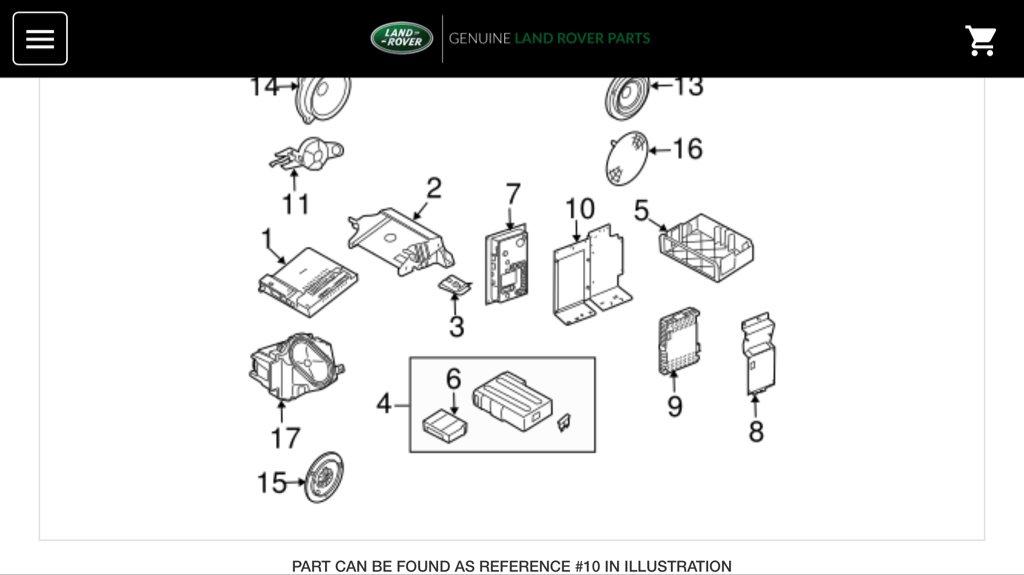

    Is this it (item 10)?:


    I was thinking about something like this.
    Alpine EZI DAB GO Digital Radio (DAB/DAB Interface with Wireless Bluetooth NEW | eBay
    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137

  9. #79
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    4,249

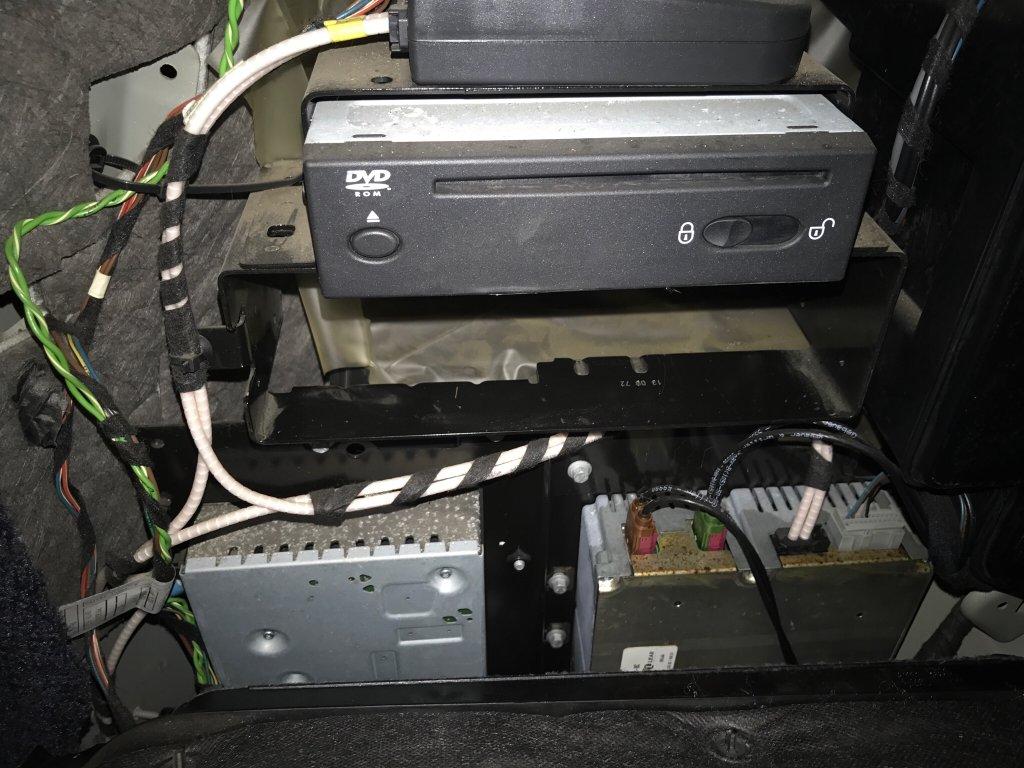

    I think I already have bracket 10. It holds the HK and TV unit.
    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137

  10. #80
    Join Date
    Jul 2015
    Location
    Sydney, Australia
    Posts
    246
    Quote Originally Posted by rar110 View Post
    Thanks. Sounds interesting.
    Is this it (item 10)?:


    I was thinking about something like this.
    Alpine EZI DAB GO Digital Radio (DAB/DAB Interface with Wireless Bluetooth NEW | eBay
    The bracket is item 8 in that drawing.

    Well that Ezi DAB is an FM modulator, so you're going from Digital, to Analogue, then back to Digital again. Plus you have to mount the device somewhere on the dash.

    The whole point of a retrofit with factory components is that it's integrated into the cars infotainment system; completely controlled though the existing touchscreen, steering wheel controls, etc.
    Freelander 2 HSE 3.2L - BUILD THREAD
    Jaguar XKR Portfolio 4.2L S/C - Jaguar XJR 4.2L S/C

    Old Jaguar Australia - www.facebook.com/oldjaguarau
    Upgrades and retrofits for late model Land Rover and Jaguar vehicles.
