Reply With QuoteHey David, which ones are who's vehicles?
Wizard
SupporterOk guys, I've been doing a few measurements of Disco 1's that claim to have 2" lifts. As stated earlier in the post 470mm from the center hub to the bottom of the guard is probably standard height. That being the case a 2" lift should be around 520mm. Most 2" lifts really only claim to give around 40mm lift so in the ball park.
Note where the Disco had guards cut or flares fitted I measured to the bottom of the crease and then subtracted 100mm from the front and 125mm from the rear total measurement.
Results as followed:
Disco 1: F 485mm R 485mm
Disco 2: F 515mm R 555mm
Disco 3: F 515mm R 555mm (R 2" springs + 2" spacers)
Disco 4: F 500mm R 535mm
Disco 5: F 518mm R 530mm
Disco 6: F 560mm R 590mm (F+R 2" springs + 2" body lift)
So hope that help any one trying to work out if there Disco is lifted or not. Feel free to add your measurement and what type of lift you have so people may have some reference in the future.
Cheers, David.
My Land Rover has made me a better Mechanic........
D2 TD5 Manual, CDL, Detroit Rear, Truetac Front, 2" OME lift, 32" MT Tyres, ARB Bull Bar, Winch, TJM Roof Rack, Driving Lights, Dual Batteries, ARB Side Steps, Rear Draws, Uhf.
OldBushie
Hey David, which ones are who's vehicles?
Master
Heres my measurements going from all original suspension on a 97' V8 to Dobinsons springs
C51-018 and C51-022 with Procomp shocks.
FL: 445mm
FR: 435mm
RL: 485mm
RR: 452mm
After lift...
FL: 510mm
FR: 505mm
RL: 535mm
RR: 528mm
Only rear extra weight the car carrys is a full length steel roof rack.
Spring were installed in the indicated corners but as you can see the Drivers side still sits lower than passenger.
Cheers,
Rez
Master
Im still scratchin my head on this one
As previously mentioned, mine r 470/500 front/rear with a 2" lift.
They are OMEsprings which Im told are Kings???
Talking to the guy a Moorabbin spring works, he says after fitting new Kings , I will achieve500/530 f&r.
My question is presuming the OME are Kings, will I be back to square 1 in a few months time???
The springs Im talking about are the most heavy duty ones from Kings.
Also, does anyone who,s had both, have a preferance 4 Dobinsons or Kings?
Cheers Dean.
Wizard
SupporterWas keeping names out but since you asked.Originally Posted by Chops
1: Discovery300Tdi
2: Chops
3: SPROVER
4: ssmith
5: jibbut56 (I think this is Phil)
6: Brenno
You can check out there rides to see what they look like.
Cheers, David.
My Land Rover has made me a better Mechanic........
D2 TD5 Manual, CDL, Detroit Rear, Truetac Front, 2" OME lift, 32" MT Tyres, ARB Bull Bar, Winch, TJM Roof Rack, Driving Lights, Dual Batteries, ARB Side Steps, Rear Draws, Uhf.
Wizard
Supporter[QUOTE=Rezley;
Spring were installed in the indicated corners but as you can see the Drivers side still sits lower than passenger.
Cheers,
Rez[/QUOTE]
I only put one front and rear measurement but on mine and a lot of the others they sat lower on the drivers side. I think this is a Disco trait and always returns.
Cheers, David.
My Land Rover has made me a better Mechanic........
D2 TD5 Manual, CDL, Detroit Rear, Truetac Front, 2" OME lift, 32" MT Tyres, ARB Bull Bar, Winch, TJM Roof Rack, Driving Lights, Dual Batteries, ARB Side Steps, Rear Draws, Uhf.
Wizard
SupporterI'm happy with my rear hieght at 515mm so I just picked up some 30mm front coil spacers to try it out and bring it back to the same as the rear. I'll see how they go. They are pretty cheap so I'll try them before I get new springs.Im still scratchin my head on this one
As previously mentioned, mine r 470/500 front/rear with a 2" lift.
They are OMEsprings which Im told are Kings???
Talking to the guy a Moorabbin spring works, he says after fitting new Kings , I will achieve500/530 f&r.
Cheers Dean.
Cheers, David.
My Land Rover has made me a better Mechanic........
D2 TD5 Manual, CDL, Detroit Rear, Truetac Front, 2" OME lift, 32" MT Tyres, ARB Bull Bar, Winch, TJM Roof Rack, Driving Lights, Dual Batteries, ARB Side Steps, Rear Draws, Uhf.
Where you get the spacers from davo?? Wouldn't
mind some myself being the lowest measurment d1 there with a 2" lift lol
Wizard
SupporterJust put them in tonight. Now sitting around 525mm in the front. That's straight off the jack though so may settle after a run. I'll let you know how they go.
I got them from the 4wd workshop in Frankston. $39.00 a pair and are Ironman ones. They advertise on ebay under Discovery seach.
Cheers, David.
My Land Rover has made me a better Mechanic........
D2 TD5 Manual, CDL, Detroit Rear, Truetac Front, 2" OME lift, 32" MT Tyres, ARB Bull Bar, Winch, TJM Roof Rack, Driving Lights, Dual Batteries, ARB Side Steps, Rear Draws, Uhf.
Hi,
I recently had a 2" lift completed - I know I should have done it myself but I ahve been busy and have to have the rig ready for Cape York at the end of next month.
Measurements are:
FL - 480mm
FR - 475mm
RL - 550mm
RR - 545mm
I hope the slope to the right is not related to the time I spend on that side.
At the same time I had a TJM winch bar and Safari snorkel fitted to the front and Poly Air Springs in the rear coils - these are set at 8psi in the above measurements.

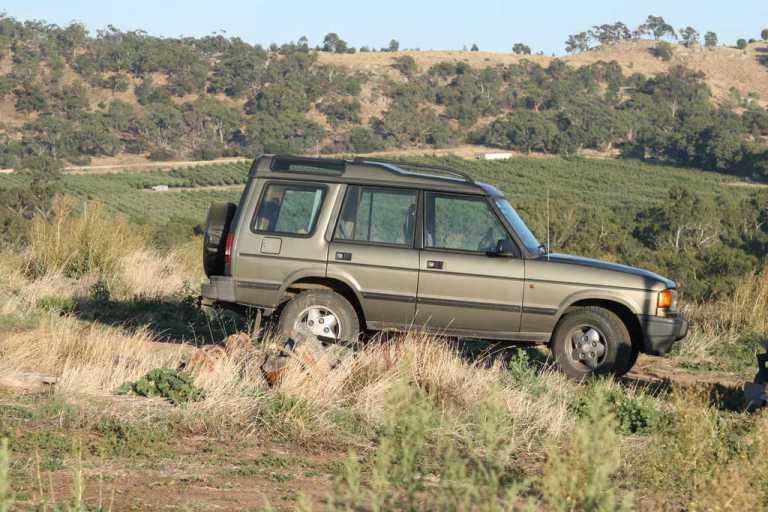

This is the before shot in my back yard a few months ago.

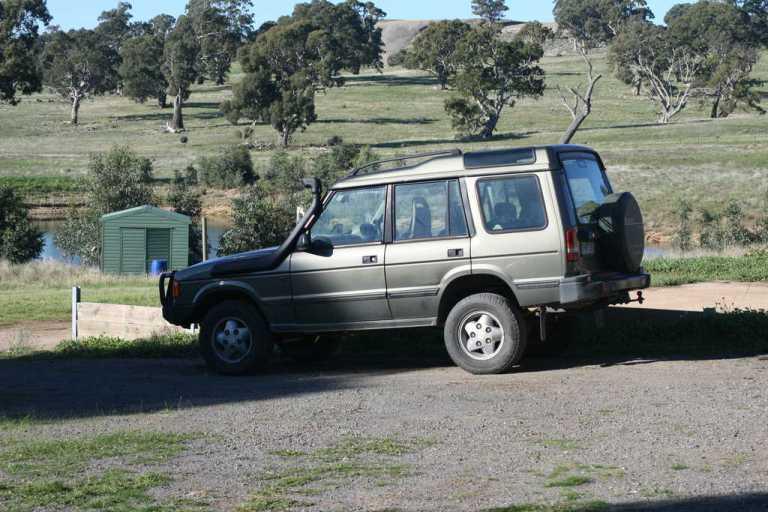

Then the after shot in the front yard yesterday. (Sorry about the shadow).
Bill
