  1. 18th April 2020, 07:49 PM #11
    PhilipA
    PhilipA is offline Swaggie Subscriber
    Join Date
    Jan 1970
    Location
    Avoca Beach
    Posts
    14,152
    Total Downloaded
    0
    As long as it is a Factory switch but it may not be, thus my recommendation of using a multimeter.
    Regards PhilipA
    Reply With Quote Reply With Quote
  2. 21st April 2020, 01:32 PM #12
    Matg43
    Matg43 is offline Fossicker
    Join Date
    Jul 2019
    Location
    Tasmania
    Posts
    28
    Total Downloaded
    0
    Quote Originally Posted by PhilipA View Post
    As long as it is a Factory switch but it may not be, thus my recommendation of using a multimeter.
    Regards PhilipA
    Hi Phillip, I gave up on the light and am just focused on getting it back together now. Ive gone to connect the CDL link to the leaver and it doesnt line up. it sits about an inch forward of the leaver. its positioned with the pivot point and bolted to the CDL nipple.. Any ideas on why this is and how I could rectify?

    Cheers
    Attached Images Attached Images
    Reply With Quote Reply With Quote
  3. 21st April 2020, 01:43 PM #13
    PhilipA
    PhilipA is offline Swaggie Subscriber
    Join Date
    Jan 1970
    Location
    Avoca Beach
    Posts
    14,152
    Total Downloaded
    0
    That is a D1 linkage as you probably know. do you have the bottom bit facing the correct way.
    Reply With Quote Reply With Quote
  4. 21st April 2020, 01:57 PM #14
    Matg43
    Matg43 is offline Fossicker
    Join Date
    Jul 2019
    Location
    Tasmania
    Posts
    28
    Total Downloaded
    0
    Quote Originally Posted by PhilipA View Post
    That is a D1 linkage as you probably know. do you have the bottom bit facing the correct way.
    Yep, I do. I think the issue I have is I have the same arm the u have there (u channel) on anu auto set up which according to part list was on manuals up to a certain point. But all the info/instruction I can find indicate that that arm there is for auto's and the manual has the flat bar style. Im thinking ill have to turn the plate that sits on the CDL nipple around to bring the arm back (but I think that will turn around orientation of the direction of the shifter) or use a bolt to join the arm to the lever assembly.

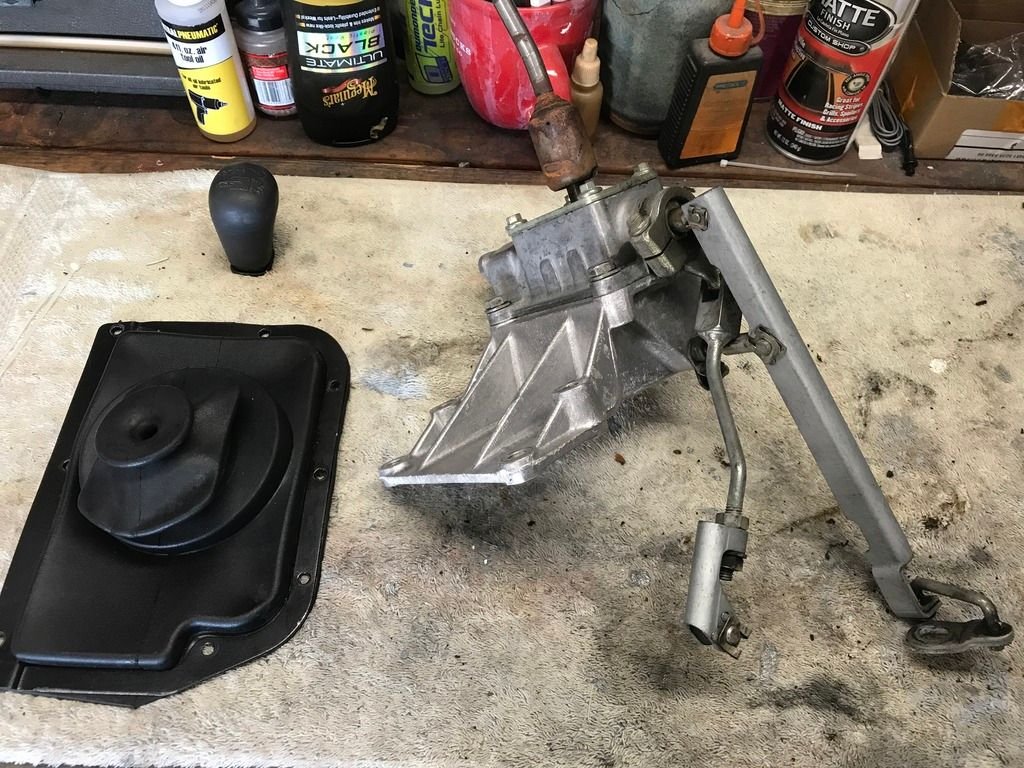

    it definitely cam off a manual here is what I took it off

    Reply With Quote Reply With Quote
  5. 21st April 2020, 02:50 PM #15
    PhilipA
    PhilipA is offline Swaggie Subscriber
    Join Date
    Jan 1970
    Location
    Avoca Beach
    Posts
    14,152
    Total Downloaded
    0
    So here are the two versions.
    maybe bend up a bit of strap to suit.
    Reply With Quote Reply With Quote
  6. 21st April 2020, 03:41 PM #16
    Matg43
    Matg43 is offline Fossicker
    Join Date
    Jul 2019
    Location
    Tasmania
    Posts
    28
    Total Downloaded
    0
    Quote Originally Posted by PhilipA View Post
    So here are the two versions.
    maybe bend up a bit of strap to suit.
    Yeah thats what im going off. so that says ive got a part for an auto... yet it cam from a manual.
    Ive got no way of making this work. what is a pretty easy job (why I decided to do it myself) has turned out to be a nightmare.

    Thanks for ur help mate!
    Reply With Quote Reply With Quote
  7. 21st April 2020, 06:06 PM #17
    Kaaaiju
    Kaaaiju is offline Master Subscriber
    Join Date
    Jul 2017
    Location
    Victoria
    Posts
    834
    Total Downloaded
    0
    Should of just bought an d2a Cable one!
    Quote Originally Posted by Matg43 View Post
    Yeah thats what im going off. so that says ive got a part for an auto... yet it cam from a manual.
    Ive got no way of making this work. what is a pretty easy job (why I decided to do it myself) has turned out to be a nightmare.

    Thanks for ur help mate!
    Reply With Quote Reply With Quote
  8. 21st April 2020, 08:53 PM #18
    PhilipA
    PhilipA is offline Swaggie Subscriber
    Join Date
    Jan 1970
    Location
    Avoca Beach
    Posts
    14,152
    Total Downloaded
    0
    One last time.
    Have you got the bit that connects to the transfer case in the same orientation as on the car you took it off.
    It seems to me that the wrong distance at the top would equal the arm being on back to front on the transfer case.
    Regards PhilipA
