Thread: Air suspension air filter

Ok, figured it out . The vent has four clips as seen below. You need to compress / pull the vent sideways and they will release. Do all four and it slides out giving access to release the suspension air filter from its body mount.


Hope this helps someone else.

When I rebuild my air compressor I also want to replace this filter - anyone done it on a RRS - I assume it is the same procedure and in the same place as the D3.

Ouch - just spotted the price of these fiters at around $250 - are there cheaper alternatives or rebuid kits? Why not just put a plastic $5 inline fuel filter on the end?

Thanks

Garry

Originally Posted by garrycol

When I rebuild my air compressor I also want to replace this filter - anyone done it on a RRS - I assume it is the same procedure and in the same place as the D3.

Thanks

Garry

Not sure about the RRS side of things, but I highly recommend changing the filter out for the type I have fitted, as with all the dirt road driving I have done since, there is not a speck of dust behind the filter, but tonnes before the element - unlike my OE filter that had almost equal amounts of dust before and after the filter material.

Originally Posted by BushDisco

Ok, figured it out . The vent has four clips as seen below. You need to compress / pull the vent sideways and they will release.
Do all four and it slides out giving access to release the suspension air filter from its body mount.


Great tip thanks. So you mean compress the entire vent body at the four points by pushing on its outer edge in the right spots?
I have the same components as Justin ready to go, just need to release this thing to get at it.

Scott

Just got mine out to take a look. Was perfectly clean under the lower filter. When I went to wash the larger primary filter it just disintegrated in my hand. I've cut a new one out of a sponge.

Originally Posted by Grentarc

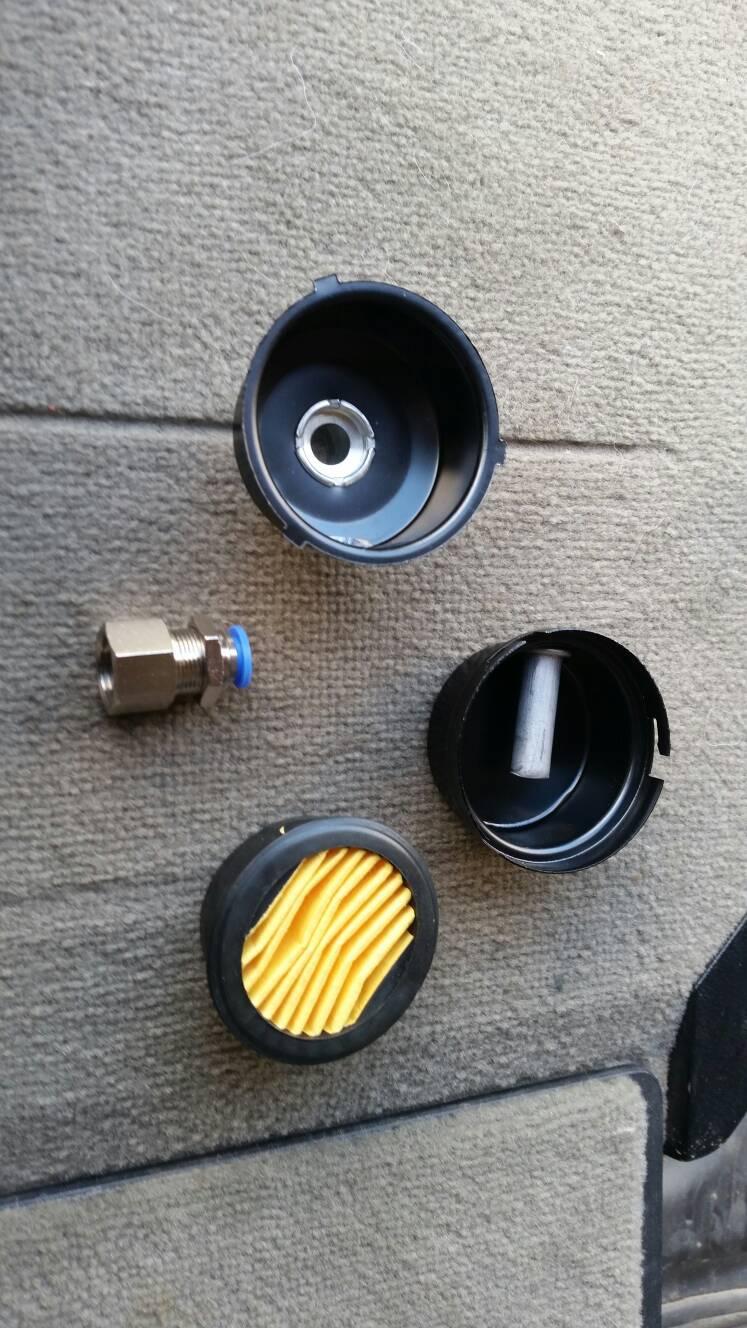

My new filter arrived today, so I have now installed it - there is no speed reduction to my suspension raising after depleting the resivoir.
I have not got a photo of it mounted, as I only have it cable tied to stop it moving until I fabricate a proper bracket.

Where did you get this/make it up from please? Would like to do the same. Cheers

Originally Posted by DiscoJeffster

Where did you get this/make it up from please? Would like to do the same. Cheers

Filter housing

3/8PT 1.6 cm Air Compressor Intake Filter Muffler Black | eBay

Threaded to push fit

KELM PLASTIC PUSH IN FITTINGS - 8MM X 3/8" NPT FEMALE STUD 5-02449

Replacement elements

Air Compressor Intake Filter Silencer Metal Housing Replacement Paper Element

Legend!
