My d1 rearbar..........

**long stroke** · 18th April 2009, 05:33 PM

I thought i should start a thread on my progress so far

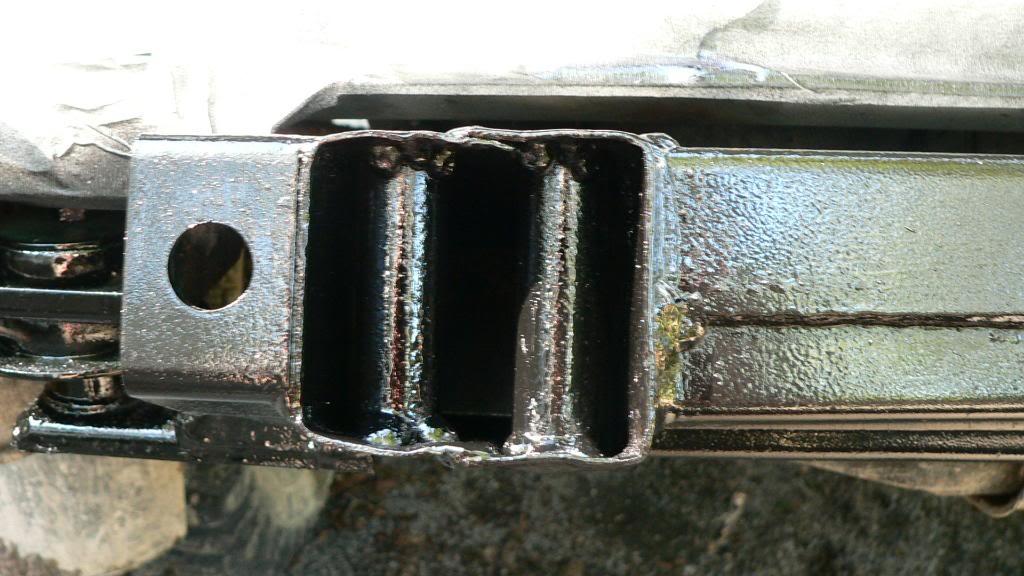

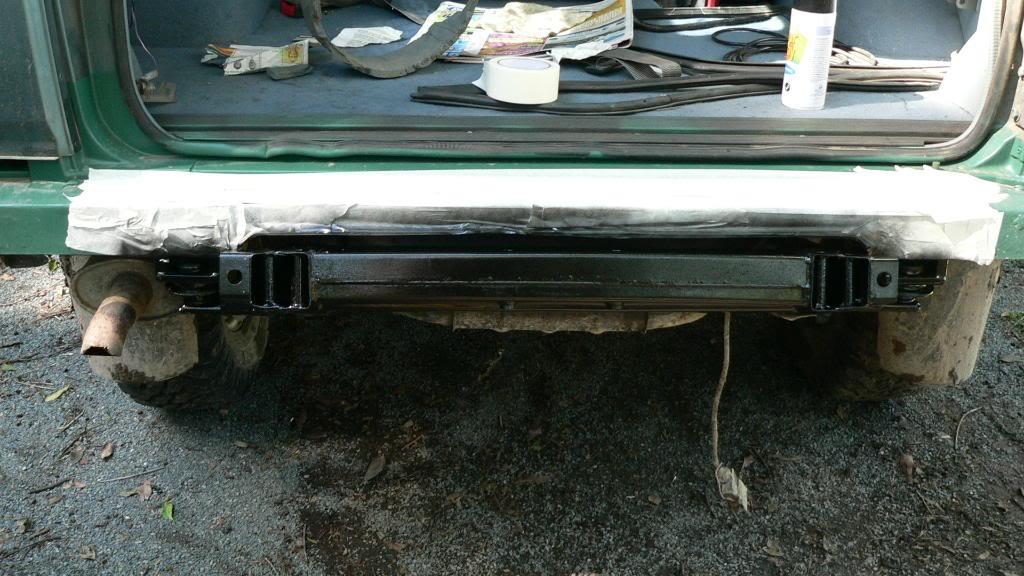

First i welded crush tubes into where i planed to mount it, then i gave the whole rear part of the chassis a coat of ex-trol, then painted over it with some cheap black..

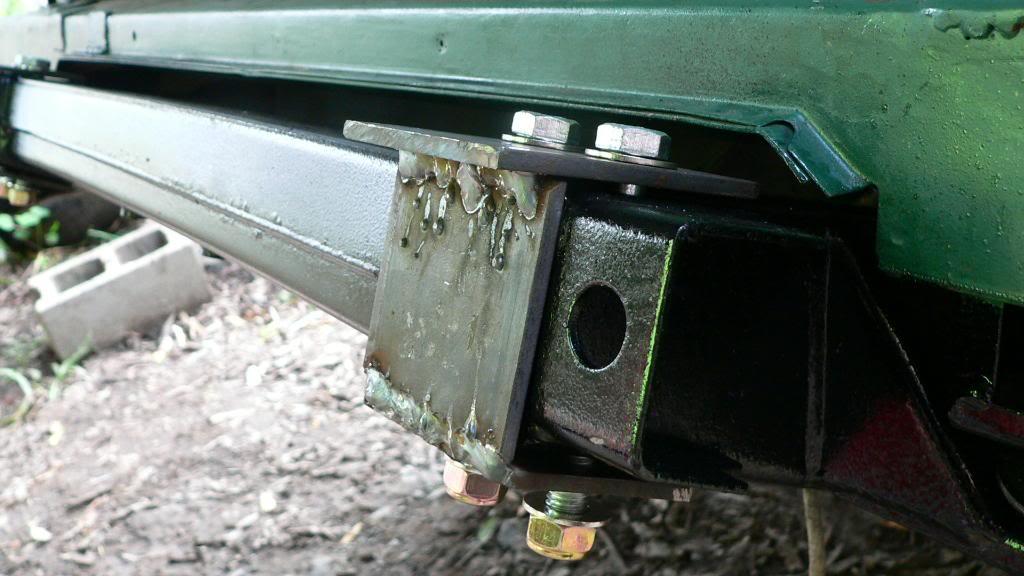

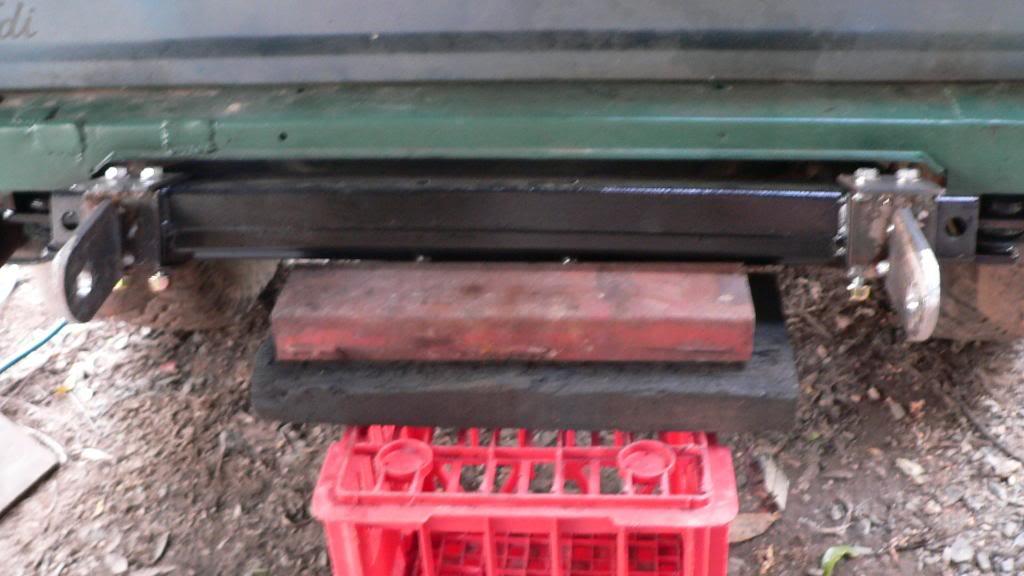

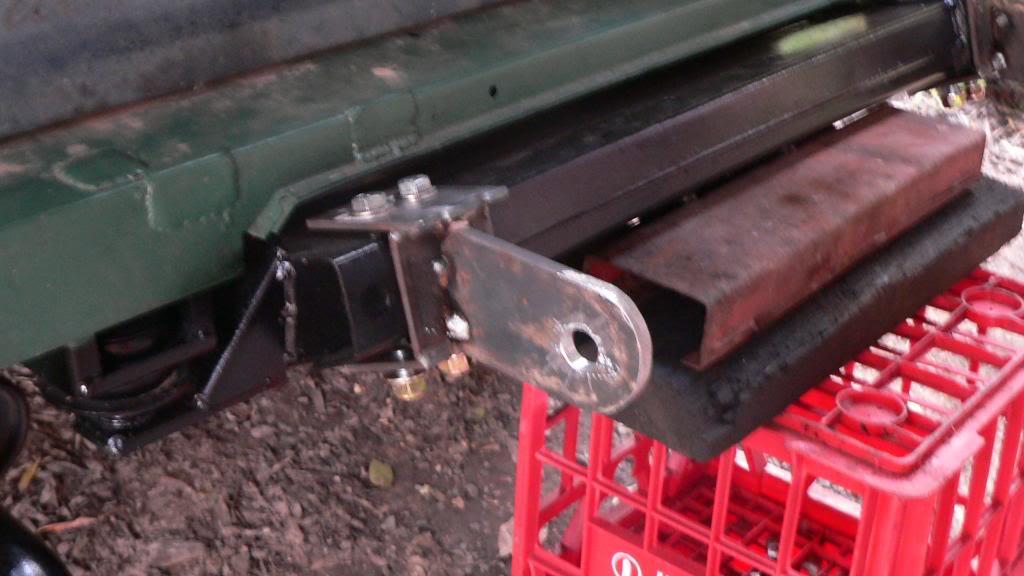

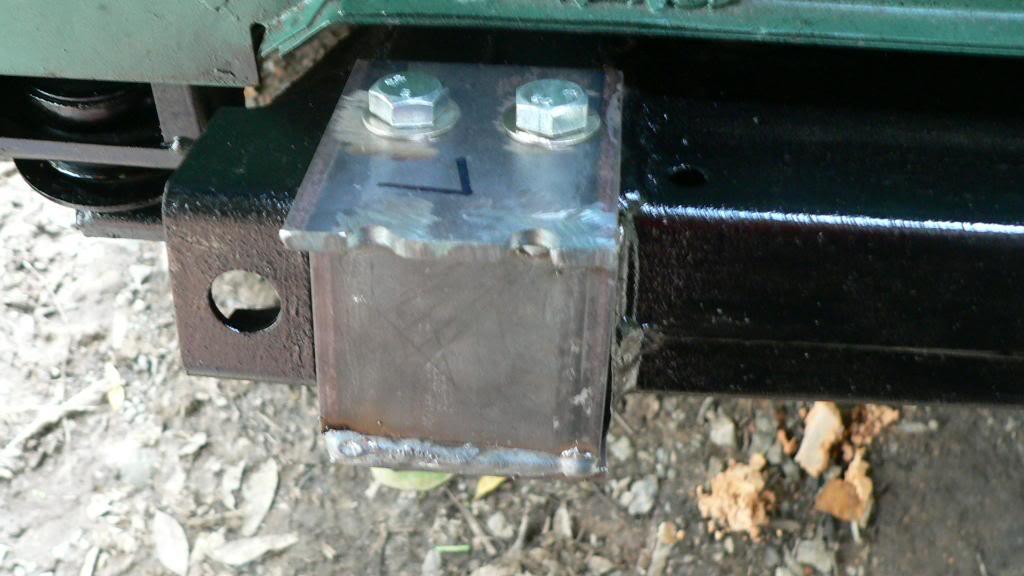

Then we made up the mounting brackets out of 5 or 6mm plate (can't remember)
I'm using 12mm 8.8 high tensile bolts (4 of) probebly an over kill but i plan on mounting recovery points on it aswell

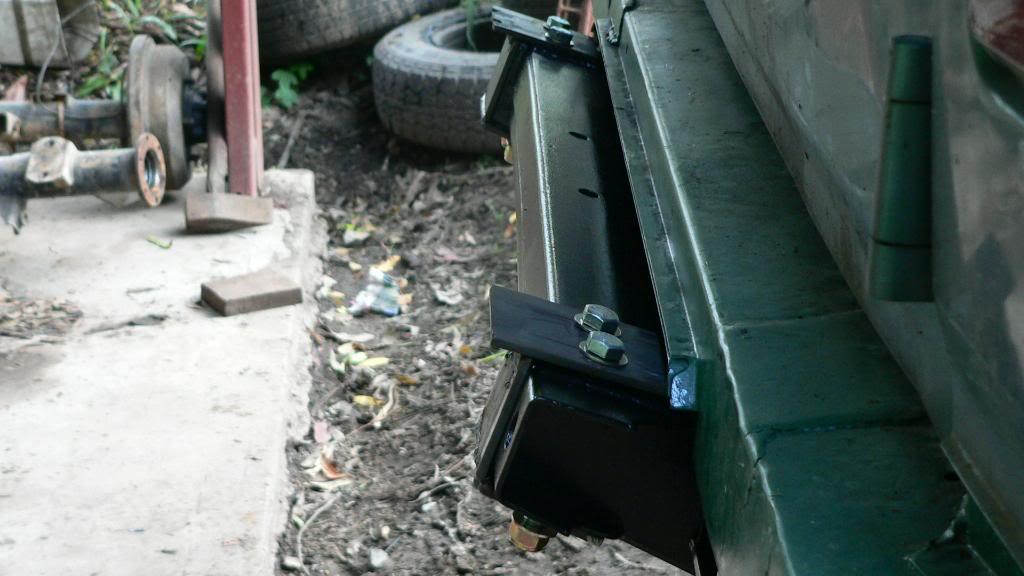

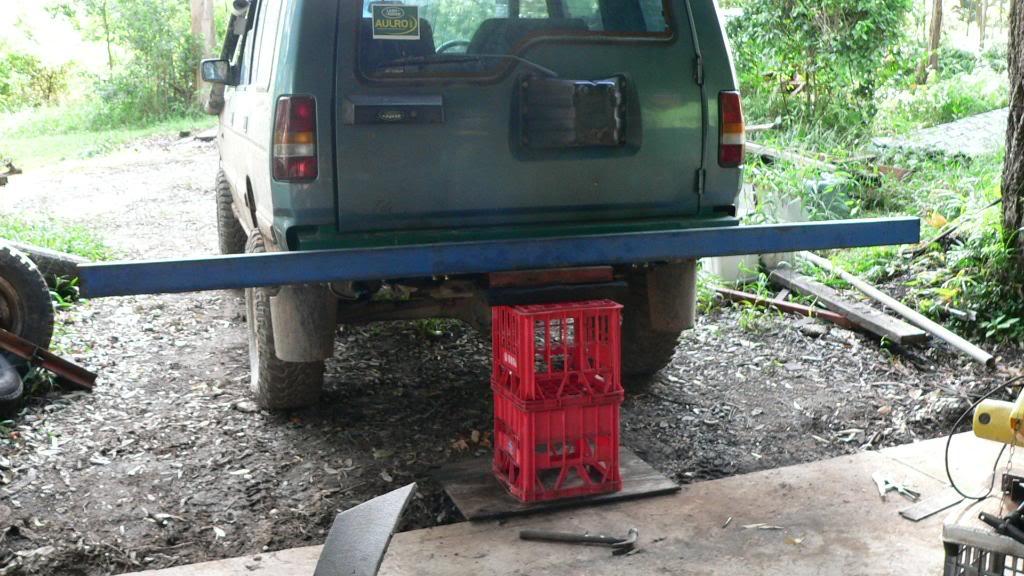

Chocked up in position...

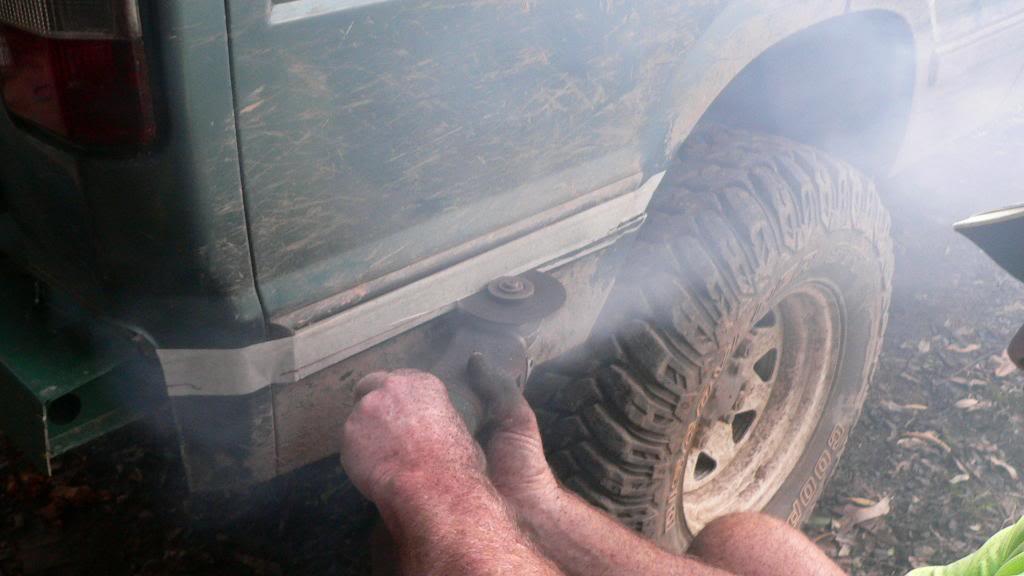

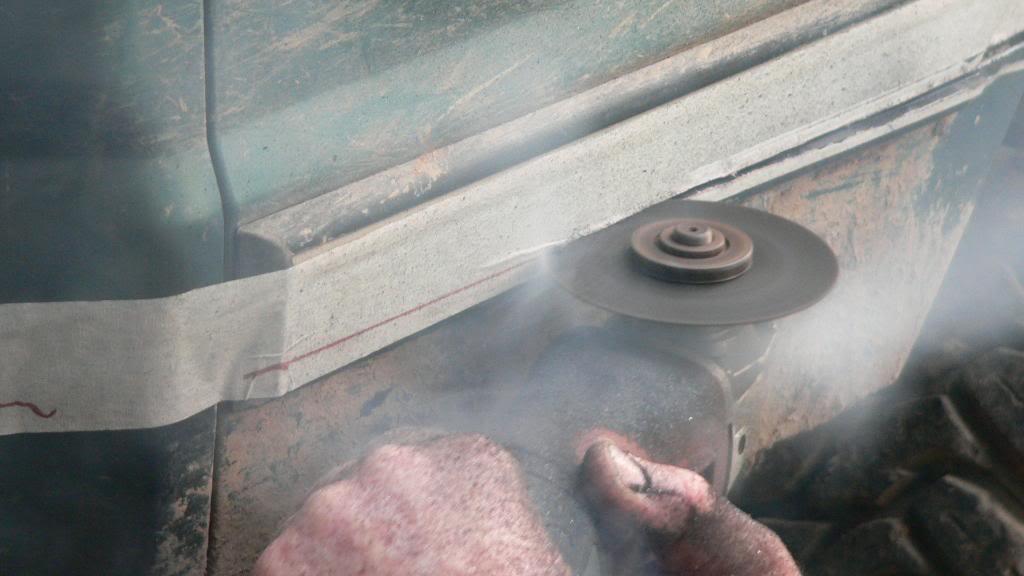

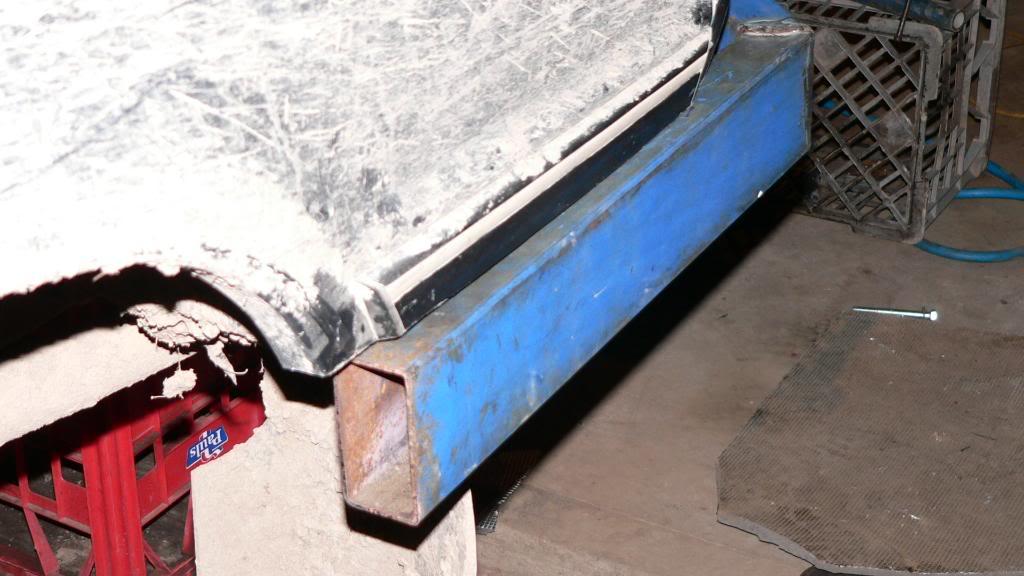

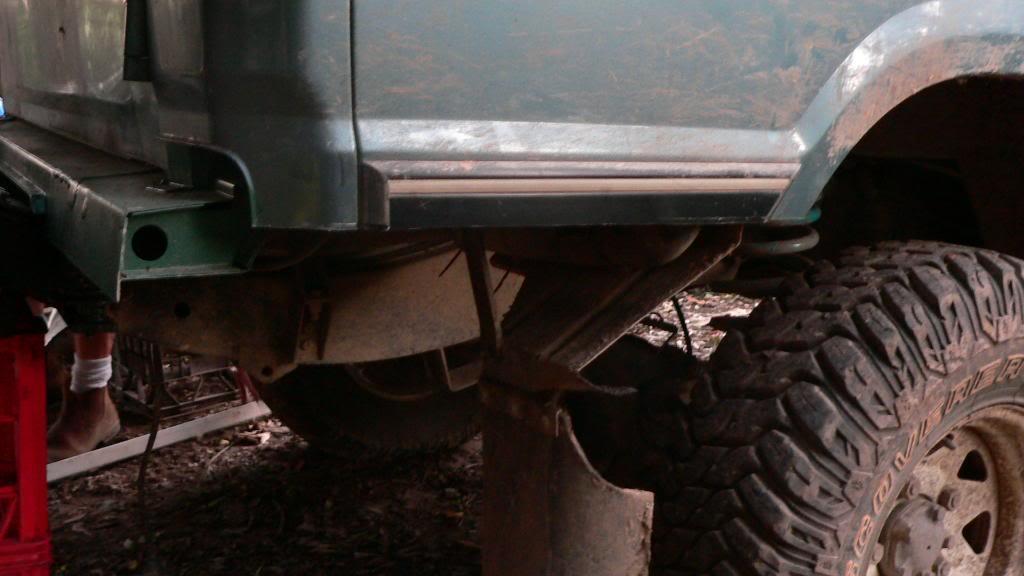

Cutting the rear pannel to allow for the bar to rap right round the side for more protection..

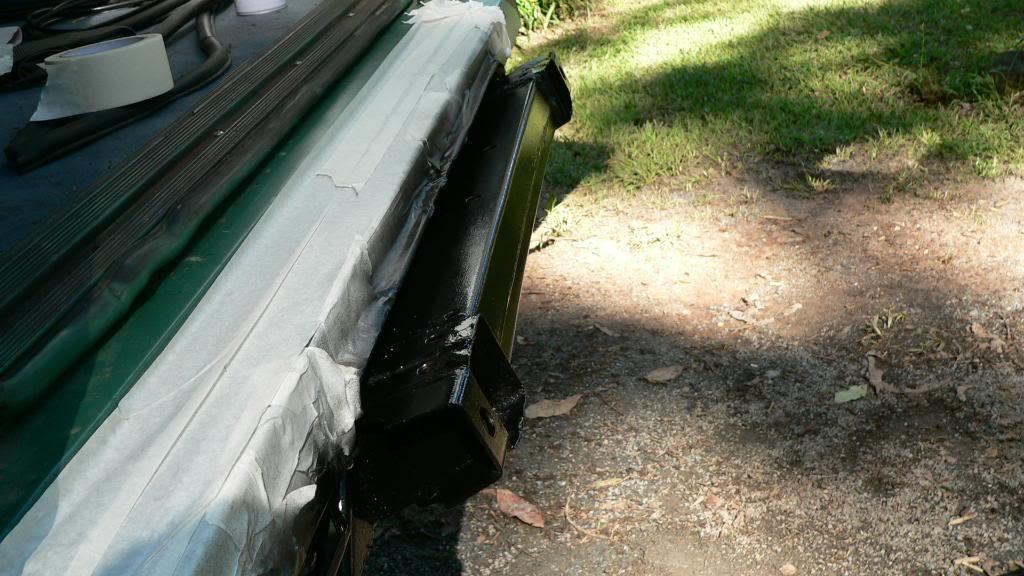

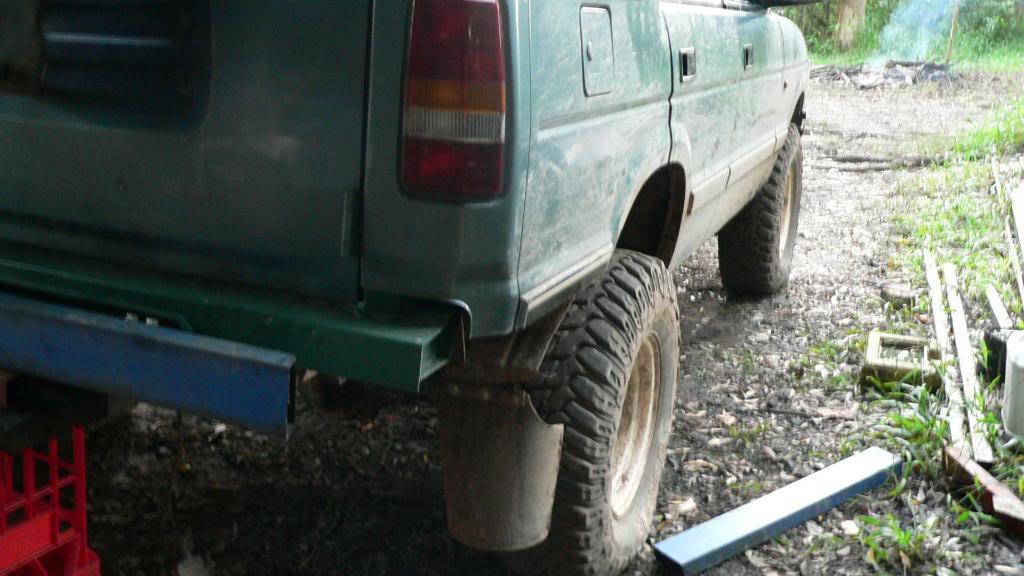

Cut off..

Thats all we got done today, more to come tomorrow, should get it tacked into position with all the bends done

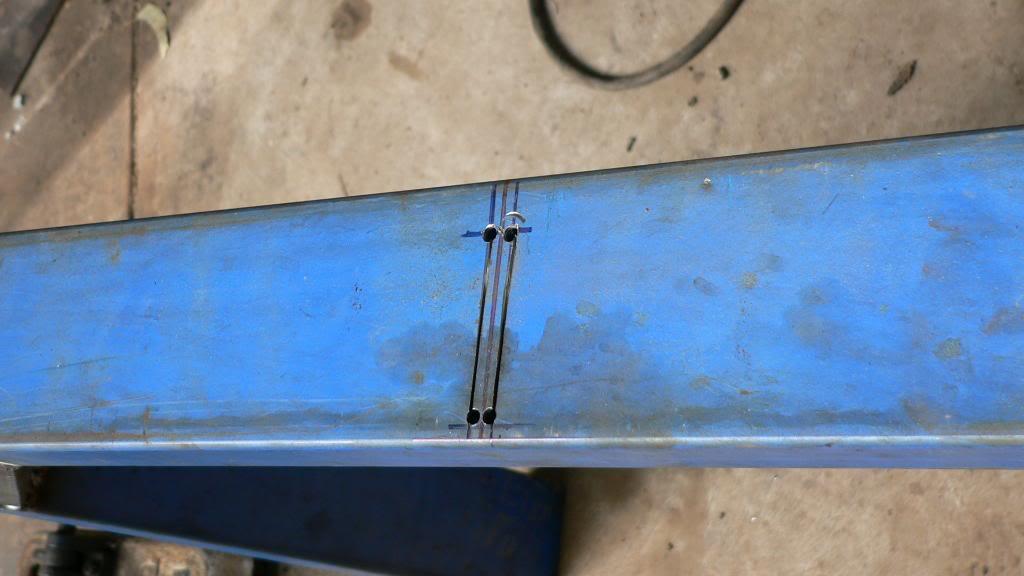

We've already got one bent cut and ready to weld

TIM.

**cucinadio** · 18th April 2009, 05:57 PM

coming on well mate ...keep them coming

cheers

Matt

**Grover-98** · 18th April 2009, 09:32 PM

Very nice build mate can't wait to see the final product!

I wish i had the skills to tackle these tasks on my own!

**4wd4fun** · 18th April 2009, 09:41 PM

Looking Good,
I am still having trouble just thinking about puting grinder to the guards.

I now it needs to be done but just the thought of it cutting up a perfectly good undamaged car.

looking forward to the rest of the thread.

**Fusion** · 18th April 2009, 10:53 PM

Looking good Tim

. Hoping to get some more done to my rear bar soon

.

**long stroke** · 19th April 2009, 07:44 AM

Thanks guys!!!

Once you get going on making it it isn't that hard as long as you have the tools

We used-drill press, welder, cut-off saw, angle grinder, power drill and thats about it apart from the hammer

Should get some more done today

CHEERS TIM.

**long stroke** · 19th April 2009, 06:20 PM

Plenty of progress today, got it welded up etc

Still a couple of side brackets to weld/bolt on

Getting the angles on the bends right was a mongral

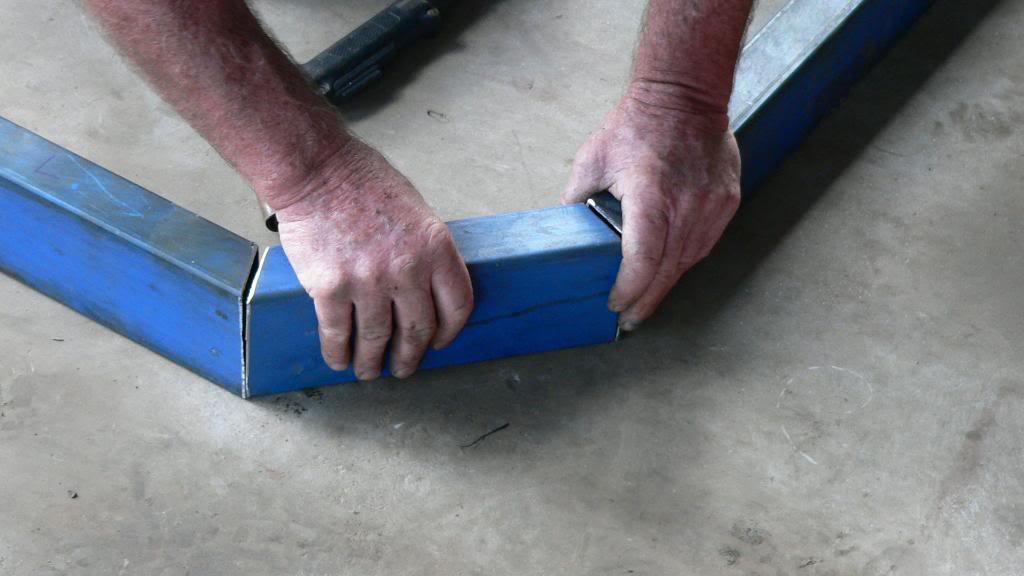

Lining it up..

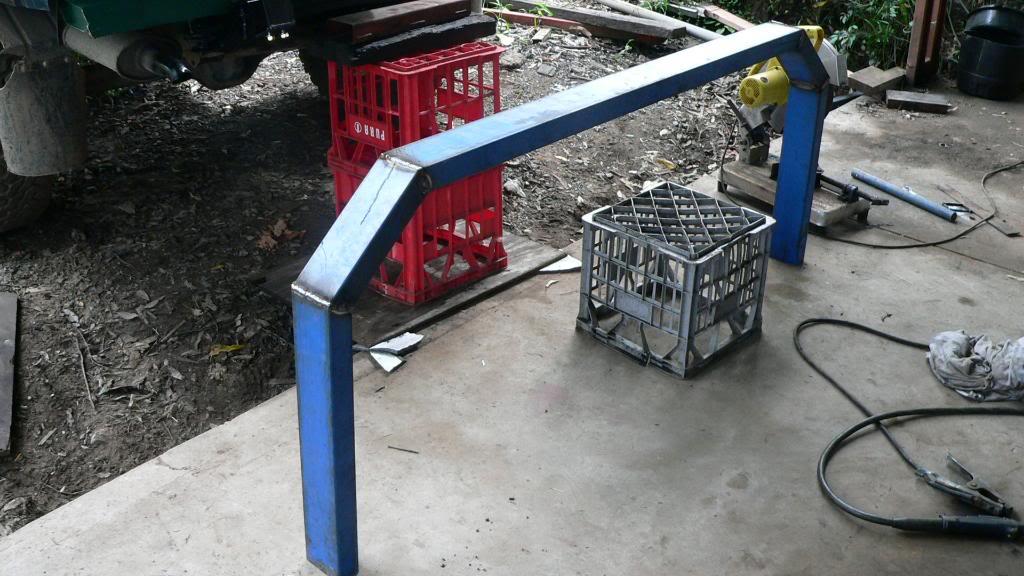

Tacked in position..

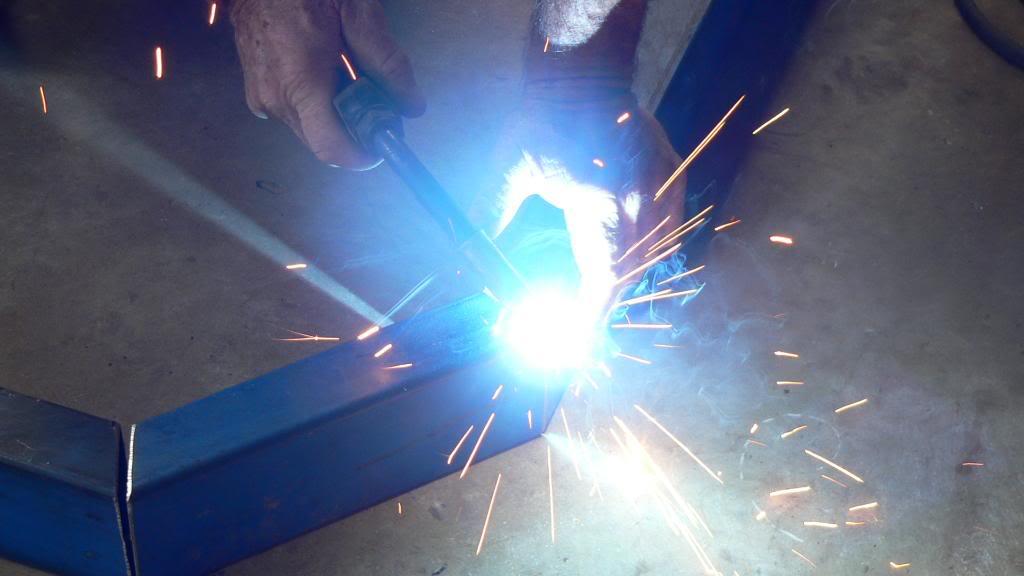

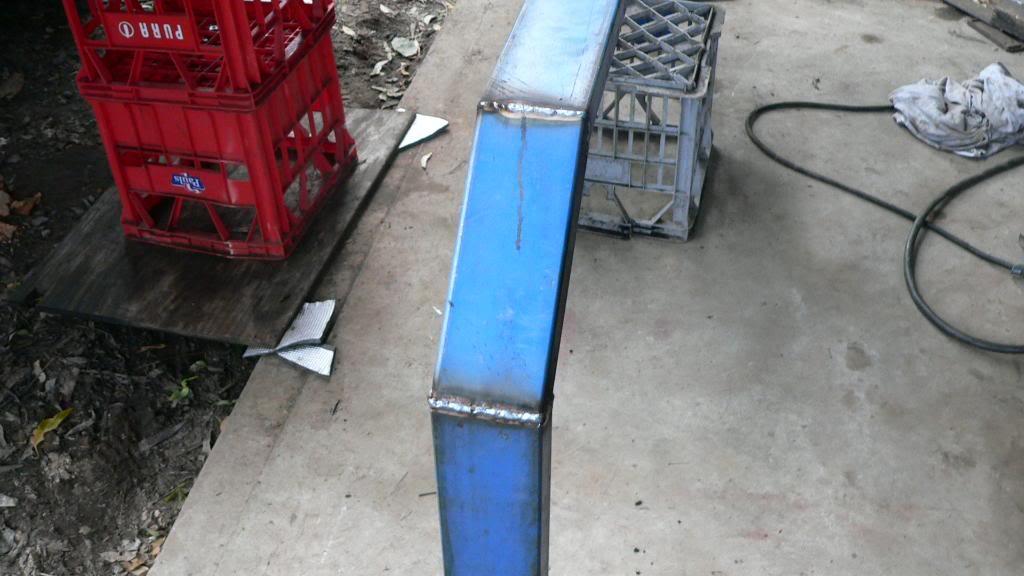

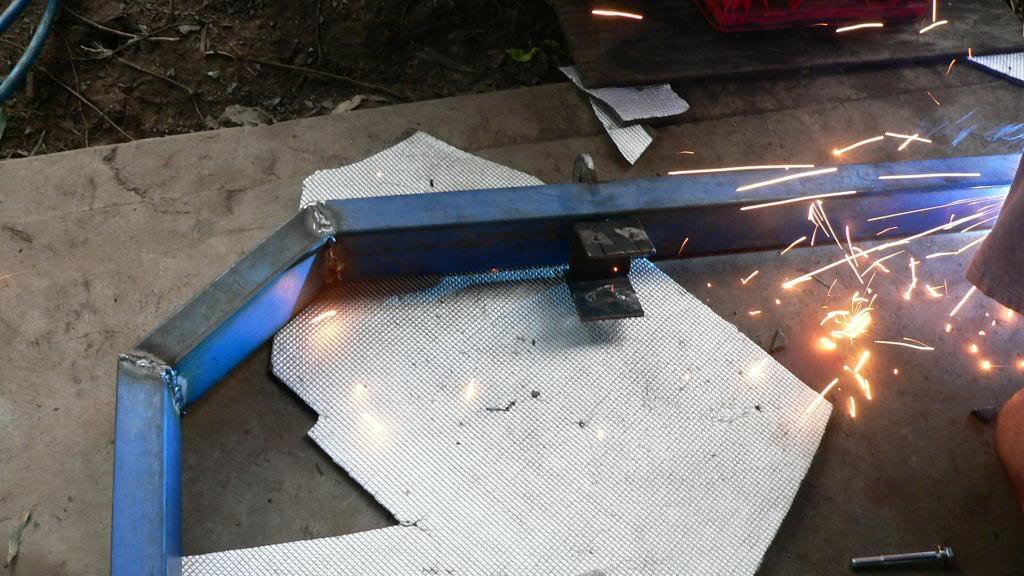

Welded up.

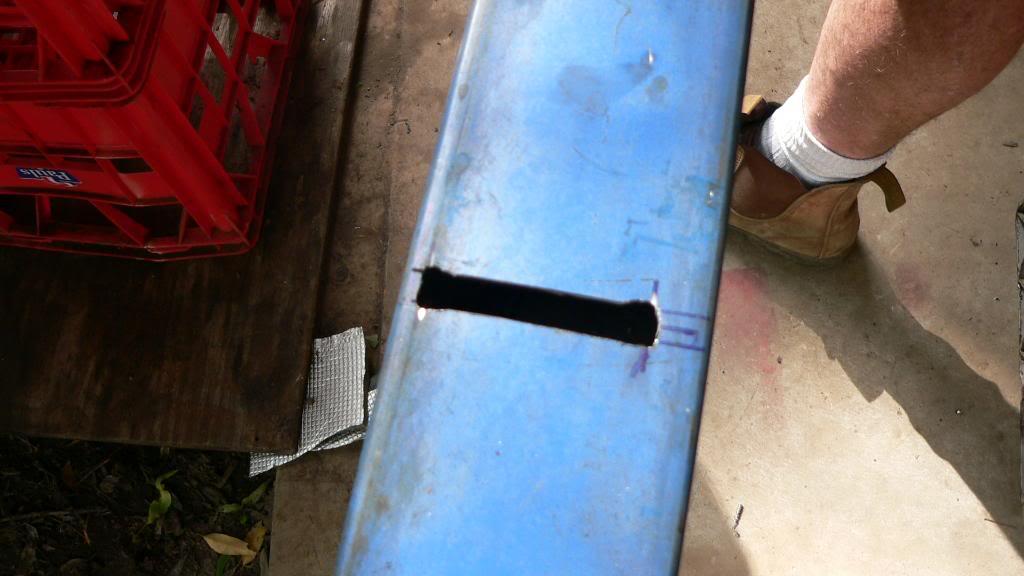

Slots for the recovery points to go through..

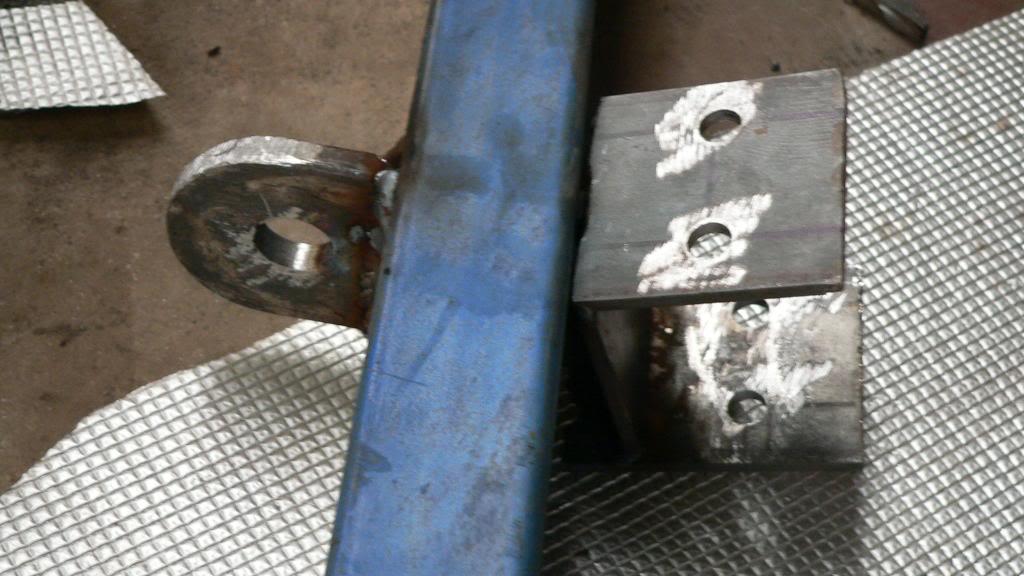

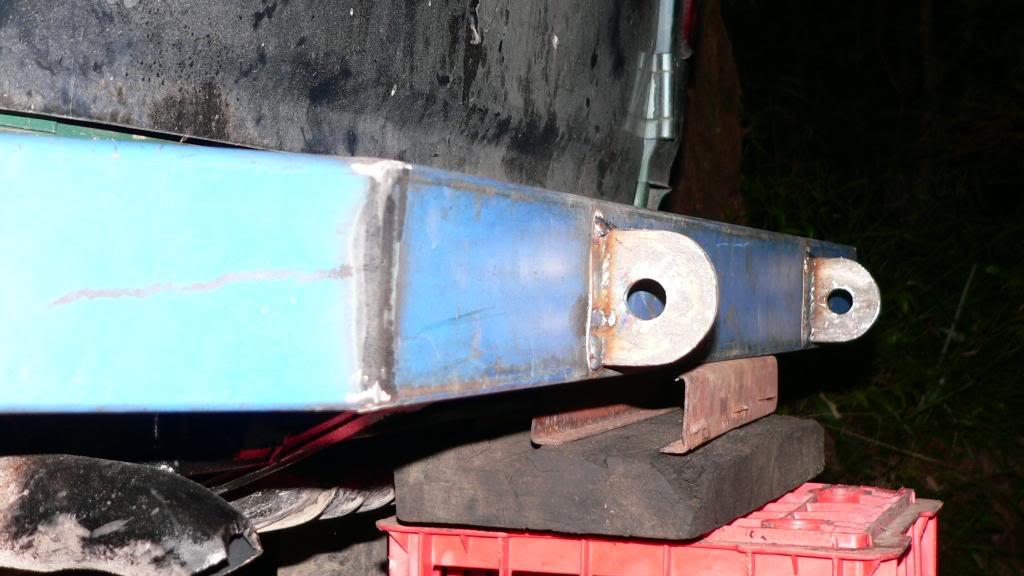

Recovery points tacked in pos

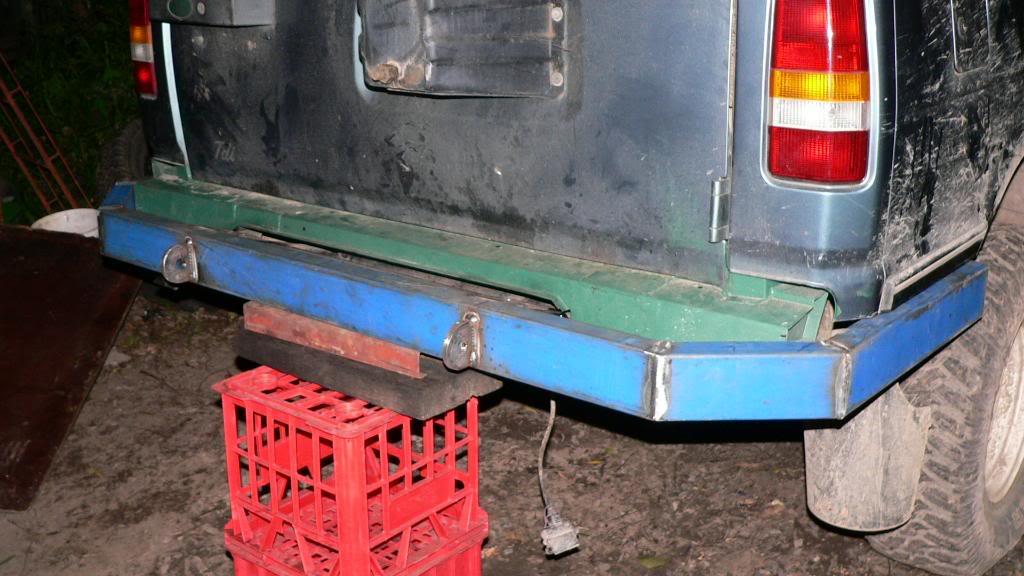

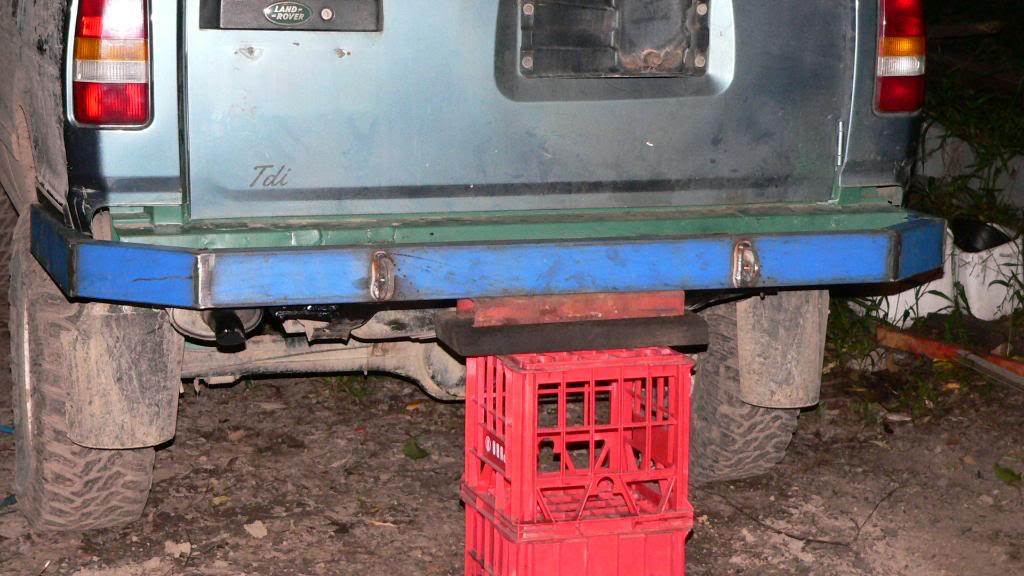

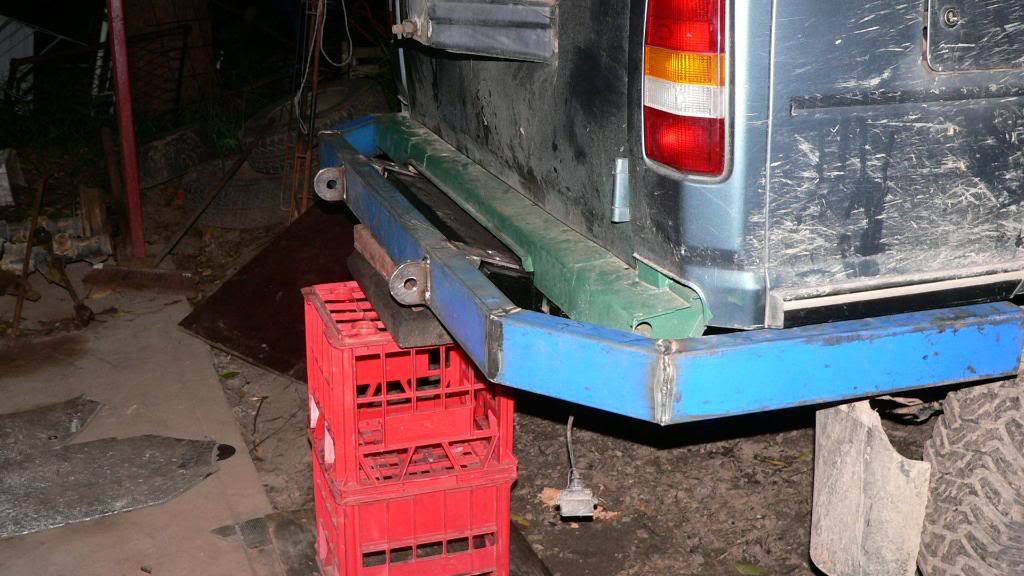

And on it goes

Plenty more to do before i paint it

More updates tomorrow

CHEERS TIM.

**Matman** · 19th April 2009, 06:42 PM

Looks good Tim,just dont paint it green lol.

**long stroke** · 19th April 2009, 06:44 PM

Originally Posted by Matman

Looks good Tim,just dont paint it green lol.

Why not????

**DRanged** · 19th April 2009, 07:15 PM

Hey tim

Looking good mate keep up the good work. But pls put the guard back on the grinder. Those new ultra cutting discs can be leathal. A guy up here bled out and died after a piece of a disc lodged in his throat. No guard on the grinder!!!!!!.

Take it easy

Justin
