Thread: Clutch master cylinder - whats going on?

  1. 2nd March 2013, 05:51 PM #21
    yt110
    yt110 is offline Master
    Join Date
    Feb 2008
    Location
    Adelaide Hills
    Posts
    221
    Total Downloaded
    0
    Quote Originally Posted by steveG View Post
    Nope - no spacer plate. Are they meant to have one, or is yours a mod?

    Steve
    Has not been mod. by me,parts book shows a gasket 592358,mine looks like a piece of tin.
    Jim

    Just had a look in another book, Gasket, aluminium 1/32 inch thick
    Reply With Quote Reply With Quote
  2. 2nd March 2013, 10:21 PM #22
    steveG's Avatar
    steveG
    steveG is offline TopicToaster Subscriber
    Join Date
    Sep 2008
    Location
    Geelong, VIC
    Posts
    4,442
    Total Downloaded
    0
    Quote Originally Posted by yt110 View Post
    Has not been mod. by me,parts book shows a gasket 592358,mine looks like a piece of tin.
    Jim

    Just had a look in another book, Gasket, aluminium 1/32 inch thick
    Thanks. So just a gasket not really a spacer, and definitely nowhere near enough to get me any gap on the pushrod.

    Looks like I need to remove it again and sort it out.

    Steve
    1985 County - Isuzu 4bd1 with HX30W turbo, LT95, 255/85-16 KM2's
    1988 120 with rust and potential
    1999 300tdi 130 single cab - "stock as bro"
    2003 D2a Td5 - the boss's daily drive
    Reply With Quote Reply With Quote
  3. 3rd March 2013, 07:08 AM #23
    Bearman's Avatar
    Bearman
    Bearman is offline TopicToaster Gold Subscriber
    Join Date
    Jun 2006
    Location
    Hay Point
    Posts
    4,043
    Total Downloaded
    0
    How does the new one compare to the old. i.e : is the pushrod and thread the same length.
    Cheers......Brian
    1985 110 V8 County
    1998 110 Perentie GS Cargo 6X6 ARN 202516 (Brutus)
    Reply With Quote Reply With Quote
  4. 3rd March 2013, 07:11 AM #24
    Bushie's Avatar
    Bushie
    Bushie is offline AT REST Gold Subscriber
    Join Date
    May 2002
    Location
    Heathcote (in "The Shire")
    Posts
    5,348
    Total Downloaded
    0
    If you still have the old one, swap the push rods over.


    Martyn
    1998 Defender
    2008 Madigan
    2010 Cape York
    2012 Beadell, Bombs and other Blasts
    2014 Centreing the Simpson
    VKS-737 mob 7669



    Reply With Quote Reply With Quote
  5. 11th March 2013, 09:00 PM #25
    steveG's Avatar
    steveG
    steveG is offline TopicToaster Subscriber
    Join Date
    Sep 2008
    Location
    Geelong, VIC
    Posts
    4,442
    Total Downloaded
    0
    Quote Originally Posted by Bearman View Post
    How does the new one compare to the old. i.e : is the pushrod and thread the same length.

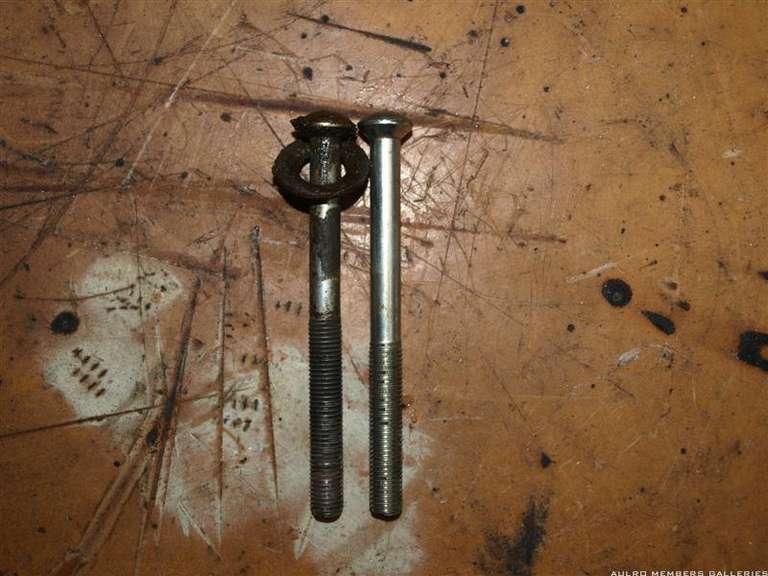

    You were on the money with that Brian. Here's the old and new side by side - old one has a lot more thread.



    I've swapped them over and now have enough adjustment to get the freeplay.

    I can also confirm that if you don't have any freeplay, the clutch can pump up and eventually start slipping as 460cixy said earlier

    Steve
    1985 County - Isuzu 4bd1 with HX30W turbo, LT95, 255/85-16 KM2's
    1988 120 with rust and potential
    1999 300tdi 130 single cab - "stock as bro"
    2003 D2a Td5 - the boss's daily drive
    Reply With Quote Reply With Quote
