Thread: 4BD1T says no - troubles starting

  1. 31st July 2014, 06:43 PM #1
    Mick_Marsh's Avatar
    Mick_Marsh
    Mick_Marsh is offline Swaggie
    Join Date
    Nov 2009
    Location
    Western Victoria
    Posts
    14,101
    Total Downloaded
    0

    4BD1T says no - troubles starting

    Ok guys. It's cold. It's wet. It's dark.
    I've never had trouble starting the Perentie before. Oh, it's usually been a bit warmer.
    This is my first foray into the dark world of diesel so a lot of things are new to me. Why am I unable to start the Perentie? It just turns over.
    Reply With Quote Reply With Quote
  2. 31st July 2014, 06:51 PM #2
    Bearman's Avatar
    Bearman
    Bearman is offline TopicToaster Gold Subscriber
    Join Date
    Jun 2006
    Location
    Hay Point
    Posts
    4,043
    Total Downloaded
    0
    Check the edic motor /fuel shut off is working Mick. That's the most likely cause of no start.
    Cheers......Brian
    1985 110 V8 County
    1998 110 Perentie GS Cargo 6X6 ARN 202516 (Brutus)
    Reply With Quote Reply With Quote
  3. 31st July 2014, 06:53 PM #3
    Mick_Marsh's Avatar
    Mick_Marsh
    Mick_Marsh is offline Swaggie
    Join Date
    Nov 2009
    Location
    Western Victoria
    Posts
    14,101
    Total Downloaded
    0
    Quote Originally Posted by Bearman View Post
    Check the edic motor /fuel shut off is working Mick. That's the most likely cause of no start.
    Where would I find that?
    Reply With Quote Reply With Quote
  4. 31st July 2014, 06:54 PM #4
    The ho har's's Avatar
    The ho har's
    The ho har's is offline LordRover Subscriber
    Join Date
    Jan 2007
    Location
    Logan Village area S.E. QLD
    Posts
    17,686
    Total Downloaded
    0
    I assume you know about the glow. The little light on the dash, usually looks a random spring. That is glow start. Turn the key on , wait till the light turns off and then start

    Mrs hh
    Series Landy Rescue

    Parts, welding, finger folding, Storage, Painting, Fabrication, Restorations,
    Our FB Page..
    https://www.facebook.com/SeriesLR?ref=bookmarks

    '51 80", Discovery 2, Defender 130, 101 FC + 20 other Land Rover vehicles
    Reply With Quote Reply With Quote
  5. 31st July 2014, 06:57 PM #5
    Mick_Marsh's Avatar
    Mick_Marsh
    Mick_Marsh is offline Swaggie
    Join Date
    Nov 2009
    Location
    Western Victoria
    Posts
    14,101
    Total Downloaded
    0
    Quote Originally Posted by The ho har's View Post
    I assume you know about the glow. The little light on the dash, usually looks a random spring. That is glow start. Turn the key on , wait till the light turns off and then start

    Mrs hh
    Ah! In the Perentie I thought it was the choke symbol. I also thought it was wait until it turns on.
    Off for another go.
    Reply With Quote Reply With Quote
  6. 31st July 2014, 07:01 PM #6
    The ho har's's Avatar
    The ho har's
    The ho har's is offline LordRover Subscriber
    Join Date
    Jan 2007
    Location
    Logan Village area S.E. QLD
    Posts
    17,686
    Total Downloaded
    0
    I have a better idea Mick, bring it here and I will sort it

    It well sit well the the 6x6 here

    Mrs hh
    Series Landy Rescue

    Parts, welding, finger folding, Storage, Painting, Fabrication, Restorations,
    Our FB Page..
    https://www.facebook.com/SeriesLR?ref=bookmarks

    '51 80", Discovery 2, Defender 130, 101 FC + 20 other Land Rover vehicles
    Reply With Quote Reply With Quote
  7. 31st July 2014, 07:01 PM #7
    Bigbjorn
    Bigbjorn is offline Swaggie Gold Subscriber
    Join Date
    Jul 2006
    Location
    Brisbane, Inner East.
    Posts
    11,178
    Total Downloaded
    0
    The 4BD1 series does not need glow plugs outside Antarctica. A diesel engine should start on the first firing stroke after injection commences. You need these things, fuel to the injection pump, compression, and injection at the correct time..
    URSUSMAJOR
    Reply With Quote Reply With Quote
  8. 31st July 2014, 07:24 PM #8
    steveG's Avatar
    steveG
    steveG is offline TopicToaster Subscriber
    Join Date
    Sep 2008
    Location
    Geelong, VIC
    Posts
    4,442
    Total Downloaded
    0
    Quote Originally Posted by Mick_Marsh View Post
    Where would I find that?
    On the top of the injection pump there are 2 levers with cables attached. One closest to the block is the throttle, and the one outboard is the shutoff lever.
    From memory, the run position for the shutoff lever is roughly parallel with the block (possibly closer to the block than parallel).
    When in the run position you should be able to move it away from the block against spring pressure to the shutoff position. The EDIC would normally pull it to shutoff.

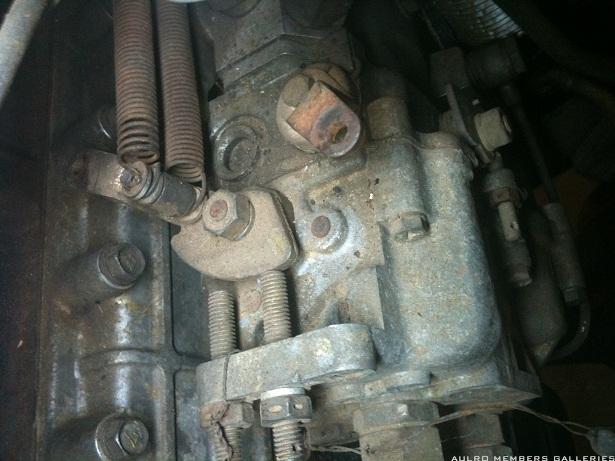

    Found a piccy. Shutoff is in the run position here (and the lever with the 2 return springs is throttle).



    Steve
    Last edited by steveG; 31st July 2014 at 07:29 PM. Reason: Added piccy
    1985 County - Isuzu 4bd1 with HX30W turbo, LT95, 255/85-16 KM2's
    1988 120 with rust and potential
    1999 300tdi 130 single cab - "stock as bro"
    2003 D2a Td5 - the boss's daily drive
    Reply With Quote Reply With Quote
  9. 31st July 2014, 07:27 PM #9
    Bearman's Avatar
    Bearman
    Bearman is offline TopicToaster Gold Subscriber
    Join Date
    Jun 2006
    Location
    Hay Point
    Posts
    4,043
    Total Downloaded
    0
    Quote Originally Posted by Mick_Marsh View Post
    Where would I find that?
    Look immediately under the air intake elbow on the drivers side. You should see a cable attached to the rear end of the fuel pump. Get someone to look when you switch the ignition on/off and see if it is moving. It may not be working and stuck in the off position,
    Cheers......Brian
    1985 110 V8 County
    1998 110 Perentie GS Cargo 6X6 ARN 202516 (Brutus)
    Reply With Quote Reply With Quote
  10. 31st July 2014, 07:29 PM #10
    Mick_Marsh's Avatar
    Mick_Marsh
    Mick_Marsh is offline Swaggie
    Join Date
    Nov 2009
    Location
    Western Victoria
    Posts
    14,101
    Total Downloaded
    0
    Quote Originally Posted by The ho har's View Post
    I have a better idea Mick, bring it here and I will sort it

    It well sit well the the 6x6 here

    Mrs hh
    Thankyou. Very nice offer.
    I was going to take you up on it but I'm having a little difficulty pushing it there. Queensland is up hill all the way from Victoria.
    Reply With Quote Reply With Quote
