Thread: Engine Swap - TD5 90 to .......LS1/6......?

  1. 19th August 2008, 08:08 PM #41
    ringtail525 Guest

    Engine swap

    When everyone has decided on which motor he should swap into the defender, I have a question.
    How much of the TD5 electrics have to be junked and what electrics have to be adapted to suit the new motor. I have a D2 TD5 and have had a gut full of injector looms, wheel sensors and 3 amigos.
    I would like to swap the motor for something simpler, do away with the traction control, throw the wabco abs unit away and re-route the brake lines back onto the master cylinder just like they used to be built.

    Ringtail
    Reply With Quote Reply With Quote
  2. 27th August 2008, 04:32 PM #42
    def-90's Avatar
    def-90
    def-90 is offline Master
    Join Date
    Jan 1970
    Posts
    399
    Total Downloaded
    0
    any further news pete?
    Reply With Quote Reply With Quote
  3. 27th August 2008, 04:39 PM #43
    cal415's Avatar
    cal415
    cal415 is offline ChatterBox Supporter
    Join Date
    Jan 1970
    Location
    Stockton, NSW
    Posts
    2,769
    Total Downloaded
    0
    Im still seriously considering this swap too, but i am looking at keeping it manual if i can. Anyone know if theres a LT95 to LS1 adapter available? i dont know how well the lt95 will stand up to the LS1 but could be a good option till i work out the gearbox side of things as i have found a few cheap LS1s i could get very soon.

    Reply With Quote Reply With Quote
  4. 27th August 2008, 05:42 PM #44
    long stroke's Avatar
    long stroke
    long stroke is offline TopicToaster Subscriber
    Join Date
    Oct 2007
    Location
    JUST NORTH OF COFFS HARBOUR NSW
    Posts
    4,178
    Total Downloaded
    0
    Quote Originally Posted by cal415 View Post
    Im still seriously considering this swap too, but i am looking at keeping it manual if i can. Anyone know if theres a LT95 to LS1 adapter available? i dont know how well the lt95 will stand up to the LS1 but could be a good option till i work out the gearbox side of things as i have found a few cheap LS1s i could get very soon.
    I think the lt95 would be fine, if not i think you can buy kits to strengthen them (the army ones are the stronger versions)

    TIM.
    Dads-
    http://www.aulro.com/afvb/members-ri...-progress.html

    Mine-
    http://www.aulro.com/afvb/members-ri...-progress.html

    Mums- stock 92 200tdi d1.
    Reply With Quote Reply With Quote
  5. 27th August 2008, 07:31 PM #45
    rovercare's Avatar
    rovercare
    rovercare is offline OldBushie
    Join Date
    Jan 1970
    Location
    Yinnar South, Vic
    Posts
    9,943
    Total Downloaded
    0
    Quote Originally Posted by cal415 View Post
    Im still seriously considering this swap too, but i am looking at keeping it manual if i can. Anyone know if theres a LT95 to LS1 adapter available? i dont know how well the lt95 will stand up to the LS1 but could be a good option till i work out the gearbox side of things as i have found a few cheap LS1s i could get very soon.
    You mean the LT95 is the ONLY rover box that will cope

    Its just a chev, bolt pattern is the same, need a flywheel and engine mounts as they're different pattern
    Reply With Quote Reply With Quote
  6. 27th August 2008, 10:52 PM #46
    cal415's Avatar
    cal415
    cal415 is offline ChatterBox Supporter
    Join Date
    Jan 1970
    Location
    Stockton, NSW
    Posts
    2,769
    Total Downloaded
    0
    Ok, so the chev adapter from the older chevs would work for ls1? so what flywheel/pressure plate/clutch plate combination would i need to use?

    Reply With Quote Reply With Quote
  7. 28th August 2008, 12:11 AM #47
    LOVEMYRANGIE's Avatar
    LOVEMYRANGIE
    LOVEMYRANGIE is offline YarnMaster
    Join Date
    Feb 2008
    Location
    Northern Windowlickersville WA
    Posts
    3,403
    Total Downloaded
    0
    Check out Marks 4WD and see if they have an adaptor kit for it.

    Marks 4wd Adaptors Home Page
    Reply With Quote Reply With Quote
  8. 28th August 2008, 08:40 AM #48
    81stubee
    81stubee is offline Master
    Join Date
    Jul 2006
    Location
    Ringwood VIC
    Posts
    407
    Total Downloaded
    0
    MY Mechanic looks after a 91 Classic Range, with an LS1 mated up to a either an R380 or LT77, can't remember which, probably the LT77 due to the age. He tows heaps with heavy loads, but doesn't race the car, and has seemed to stand up to that for 5 years. The conversion originally cost close to $20000

    At Least a manual is easier, i'm trying to work out how to make the Ls1 talk to the P38 Gearbox,


    Stu
    Reply With Quote Reply With Quote
  9. 29th August 2008, 07:10 PM #49
    davew's Avatar
    davew
    davew is offline Member
    Join Date
    Aug 2008
    Posts
    6
    Total Downloaded
    0
    Quote Originally Posted by 81stubee View Post
    At Least a manual is easier, i'm trying to work out how to make the Ls1 talk to the P38 Gearbox,
    Stu
    Not sure if it helps but CompuShift now have a version of their ECU that controls the ZF gearbox. A lot of people using them in the UK to fit the electronic ZF onto the back of TD5s, converting from manual to auto.

    Can't remember how independent the engine and gearbox ECUs are from the rest of the ECUs in the P38.
    Reply With Quote Reply With Quote
  10. 1st October 2008, 06:03 AM #50
    Psimpson7's Avatar
    Psimpson7
    Psimpson7 is offline TopicToaster
    Join Date
    Sep 2007
    Location
    Gold Coast
    Posts
    6,078
    Total Downloaded
    0
    Right, I am sort of back on this and have been looking at LS6 derivatives as they arent all the same in terms of ancillaries and overall sizes (other differences include sumps)

    I have found a 2004 CTS-V engine with 42k miles on for a decent price (although it is plus shipping and I am still waiting a quote on that - eek!)

    I am thinking the CTS-V version is more suited than the corvette one.

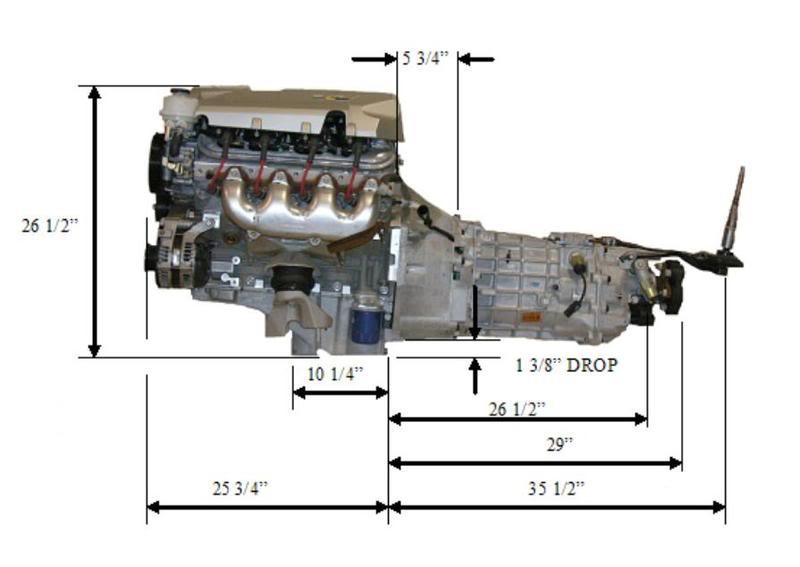

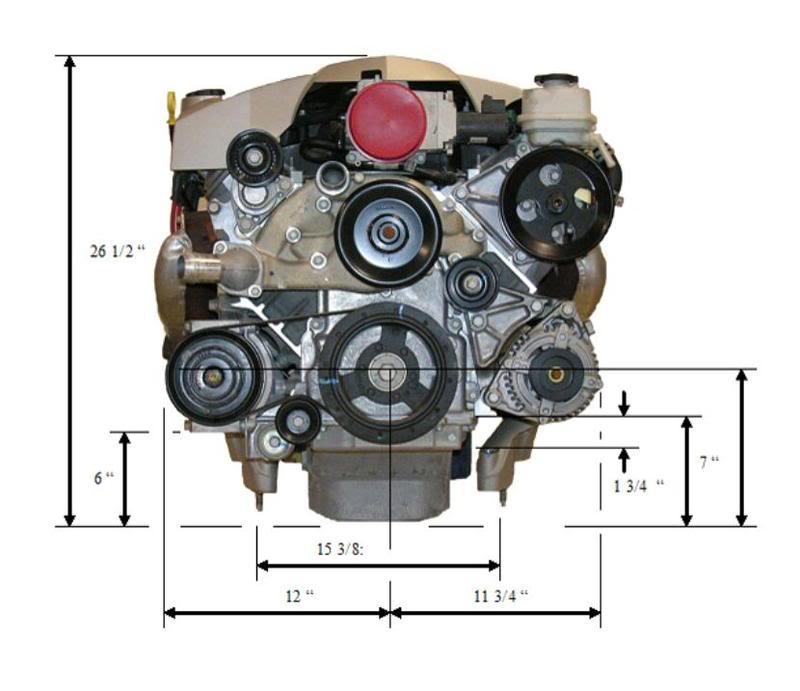

    Here is the CTS: The only downside I can see to this over the Corvette one lower down is the position of the alternator. can anyone else spot any potential dramas? I wouldn't be running aircon.

    Ignore the gearbox as thats the 6spd which we have already found to be too long.

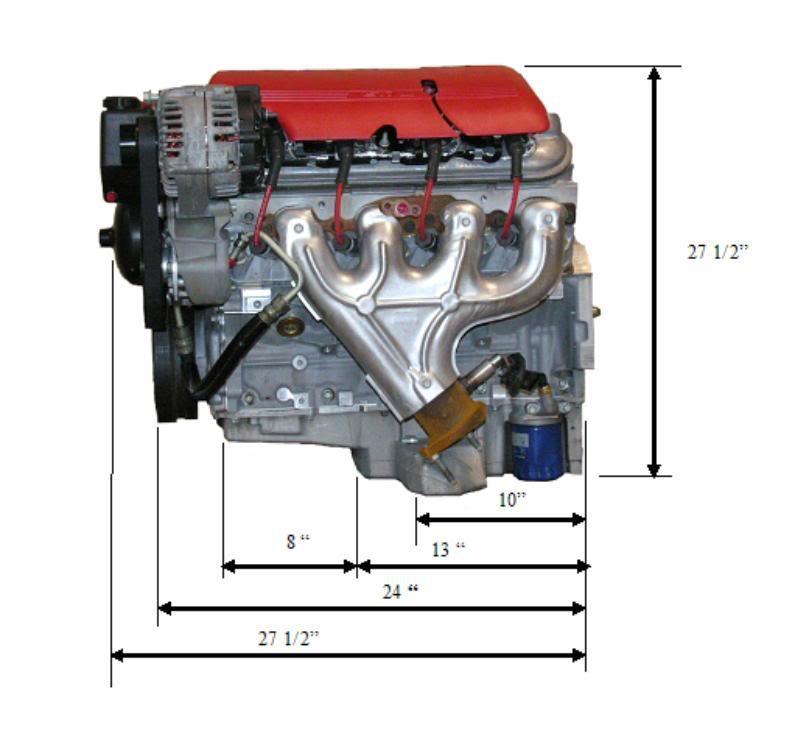

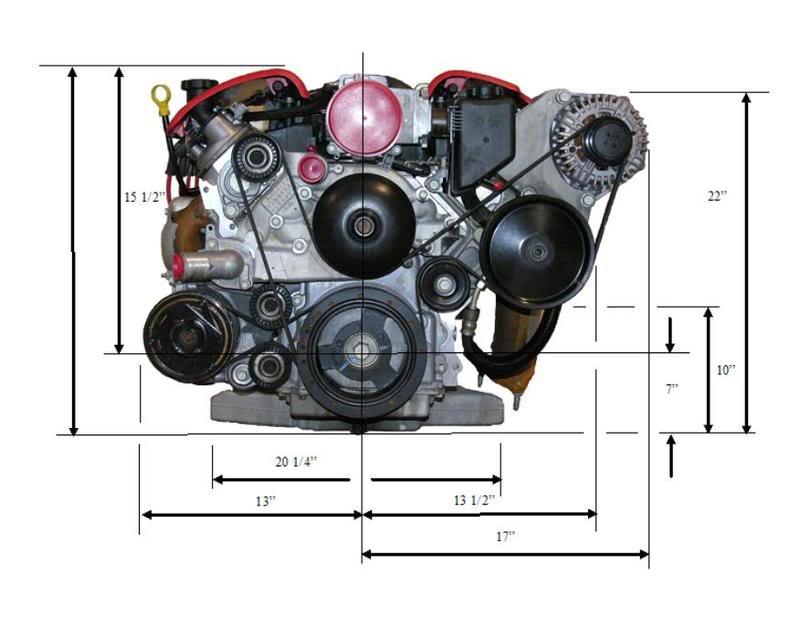

    and here it the corvette. Note the much wider stance caused by the sump and also the ancliiary positions.





    images found at LS6 Dimensions
    Reply With Quote Reply With Quote
