Thread: 2.25 head failure

  1. 31st July 2016, 07:21 PM #1
    Davehoos Guest

    2.25 head failure


    took the Ser3 for road worthy and have had a few failures.
    steering box and drag link.
    stop light and horn not working.
    poor brake performance.

    on the way home it died.
    quick strip down Friday arvo and then of to Newcastle to purchase parts.

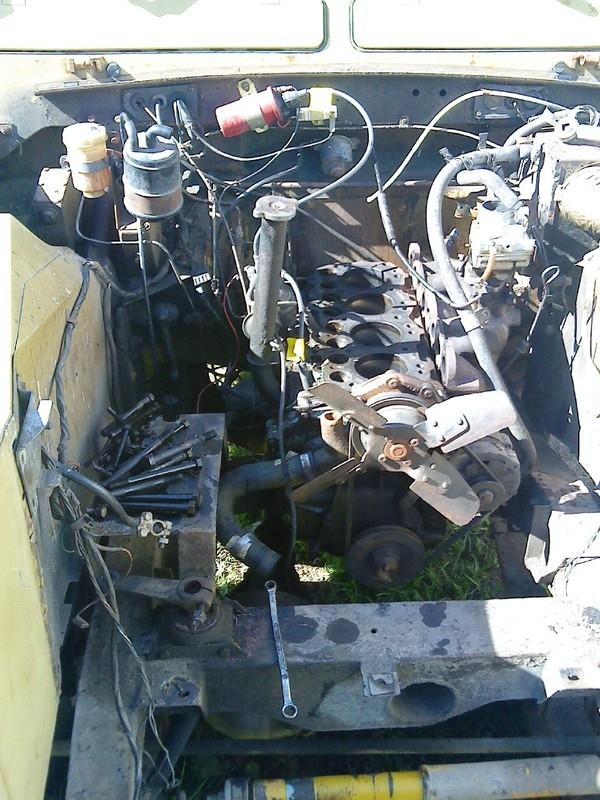

    Didn't know I had the cyl head problem until I removed the radiator to get at the drag link.


    old cyl head is a write off, I was worried about getting a replacement with out a core to exchange.


    core plug let go, but I think it was because of the big cracks in 3 cyls.

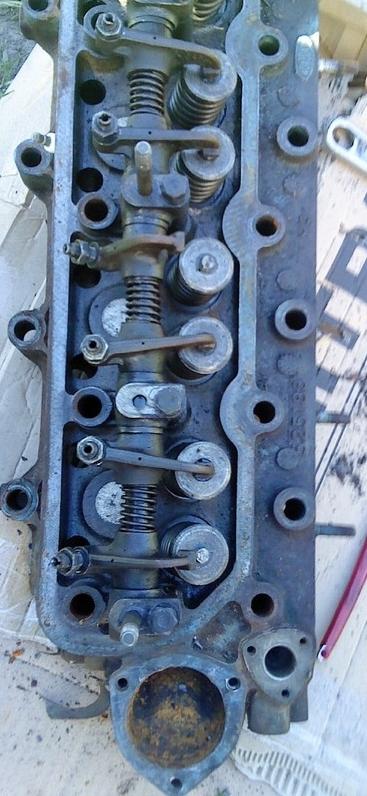

    New head from wrecker.

    almost back together Sunday 4 pm. started at 11 am after a sleep in.


    http://i141.photobucket.com/albums/r...psslicejt0.jpg
    .


    Wasn't planned but I thought I had better..


    Fitted brand new radiator tonight and ran it until it warmed up.
    Im over linning up the dozen+ mounting bolts.
    Wasn't able to fit the fan cowl as it does not line up with the new radiator, but there is more than enough air flow for my use.


    First time ive been able to adjust timing to factory settings and have the engine idle smooth. the exhaust now screams. Forgot to get a muffler but I did a big parts shop as it was. I have a lot of rewiring im planning.

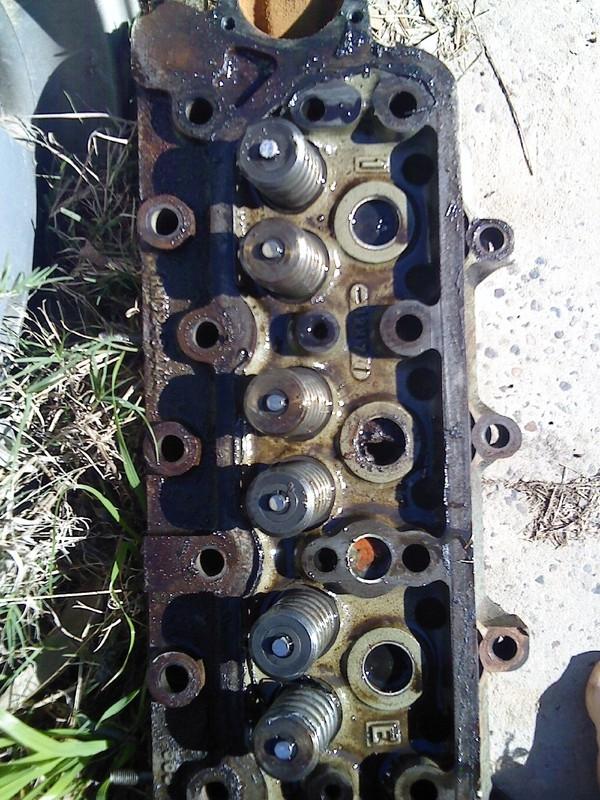

    I did a quick measure of the old head and the combustion chamber was more than 3 mm shallower than the replacement. Im guessing its had a lot of rides on the mill, judging by the cracks in the combustion chamber and exhaust port I guessing it wasn't looked at very well.
    it has 2 burnt intake valves and the very white valve shown on number 4.
    Reply With Quote Reply With Quote
  2. 31st July 2016, 09:21 PM #2
    mick88's Avatar
    mick88
    mick88 is offline Lord Jock
    Join Date
    Jan 1970
    Location
    Irymple, Victoria, Australia
    Posts
    2,902
    Total Downloaded
    0
    Good to see you have it sorted.


    Cheers, Mick.
    1974 S3 88 Holden 186.
    1971 S2A 88
    1971 S2A 109 6 cyl. tray back.
    1964 S2A 88 "Starfire Four" engine!
    1972 S3 88 x 2
    1959 S2 88 ARN 111-014
    1959 S2 88 ARN 111-556
    1988 Perentie 110 FFR ARN 48-728 steering now KLR PAS!
    REMLR 88
    1969 BSA Bantam B175
    Reply With Quote Reply With Quote
  3. 31st July 2016, 09:42 PM #3
    B.S.F.'s Avatar
    B.S.F.
    B.S.F. is offline Wizard
    Join Date
    Jul 2009
    Location
    S.E.Qld
    Posts
    1,401
    Total Downloaded
    0
    Looks like the " new" head has got 7:1 CR. Was the old one 8:1 ?
    .W.
    Reply With Quote Reply With Quote
  4. 1st August 2016, 05:42 AM #4
    JDNSW's Avatar
    JDNSW
    JDNSW is online now RoverLord Silver Subscriber
    Join Date
    Jan 1970
    Location
    Central West NSW
    Posts
    29,511
    Total Downloaded
    0
    Sounds like the old head was a 7:1 (early) head that had been over-skimmed, leaving insufficient metal, or, possibly could it have been frost damage?

    John
    John

    JDNSW
    1986 110 County 3.9 diesel
    1970 2a 109 2.25 petrol
    Reply With Quote Reply With Quote
  5. 1st August 2016, 06:11 AM #5
    Pedro_The_Swift's Avatar
    Pedro_The_Swift
    Pedro_The_Swift is offline The MOD Father
    Join Date
    May 2003
    Location
    On The Road
    Posts
    30,031
    Total Downloaded
    0
    Ok,, I'll ask
    How do you frost damage a head John?

    Quote Originally Posted by JDNSW View Post
    or, possibly could it have been frost damage?

    John
    "How long since you've visited The Good Oil?"

    '93 V8 Rossi
    '97 to '07. sold.
    '01 V8 D2
    '06 to 10. written off.
    '03 4.6 V8 HSE D2a with Tornado ECM
    '10 to '21
    '16.5 RRS SDV8
    '21 to Infinity and Beyond!

    1988 Isuzu Bus. V10 15L NA Diesel
    Home is where you park it..

    [IMG][/IMG]
    Reply With Quote Reply With Quote
  6. 1st August 2016, 10:51 AM #6
    JDNSW's Avatar
    JDNSW
    JDNSW is online now RoverLord Silver Subscriber
    Join Date
    Jan 1970
    Location
    Central West NSW
    Posts
    29,511
    Total Downloaded
    0
    Freezing weather and no antifreeze - mostly the block is damaged, but I suppose the head is possible. I think over skimming an early head and/or overheating are more likely though, possibly some time ago.

    John
    John

    JDNSW
    1986 110 County 3.9 diesel
    1970 2a 109 2.25 petrol
    Reply With Quote Reply With Quote
  7. 1st August 2016, 09:03 PM #7
    Davehoos Guest
    Reply With Quote Reply With Quote
  8. 1st August 2016, 09:25 PM #8
    Davehoos Guest

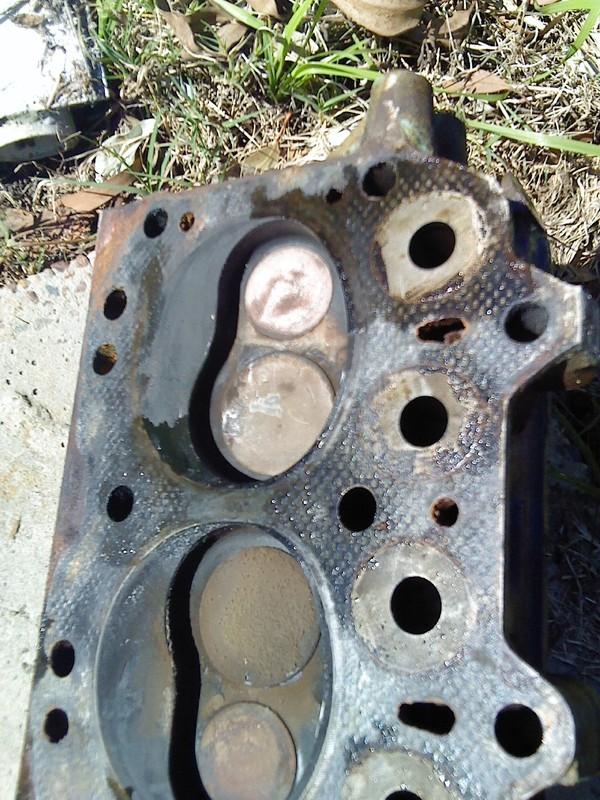

    you can see crack across no 4 between valves. similar but harder to see on no2.
    similar width crack across the center exhaust port. 3 head bolts had sign of exposure-looks like grinding sparks.


    I think they had long term over heating with this engine. Very common issue is that most locals expect engine issues with these, the old days you fitted a holden when you had a burnt valve.


    It has been hot once when brake line cut through the lower hose.but I think this damage was from years of no thermostat and manifold air leaks.
    have to measure the combustion chamber as it looks nothing like the replacement.


    when I got this it was choked with carbon -being driven short distance. It has 56K on it now.


    I replaced the carby and plugs when I got it. then when the hose burst I fitted a thermostat, and got the heater working. It lost a little coolant sometimes from the over flow but never from the radiator.
    Reply With Quote Reply With Quote
  9. 4th August 2016, 09:05 PM #9
    Davehoos Guest
    Discovered a contributing fault with the distributor.
    you can see it hiding behind the oil filler tube.


    it goes the wrong way----it has had a 25D clockwise distributor fitted.


    I purchased a new 45D replacement Till I can find a better unit down the track. I like the older adjustable vac advance unit.


    I might go down the programable path If I can be bothered.
    Reply With Quote Reply With Quote
  10. 5th August 2016, 05:58 AM #10
    JDNSW's Avatar
    JDNSW
    JDNSW is online now RoverLord Silver Subscriber
    Join Date
    Jan 1970
    Location
    Central West NSW
    Posts
    29,511
    Total Downloaded
    0
    Quote Originally Posted by Davehoos View Post
    Discovered a contributing fault with the distributor.
    you can see it hiding behind the oil filler tube.


    it goes the wrong way----it has had a 25D clockwise distributor fitted.


    I purchased a new 45D replacement Till I can find a better unit down the track. I like the older adjustable vac advance unit.
    That could well explain the long term overheating by itself - both the vacuum and centrifugal advance would presumably be retarding the ignition instead of advancing it.

    John
    John

    JDNSW
    1986 110 County 3.9 diesel
    1970 2a 109 2.25 petrol
    Reply With Quote Reply With Quote
