Thread: D2 DC joint, grease nipple angle

  1. 3rd January 2009, 07:13 PM #1
    Ricey's Avatar
    Ricey
    Ricey is offline Master
    Join Date
    Jun 2007
    Location
    Rodd Point, NSW
    Posts
    734
    Total Downloaded
    0

    D2 DC joint, grease nipple angle

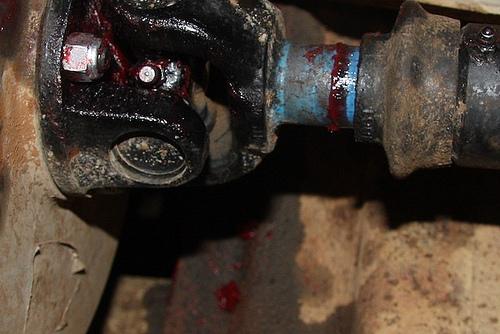

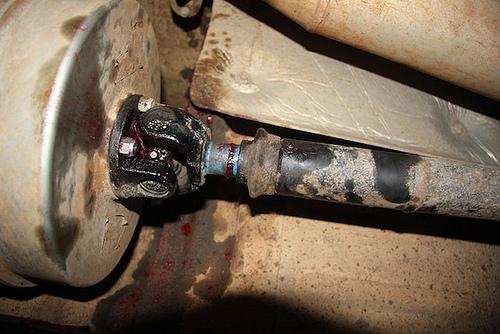

    I went to do some maintenance on the new rear prop shaft and one of the grease nipples is so close to the DC that I can't get the connection right to grease it. All the others are fine but this seems to be placed in the wrong spot. Any others had this problem or have I been sold a dodgy prop shaft?



    Reply With Quote Reply With Quote
  2. 3rd January 2009, 07:23 PM #2
    cucinadio's Avatar
    cucinadio
    cucinadio is offline ChatterBox
    Join Date
    Sep 2007
    Location
    Hervey Bay, Qld
    Posts
    2,641
    Total Downloaded
    0
    what brand of lub are you useing pete??
    Reply With Quote Reply With Quote
  3. 3rd January 2009, 07:30 PM #3
    djam1's Avatar
    djam1
    djam1 is offline ChatterBox
    Join Date
    Jan 1970
    Location
    Melrose SA
    Posts
    2,838
    Total Downloaded
    0
    I too have found this the unis are mounted backwards causing the issue
    Reply With Quote Reply With Quote
  4. 3rd January 2009, 07:31 PM #4
    Ricey's Avatar
    Ricey
    Ricey is offline Master
    Join Date
    Jun 2007
    Location
    Rodd Point, NSW
    Posts
    734
    Total Downloaded
    0
    Quote Originally Posted by cucinadio View Post
    what brand of lub are you useing pete??
    Hey Matt, it's Nulon xtreme performance from Autobahn.
    Reply With Quote Reply With Quote
  5. 3rd January 2009, 07:33 PM #5
    Ricey's Avatar
    Ricey
    Ricey is offline Master
    Join Date
    Jun 2007
    Location
    Rodd Point, NSW
    Posts
    734
    Total Downloaded
    0
    Quote Originally Posted by djam1 View Post
    I too have found this the unis are mounted backwards causing the issue
    So if I unbolt & rotate then I should be ok?
    Reply With Quote Reply With Quote
  6. 3rd January 2009, 10:08 PM #6
    langy's Avatar
    langy
    langy is offline Wizard
    Join Date
    Jan 1970
    Location
    Somewhere else, QLD
    Posts
    1,863
    Total Downloaded
    0
    Um, nope - he means that the replaceable uni joint itself was installed backwards. You can get extended nipples ( NO PUNS PLEASE) at Supercheap on the nuts and bolts display. You still have to rotate the joint anyway to get the max clearance which is usually facing away from the angle of said joint.
    Reply With Quote Reply With Quote
  7. 3rd January 2009, 10:14 PM #7
    Ricey's Avatar
    Ricey
    Ricey is offline Master
    Join Date
    Jun 2007
    Location
    Rodd Point, NSW
    Posts
    734
    Total Downloaded
    0
    Quote Originally Posted by langy View Post
    Um, nope - he means that the replaceable uni joint itself was installed backwards. You can get extended nipples ( NO PUNS PLEASE) at Supercheap on the nuts and bolts display. You still have to rotate the joint anyway to get the max clearance which is usually facing away from the angle of said joint.
    Excellent. I seriously didn't want to ask if extended nipples were available as I've been pushing the envelope recently. Much appreciated Langy
    Reply With Quote Reply With Quote
  8. 3rd January 2009, 10:27 PM #8
    tony's Avatar
    tony
    tony is offline AT REST
    Join Date
    Jan 1970
    Location
    S.W. Sydney
    Posts
    835
    Total Downloaded
    0
    Quote Originally Posted by Ricey View Post
    Excellent. I seriously didn't want to ask if extended nipples were available as I've been pushing the envelope recently. Much appreciated Langy


    Carn't you just wait for the weather to turn cooler...

    Thought you'd still be down the beach Pete ?
    Reply With Quote Reply With Quote
  9. 3rd January 2009, 10:29 PM #9
    Ricey's Avatar
    Ricey
    Ricey is offline Master
    Join Date
    Jun 2007
    Location
    Rodd Point, NSW
    Posts
    734
    Total Downloaded
    0
    Quote Originally Posted by tony View Post
    Carn't you just wait for the weather to turn cooler...

    Thought you'd still be down the beach Pete ?
    lmao! Didn't make it mate, gotta work tomorrow
    Reply With Quote Reply With Quote
  10. 4th January 2009, 09:20 AM #10
    Bigbjorn
    Bigbjorn is offline Swaggie Gold Subscriber
    Join Date
    Jul 2006
    Location
    Brisbane, Inner East.
    Posts
    11,178
    Total Downloaded
    0
    Longer grease nipples are readily available. Grease nipples come in a staggering range of sizes, shapes, angles, and threads. I have had to put longer ones on several vehicles over the years. Usually because the joint is closed up at the only location where one can get at it.
    URSUSMAJOR
    Reply With Quote Reply With Quote
