Thread: Isuzu MSA Gearbox to LT230

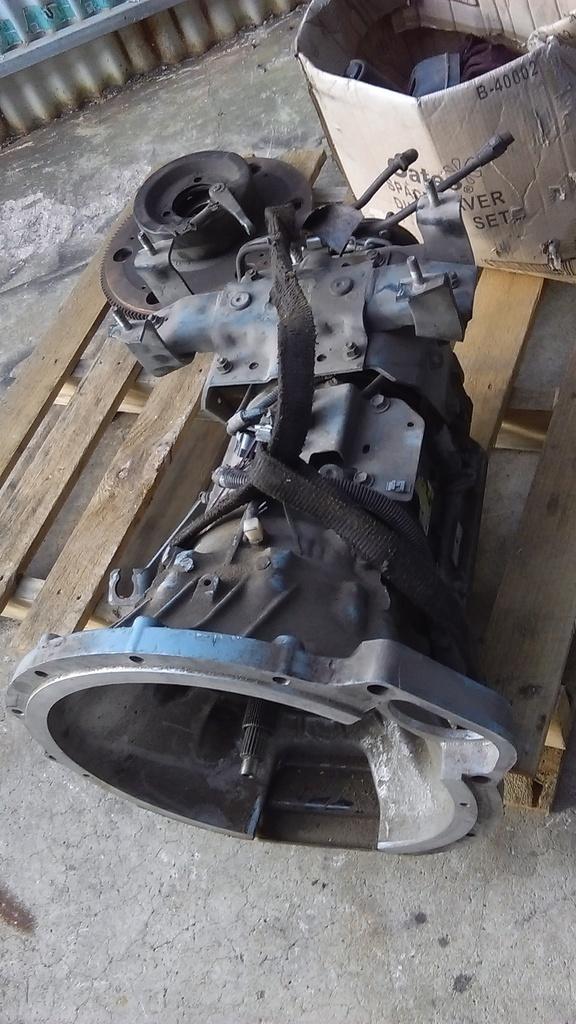

In the meantime, look what turned up....





Guess what it is??

Some material for your furnace...

6 speed isuzu?

Auto?

I know😊

Aisin AS68RC as found in Mitsubishi, UD, Isuzu and Dodge Ram trucks.

Nice.

Aisin AS68RC Ratios

1st


2nd


3rd


4th


5th


6th


R

3.74 : 1


1.96 : 1


1.34 : 1


1.00 : 1


0.77 : 1


0.63 : 1


3.54 : 1


Aisin AS68RC Specs

Transmission:


Aisin AS68RC

Type:


6 speed automatic double overdrive transmission

Manufacturer:


Aisin-Warner (Aisin Seiki Co., Ltd and BorgWarner joint venture)

Model Years/Applications:


2007.5 - 2012 model year Ram commercial truck (3500, 4500, 5500 chassis cab only)

Max Input Torque:


730 lb-ft

Max GCWR:


26,000 lbs

ATF Type/Spec:


MOPAR ASRC (previously AS68RC) or Mobil 3309 automatic transmission fluid

Features:


? Mobile and static power take-off (PTO) provisions

? Integrated Tow/Haul mode commands later upshifts and eliminates 6th gear (overdrive) from the shift schedule. Pressing the Tow/Haul switch a second time eliminates both 5th and 6th gears from the shift schedule.

? Uses dedicated transmission control module (TCM)

Well if anyone in vic decides to utilise the auto with programmable controller, I just ordered a dyno with road mode, which simulates typical road conditions, to any given, can pencil in trailer weight and all in simulation, incase they want auto trans tunes

Someone may as well be beta model for me, to practice tune capabilities, free auto tune for anyone willing to leave their vehicle for a week

Originally Posted by SheldonA

Aisin AS68RC as found in Mitsubishi, UD, Isuzu and Dodge Ram trucks.

So what sort of $$$ can a large grey box of evil like that be had for?

Are you looking at a generic Compushift sort of controller or is it possible to use/hack what was in the vehicle it came from?

Steve
