Thread: Anyone with CAD got spare time?

if i measure my sliders up who do i send the drawing to?

me if you like! I will pm you my email address.

Cheers
Pete

Originally Posted by Psimpson7

me if you like! I will pm you my email address.

Cheers
Pete

thanks mate....mays well make a start

they are not really for me, its more for the forum, it might be a good chance for input from others to refine them

Originally Posted by 5teve

i have a nice cheap laser cutter here in perth.. basically its a $60 minimum charge and it goes from there. Im pretty sure there are no setup fees... as i provide them with the DXF and they cut straight from that.. used them for stuff round the house in brushed stainless and struggled to get to the $60!

not a bad idea flat packing tho.. :O)

Thanks

Steve

can you PM me contact details... have a couple of projects I could use their help on

Cheers

Bojan

i did a sketch up of my sliders and emailed it to pete......there you we have a start

now i'm really keen on a tank for the passenger rear quarter if somebody can sketch up

just keeping the momentum going.....really need somebody with a rear quarter tank to do up a sketch

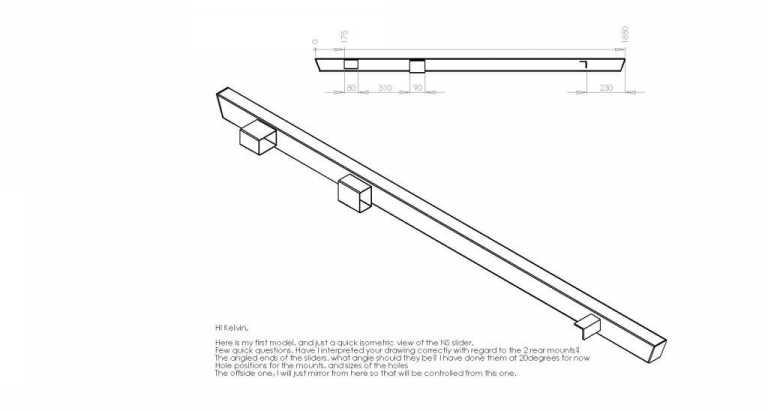

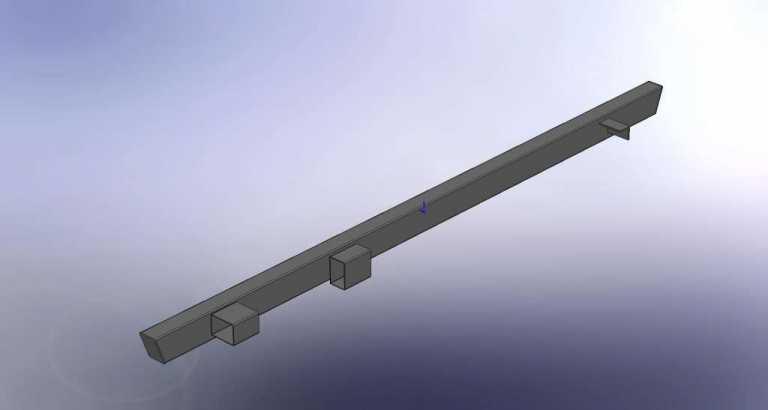

here is a sneak preview of the sketches of my slider that are being draw up........they are even better when you download a program called e drawings viewer, you can turn the object around, upside down, look at it end on etc

a few holes to be added and some fine tuning

any one got a drawing for sliders for a disco?, i wouldnt mind makin a set similer to the ones all range have

Some drawings or so would be great! nephew is aluminium and stainless whiz so really just need the drawings
Great work fellas,
Mary
