Reply With QuoteStill waiting on mine its been at the depot in melb since 5:30 am. I thought I'd get it today, Hopefully it will be tomorrow.
Master
Evo arrived today. 10 minutes from sending the registration email to having unlock codes and clearing ABS faults. Sweet.
Now I KNOW which wheel sensor is being stupid and why I am down on power.
The Body Computer software module is still under development by the looks of it, but there is supposed to be updated firmware comming out on Thursday. Upgrading is a matter of connecting a USB cable and copying the new files to the Evo. Simple as.
Only minor problem is clearance for the USB connector. The hole in the case is a little small, but easily fixed with a file and a phillips screwdriver. I have emailed Matia about it already.
More info to follow once I have the Body Computer firmware. Happy to answer any questions on functionality for anybody thinking of buying one. I am in Northern Adelaide suburbs if anybody wants a peek at one.
Master
Still waiting on mine its been at the depot in melb since 5:30 am. I thought I'd get it today, Hopefully it will be tomorrow.
Wizard
SubscriberWhenever soon is, it's not soon enoughOriginally Posted by Fluids
It says on the site that the new evolution model will come will all the existing functionality of the current Nanocom 1, and will be VIN free for the Deefer & Disco II Td5 ... it the goes on to say ...
"
and soon there will be new modules:
DISCOII PETROL V8
DISCOII AUTOGEARBOX
DISCOII SRS
These 3 modules will be available also for the NANOCOM series I (COM and US:
... available for existing Nanocom 1 units!!
YES! Auto gearbox ... hopefully, allowing adjustment of the torque converter lock-up speeds (lowering)
... holds breath ....
Kev..
2002 D2 4.6L V8 Auto SLS+2" ACE CDL Truetrac(F) Nanocom(V8 only)
Master
Can anyone do a OBD port test on there evo I'm getting an error on line 5.
you can find the test under NANOCOM>SETUP>OBD PORT TEST
Last edited by 999; 21st September 2010 at 06:43 PM. Reason: added info
Master
Mine is the same. Maybe flick Mattia an email ?Can anyone do a OBD port test on there evo I'm getting an error on line 5.
you can find the test under NANOCOM>SETUP>OBD PORT TEST
Communications seem to work. I wish there was a decent developers reference manual...
Master
Thanks maybe it's normal. I sent a question from there website regarding #5 line.
Have you created a restore file yet? Was the first thing I did, just in-case.

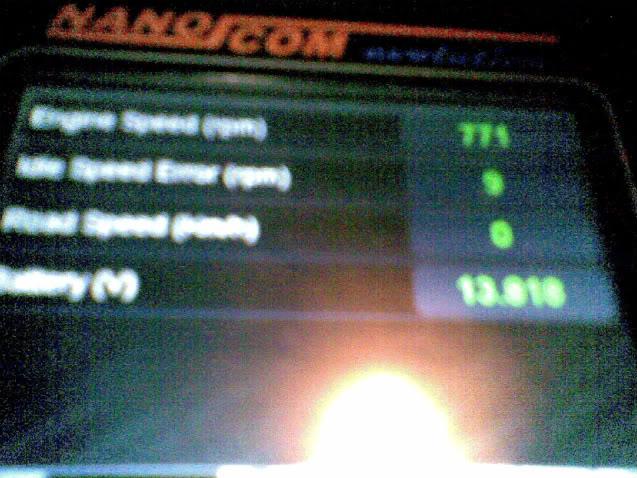

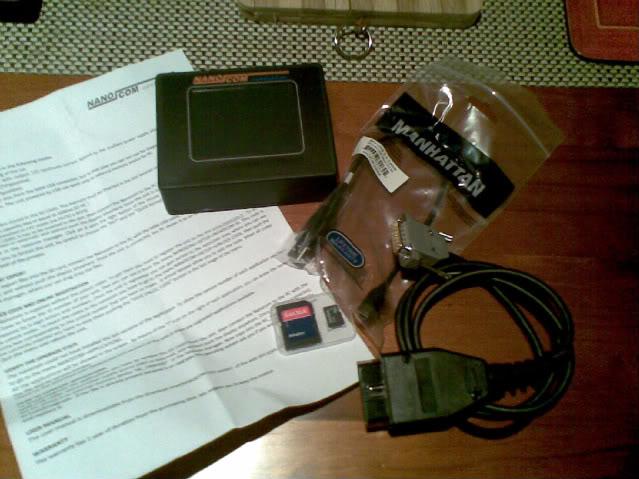

Here's a few photos of the unit.

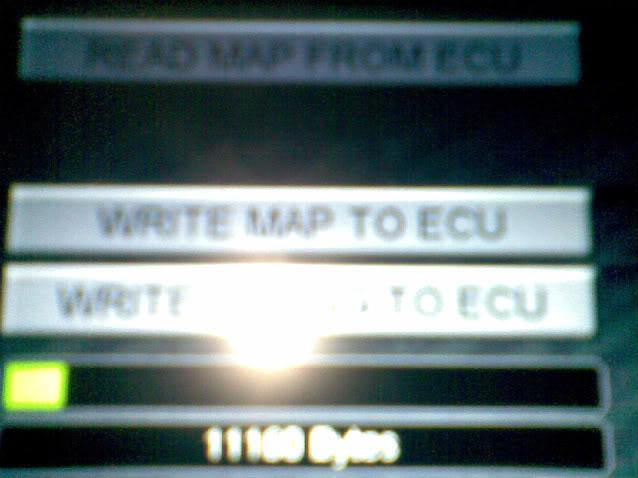

The last image is a shot of the EVO backing up the TD5 ECU MAP to a sd card.
Sorry about the picture quality but hey its a phone.
Master
Restore files were priority 1. Last thing I need to do is brick it.
I also made a raw backup of the complete file system. Did you have any issues with USB connector clearance ?
Can't believe how slow the file transfer was though. It is like the SD card is hanging off the end of a 56k modem.
First few items on my wish list is to be able to configure the Instrument display to show the half dozen readings I happen to care about and not the ones Mattia thinks are important. Having to flick between screens is a bit annoying.
Next on the wish list is logging of fuel flow. Integrated with time / distance etc gives a trip computer with pretty good accuracy. I used it al the time when I had the ScanGaugeII.
And finally (on the preliminary list anyway) is info on the external connector and some way to stream data too / from the connector
Master
I got a reply from Mattia about the OBD port tests (talk about a fast response)
So no need to worryHi,
The OBD port test has the pourpose to test the unit without the car. it send 10 bytes to the line OBD and it check if they get back. the OBD K lines are 1 wire so data sent can be also read. It is normal that the line 5 get error because this is a 2 wire line so to test it you have to short circuit 2 wire (the 11 and the 12)to allow the data sent to loop back.It is used in the air suspension of the P38.For discovery and Defender the line used are the 7 and the 8.
Regards
Mattia
Master
nanocom and laptops
Restore files were priority 1. Last thing I need to do is brick it.
I also made a raw backup of the complete file system. Did you have any issues with USB connector clearance ?
Can't believe how slow the file transfer was though. It is like the SD card is hanging off the end of a 56k modem.
First few items on my wish list is to be able to configure the Instrument display to show the half dozen readings I happen to care about and not the ones Mattia thinks are important. Having to flick between screens is a bit annoying.
Next on the wish list is logging of fuel flow. Integrated with time / distance etc gives a trip computer with pretty good accuracy. I used it al the time when I had the ScanGaugeII.
And finally (on the preliminary list anyway
This is all very interesting and I now wonder if a small laptop computer can be connected up to, or via the unit to facilitate using a larger screen than that of the nanocom itself?
Master
As far as I can tell, not easily. But I have not had a close look at the layout yet. The USB connector gives direct access to the file system on ( I think) a watchdog processor that holds the .hex files for all the other micro's. So firmware upgrades a a cinch.
This is all very interesting and I now wonder if a small laptop computer can be connected up to, or via the unit to facilitate using a larger screen than that of the nanocom itself?
There does not appear to be an easy way to talk directly to the micro that handles the display and touch screen.
