Thread: Flares on Discovery 1

If you look at my post you will see how i did my rear doors, i used pinch weld on the body and and some thick square rubber from clark rubber to seal the door gap using silicone as well.


Sent from my GT-I9300 using AULRO mobile app

Originally Posted by SSmith

See how the top of your front flare lines up with the fold in the panel. Line the back up with that.

I could but then the guards would be along way front the bottom of my door and i would have to cut a huge amount out of the door? Is this the norm?

I've got to try and find your post loanrangie. If you know where it is could you post a link?

Originally Posted by koaster

I could but then the guards would be along way front the bottom of my door and i would have to cut a huge amount out of the door? Is this the norm?

I've got to try and find your post loanrangie. If you know where it is could you post a link?

I can email some large pics if that helps, just pm me your email address.

Nick.

Originally Posted by koaster

I could but then the guards would be along way front the bottom of my door and i would have to cut a huge amount out of the door? Is this the norm?

I've got to try and find your post loanrangie. If you know where it is could you post a link?

In your last photo, the red line becomes the corner of the panel

Some pictures of mine. sitting on 285/75/r16 tyres on -25 rims
side view

door

Also see This thread in particular the link I provided towards the end.

So a big thank you to every that has helped me and answered all of my stupid questions!! I finally got the flares on and have ordered my tyres! I went with 16x7 -25mm offset and 265/75/16s. Nice and safe so rubbing or scrubbing.

Heres some pics of my flares and what i did incase anyone stumbles across this in the future. I also modified the rear right mud flap. I bent it so there was more clearance for the tyre but still protects the fuel pipe.

Heres the finished product.

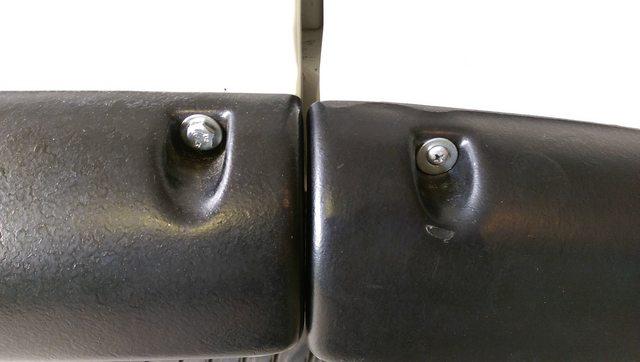

I used M6 bolts everywhere except on the rear doors because i couldnt get to the other side without removing the door trim and the sealers which would be another day just to get it to dry again. So i used Self Taper Screws.

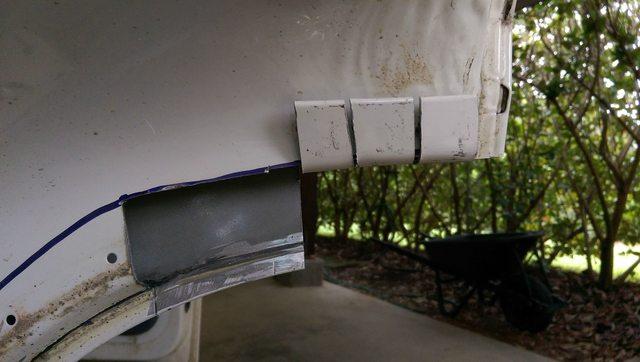

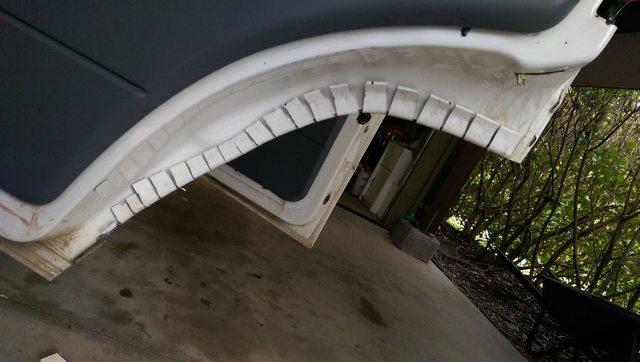

I did the trick that someone had posted in this thread with a few minor changes. I folded tabs over and riveted them back.

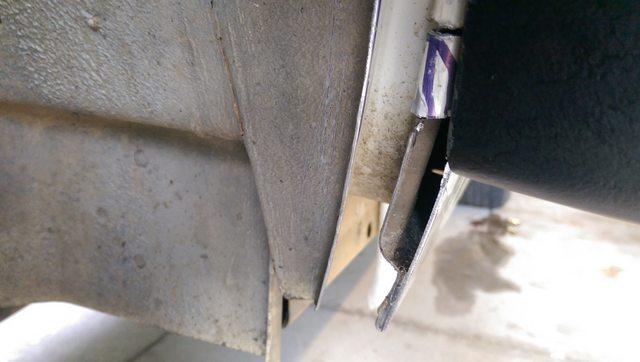

I need to get some silastic to fill this gap on each door.

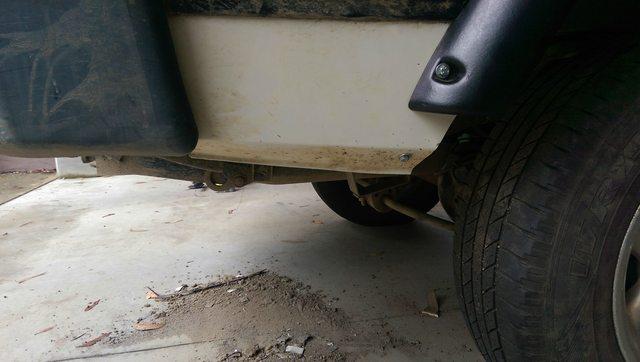

I am also thinking about trimming this panel to be horizontal with the bottom of the flare on each side.

Looks good. Will look a lot better with the new boots

I agree, trim that rear quater panel to be level with the bottom of the flare.

Sent from my GT-S7562L using AULRO mobile app

I'm surprised the flares dont reach the bottom of the guards , they are on straight right ?

Sent from my GT-I9300 using AULRO mobile app

They are, The ones on the i didnt want to make 100% straight / couldnt really because then i would be cutting far more than i am comfortable doing out of the doors. i could have fitted them so they would of reached the bottom but then they would actually hang lower than where the guard is so it would decrease my tyre clearance. I think that maybe ala-plast has just got the 3 door version and split the rear panels in half? Not quote sure but they are not a 100% fit but im still happy with them.
